NS-T2020

Bend Direction: Top Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 5–15 W/m
Warranty Years: 5 years

Overview

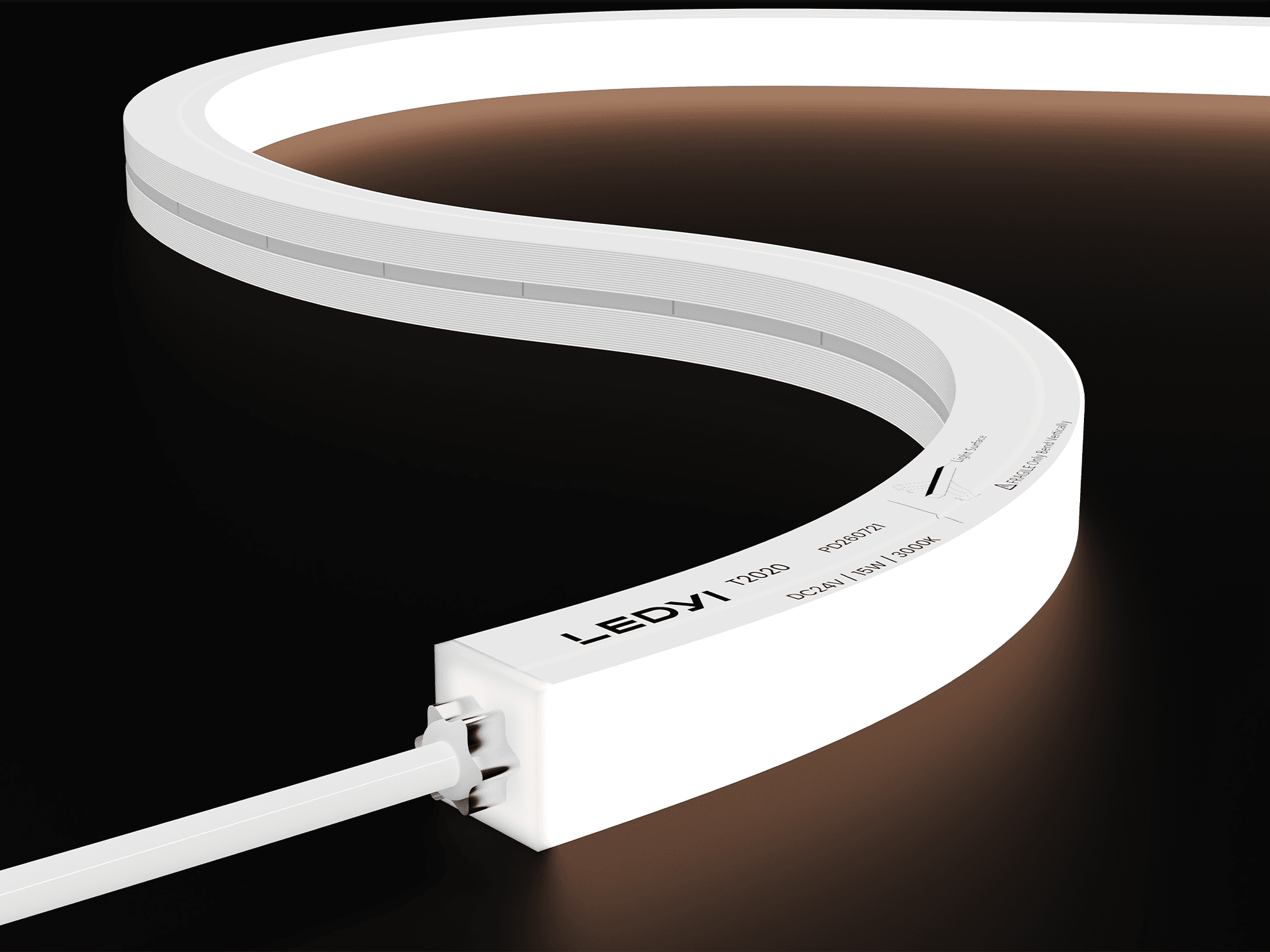

NS-T2020 is a top-bend silicone LED neon flex profile with a 20 mm by 20 mm cross section, DC 24 V input, and published single-color, tunable-white, RGB, RGBW, and DMX512 configurations. Its optical distribution structure produces a uniform illuminated surface without shadows. The integrated-extrusion Dow SILASTIC ET-7021 silicone housing combines high transparency and strength with IP67 resistance to salt solution, acids, alkalis, and UV.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NS-T2020, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "ns-t2020",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NS-T2020
Bend Direction	Top Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 4500K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

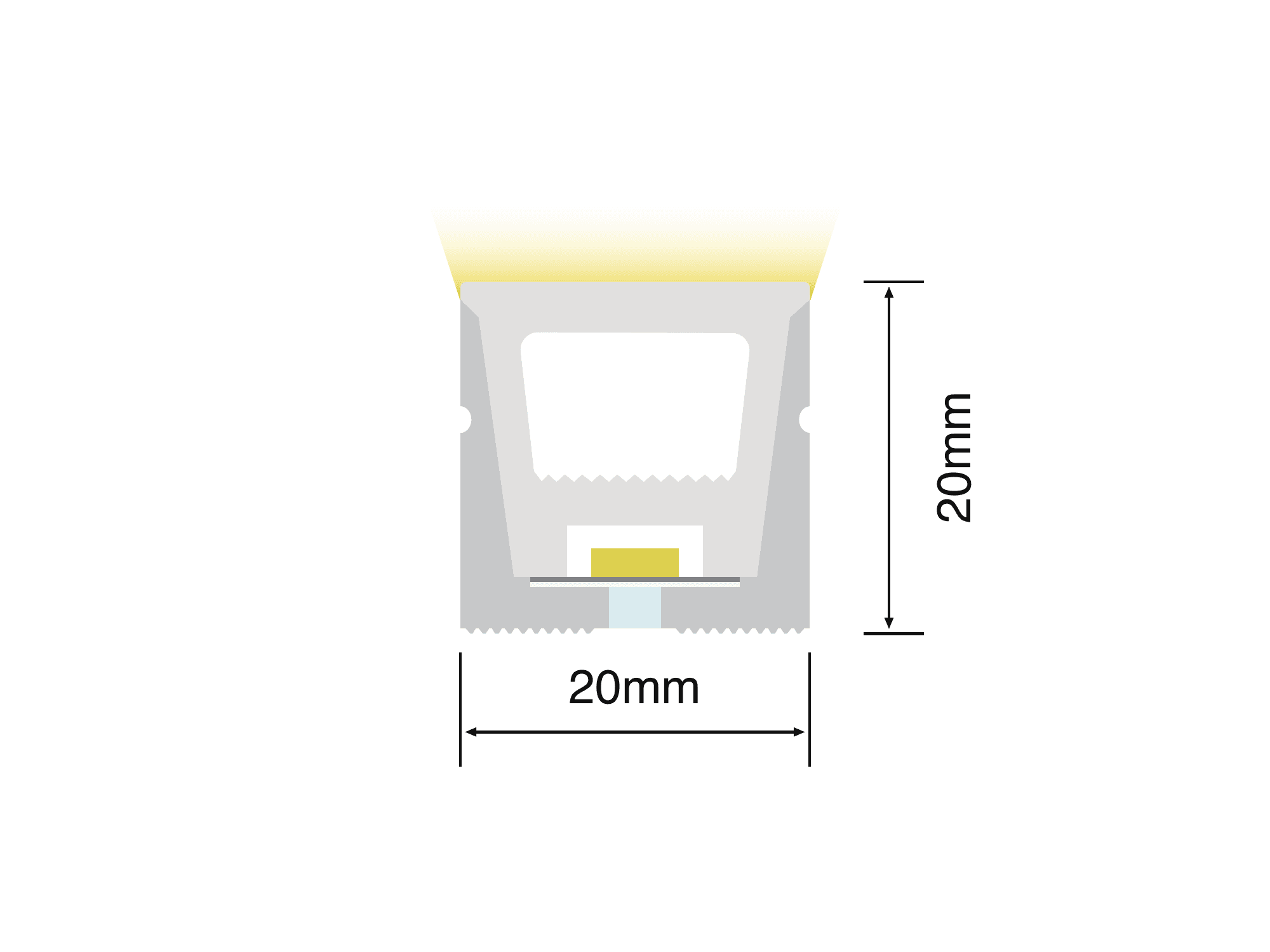

Cross Section Width	20 mm
Cross Section Height	20 mm
Power Options	5–15 W/m
Min Bend Diameter	200 mm
Max Run Length	5–35 m (configuration-specific)
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NS-T2020
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NS-T2020V24-CCx-C	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-T2020V24-CCx-C	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-T2020V24-CCx-C	DC 24 V	15 W/m	CC	—	White 1800K–6500K, 3 fixed colors	details ↓
4	NS-T2020V24-Ca-C (SMD2835)	DC 24 V	15 W/m	CV	—	White 2700K–6500K	details ↓
5	NS-T2020V24-Ca-C (SMD3014)	DC 24 V	15 W/m	CV	—	White 2700K–6500K	details ↓
6	NS-T2020V24-Crgb-C (SMD4040)	DC 24 V	15 W/m	CV	—	3 fixed colors, RGB	details ↓
7	NS-T2020V24-Crgb-C (SMD5050)	DC 24 V	15 W/m	CV	—	3 fixed colors, RGB	details ↓
8	NS-T2020V24-Crgbwx-C (SMD5050RGB+2835)	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
9	NS-T2020V24-Crgbwx-C (SMD5050RGBW 4in1)	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
10	NS-T2020V24-Crgb-UCS512C1L-8P-C	DC 24 V	12 W/m	CV	DMX512	3 fixed colors, RGB	details ↓
11	NS-T2020V24-Crgbwx-UCS512C1L-8P-C	DC 24 V	15 W/m	CV	DMX512	White 4500K, 3 fixed colors, RGBW	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NS-T2020V24-CCx-C — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-T2020V24-CCx-C — 5 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	220 lm/m	44.1 lm/W	50 mm	27 m
2100K (+150/−150 K)	—	CRI ≥90	241 lm/m	48.3 lm/W	50 mm	27 m
2400K (+150/−150 K)	—	CRI ≥90	256 lm/m	51.2 lm/W	50 mm	27 m
2700K (+150/−150 K)	—	CRI ≥90	269 lm/m	53.9 lm/W	50 mm	27 m
3000K (+150/−150 K)	—	CRI ≥90	284 lm/m	56.7 lm/W	50 mm	27 m
3500K (+200/−200 K)	—	CRI ≥90	273 lm/m	54.6 lm/W	50 mm	27 m
4000K (+400/−200 K)	—	CRI ≥90	275 lm/m	54.9 lm/W	50 mm	27 m
5000K (+500/−300 K)	—	CRI ≥90	274 lm/m	54.7 lm/W	50 mm	27 m
6500K (+500/−500 K)	—	CRI ≥90	283 lm/m	56.6 lm/W	50 mm	27 m
—	Red	—	114 lm/m	22.8 lm/W	50 mm	35 m
—	Green	—	329 lm/m	65.8 lm/W	50 mm	27 m
—	Blue	—	58 lm/m	11.7 lm/W	50 mm	27 m
—	Yellow	—	86 lm/m	17.2 lm/W	50 mm	35 m
—	Orange	—	104 lm/m	20.8 lm/W	50 mm	35 m
—	Pink	—	245 lm/m	49.1 lm/W	50 mm	27 m

NS-T2020V24-CCx-C — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-T2020V24-CCx-C — 10 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	420 lm/m	42 lm/W	50 mm	18 m
2100K (+150/−150 K)	—	CRI ≥90	460 lm/m	46 lm/W	50 mm	18 m
2400K (+150/−150 K)	—	CRI ≥90	490 lm/m	49 lm/W	50 mm	18 m
2700K (+150/−150 K)	—	CRI ≥90	513 lm/m	51.3 lm/W	50 mm	18 m
3000K (+150/−150 K)	—	CRI ≥90	542 lm/m	54.2 lm/W	50 mm	18 m
3500K (+200/−200 K)	—	CRI ≥90	520 lm/m	52 lm/W	50 mm	18 m
4000K (+400/−200 K)	—	CRI ≥90	529 lm/m	52.9 lm/W	50 mm	18 m
5000K (+500/−300 K)	—	CRI ≥90	526 lm/m	52.6 lm/W	50 mm	18 m
6500K (+500/−500 K)	—	CRI ≥90	545 lm/m	54.5 lm/W	50 mm	18 m
—	Red	—	228 lm/m	22.8 lm/W	50 mm	18 m
—	Green	—	547 lm/m	54.7 lm/W	50 mm	16 m
—	Blue	—	111 lm/m	11.1 lm/W	50 mm	18 m
—	Yellow	—	176 lm/m	17.6 lm/W	50 mm	18 m
—	Orange	—	225 lm/m	22.5 lm/W	50 mm	18 m
—	Pink	—	471 lm/m	47.1 lm/W	50 mm	18 m

NS-T2020V24-CCx-C — 15 W/m — CC

Max ambient: 35 °C · Outputs: White 1800K–6500K, 3 fixed colors

Photometric data — NS-T2020V24-CCx-C — 15 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	601 lm/m	40.1 lm/W	50 mm	12 m
2100K (+150/−150 K)	—	CRI ≥90	658 lm/m	43.9 lm/W	50 mm	12 m
2400K (+150/−150 K)	—	CRI ≥90	707 lm/m	47.1 lm/W	50 mm	12 m
2700K (+150/−150 K)	—	CRI ≥90	734 lm/m	48.9 lm/W	50 mm	12 m
3000K (+150/−150 K)	—	CRI ≥90	783 lm/m	52.2 lm/W	50 mm	12 m
3500K (+200/−200 K)	—	CRI ≥90	744 lm/m	49.6 lm/W	50 mm	12 m
4000K (+400/−200 K)	—	CRI ≥90	769 lm/m	51.2 lm/W	50 mm	12 m
5000K (+500/−300 K)	—	CRI ≥90	762 lm/m	50.8 lm/W	50 mm	12 m
6500K (+500/−500 K)	—	CRI ≥90	791 lm/m	52.7 lm/W	50 mm	12 m
—	Green	—	706 lm/m	47.1 lm/W	50 mm	10 m
—	Blue	—	154 lm/m	10.3 lm/W	50 mm	12 m
—	Pink	—	678 lm/m	45.2 lm/W	50 mm	12 m

NS-T2020V24-Ca-C (SMD2835) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K

Photometric data — NS-T2020V24-Ca-C (SMD2835) — 15 W/m — CV
Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	7.5 W/m	383 lm/m	51 lm/W	62.5 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	7.5 W/m	402 lm/m	53.6 lm/W	62.5 mm	5 m
Full output	—	CRI ≥90	15 W/m	779 lm/m	51.9 lm/W	62.5 mm	5 m

NS-T2020V24-Ca-C (SMD3014) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K

Photometric data — NS-T2020V24-Ca-C (SMD3014) — 15 W/m — CV
Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	7.5 W/m	365 lm/m	48.7 lm/W	50 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	7.5 W/m	394 lm/m	52.5 lm/W	50 mm	5 m
Full output	—	CRI ≥90	15 W/m	755 lm/m	50.3 lm/W	50 mm	5 m

NS-T2020V24-Crgb-C (SMD4040) — 15 W/m — CV

Max ambient: 35 °C · Outputs: 3 fixed colors, RGB

Photometric data — NS-T2020V24-Crgb-C (SMD4040) — 15 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	5 W/m	91 lm/m	18.1 lm/W	62.5 mm	5 m
Single channel	Green	5 W/m	247 lm/m	49.3 lm/W	62.5 mm	5 m
Single channel	Blue	5 W/m	46 lm/m	9.2 lm/W	62.5 mm	5 m
Full output	—	15 W/m	374 lm/m	24.9 lm/W	62.5 mm	5 m

NS-T2020V24-Crgb-C (SMD5050) — 15 W/m — CV

Max ambient: 35 °C · Outputs: 3 fixed colors, RGB

Photometric data — NS-T2020V24-Crgb-C (SMD5050) — 15 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	5 W/m	89 lm/m	17.8 lm/W	83.3 mm	5 m
Single channel	Green	5 W/m	292 lm/m	58.3 lm/W	83.3 mm	5 m
Single channel	Blue	5 W/m	51 lm/m	10.2 lm/W	83.3 mm	5 m
Full output	—	15 W/m	416 lm/m	27.7 lm/W	83.3 mm	5 m

NS-T2020V24-Crgbwx-C (SMD5050RGB+2835) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Photometric data — NS-T2020V24-Crgbwx-C (SMD5050RGB+2835) — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.8 W/m	69 lm/m	18.3 lm/W	83.3 mm	5 m
Single channel	—	Green	—	3.8 W/m	243 lm/m	64.7 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	3.8 W/m	46 lm/m	12.2 lm/W	83.3 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	3.8 W/m	217 lm/m	57.8 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	581 lm/m	38.7 lm/W	83.3 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	3.8 W/m	228 lm/m	60.7 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	594 lm/m	39.6 lm/W	83.3 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥90	3.8 W/m	222 lm/m	59.3 lm/W	83.3 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	591 lm/m	39.4 lm/W	83.3 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	3.8 W/m	225 lm/m	59.9 lm/W	83.3 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	588 lm/m	39.2 lm/W	83.3 mm	5 m

NS-T2020V24-Crgbwx-C (SMD5050RGBW 4in1) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Photometric data — NS-T2020V24-Crgbwx-C (SMD5050RGBW 4in1) — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.8 W/m	61 lm/m	16.2 lm/W	62.5 mm	5 m
Single channel	—	Green	—	3.8 W/m	142 lm/m	37.8 lm/W	62.5 mm	5 m
Single channel	—	Blue	—	3.8 W/m	43 lm/m	11.5 lm/W	62.5 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥80	3.8 W/m	172 lm/m	45.8 lm/W	62.5 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	425 lm/m	28.3 lm/W	62.5 mm	5 m
Single channel	—	Red	—	3.8 W/m	67 lm/m	17.8 lm/W	62.5 mm	5 m
Single channel	—	Green	—	3.8 W/m	161 lm/m	42.9 lm/W	62.5 mm	5 m
Single channel	—	Blue	—	3.8 W/m	47 lm/m	12.4 lm/W	62.5 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥80	3.8 W/m	165 lm/m	43.9 lm/W	62.5 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	407 lm/m	27.1 lm/W	62.5 mm	5 m
Single channel	4000K (+300/−300 K)	—	CRI ≥80	3.8 W/m	186 lm/m	49.6 lm/W	62.5 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	447 lm/m	29.8 lm/W	62.5 mm	5 m
Single channel	6500K (+400/−400 K)	—	CRI ≥80	3.8 W/m	191 lm/m	50.8 lm/W	62.5 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	455 lm/m	30.3 lm/W	62.5 mm	5 m

NS-T2020V24-Crgb-UCS512C1L-8P-C — 12 W/m — CV

Max ambient: — · Outputs: 3 fixed colors, RGB

Photometric data — NS-T2020V24-Crgb-UCS512C1L-8P-C — 12 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	Red	5 W/m	42 lm/m	8.3 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	Green	5 W/m	156 lm/m	31.2 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	Blue	5 W/m	27 lm/m	5.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	—	12 W/m	224 lm/m	18.7 lm/W	125 mm	7 m	8 px/m	UCS512C1L

NS-T2020V24-Crgbwx-UCS512C1L-8P-C — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 4500K, 3 fixed colors, RGBW

Photometric data — NS-T2020V24-Crgbwx-UCS512C1L-8P-C — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	—	Red	—	5 W/m	37 lm/m	7.3 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Green	—	5 W/m	111 lm/m	22.1 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Blue	—	5 W/m	27 lm/m	5.3 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	4500K (+300/−300 K)	—	CRI ≥80	5 W/m	126 lm/m	25.1 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	White channel: 4500K	—	—	15 W/m	302 lm/m	20.1 lm/W	125 mm	7 m	8 px/m	UCS512C1L
