NS-R16

Last updated: 2026-08-13

Bend Direction	Top Bend
IP Rating	IP67
Input Voltage	DC 24 V
Power Options	10–12.5 W/m
Warranty Years	5 years

Request a Quote Downloads

About NS-R16

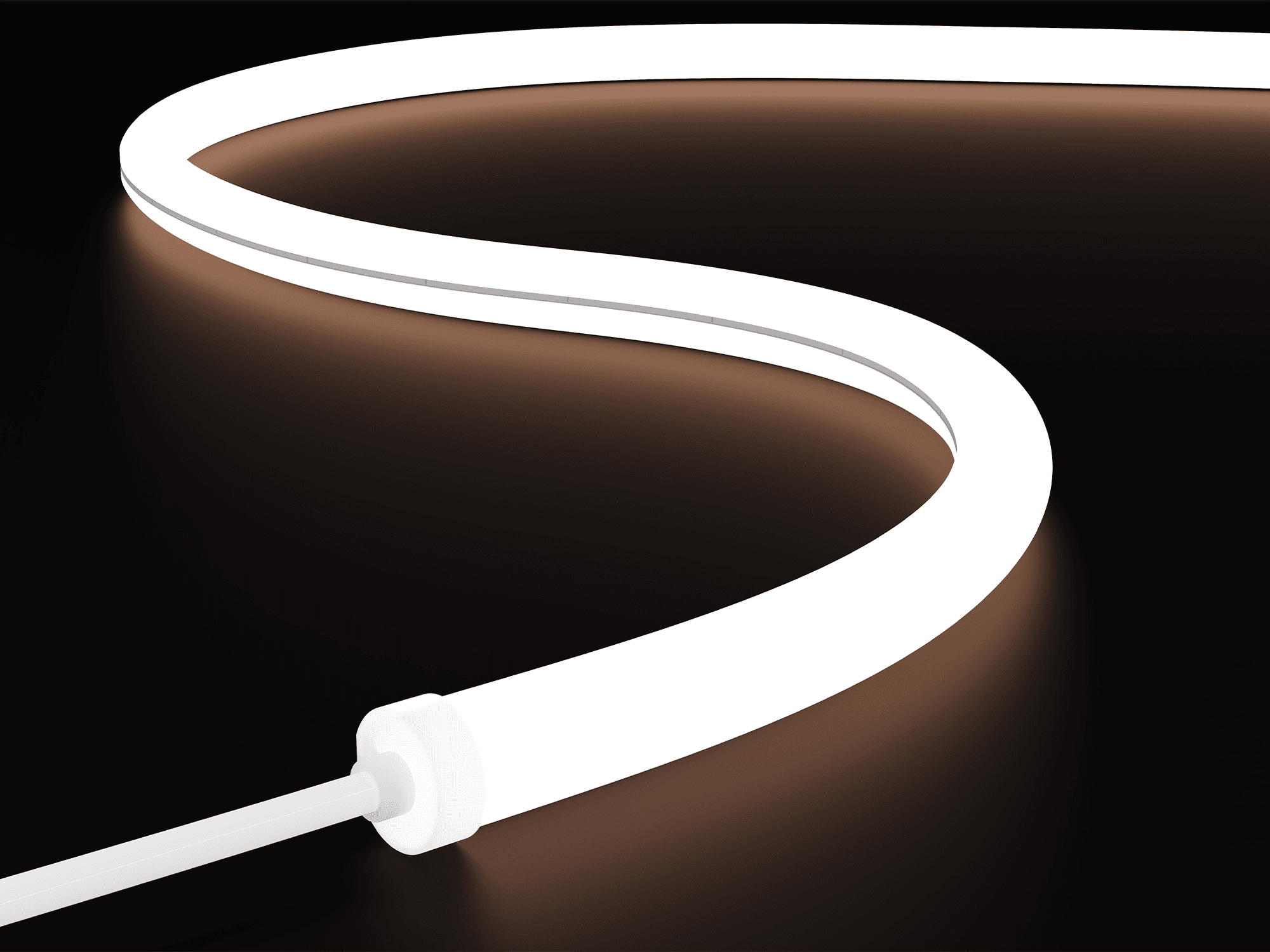

NS-R16 is a top-bend silicone LED neon flex profile with a 16 mm by 15.5 mm cross section, DC 24 V input, and published single-color, tunable-white, RGB, and SPI configurations. Its optical distribution structure provides a uniform illuminated surface without shadows around the circular profile. The integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high transparency and strength, with IP67 resistance to salt solution, acids, alkalis, and UV.

NS-R16 Specifications

Specifications for NS-R16
Bend Direction	Top Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Pink
Input Voltage	DC 24 V

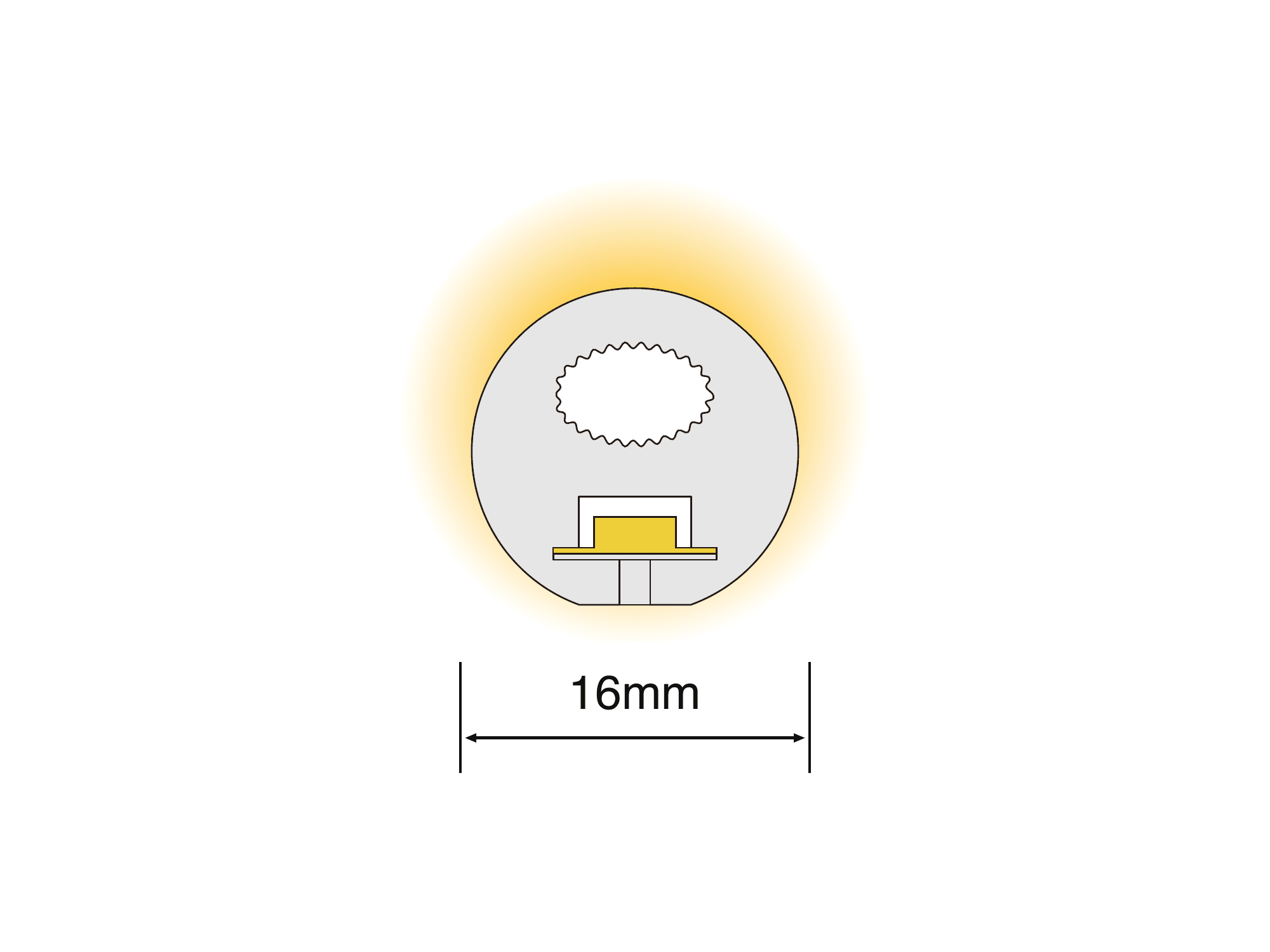

Cross Section Width	16 mm
Cross Section Height	15.5 mm
Power Options	10–12.5 W/m
Min Bend Diameter	200 mm
Max Run Length	up to 17 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

NS-R16 Ordering Information

Ordering information for NS-R16
#	Ordering Code	Input	Power	Drive	Protocol	Outputs
1	NS-R16V24-CCx-A	DC 24 V	10 W/m	CC	—	White 2100K–6500K, 5 fixed colors	details ↓
2	NS-R16V24-Ca-A	DC 24 V	10 W/m	CV	—	White 2700K–6500K	details ↓
3	NS-R16V24-Crgb-A	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓
4	NS-R16V24-Crgb-WS2811-10P-A	DC 24 V	12.5 W/m	—	SPI	3 fixed colors, RGB	details ↓

Ordering codes are order templates — one code may cover several power variants. Each configuration below is one sellable combination.

NS-R16 Photometric Data

NS-R16V24-CCx-A — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 2100K–6500K, 5 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
2100K (+150/−150 K)	—	CRI ≥90	560 lm/m	56 lm/W	50 mm	13 m
2400K (+150/−150 K)	—	CRI ≥90	590 lm/m	59 lm/W	50 mm	13 m
2700K (+150/−150 K)	—	CRI ≥90	660 lm/m	66 lm/W	50 mm	13 m
3000K (+150/−150 K)	—	CRI ≥90	650 lm/m	65 lm/W	50 mm	13 m
3500K (+200/−200 K)	—	CRI ≥90	630 lm/m	63 lm/W	50 mm	13 m
4000K (+400/−200 K)	—	CRI ≥90	700 lm/m	70 lm/W	50 mm	13 m
5000K (+500/−300 K)	—	CRI ≥90	730 lm/m	73 lm/W	50 mm	13 m
6500K (+500/−500 K)	—	CRI ≥90	730 lm/m	73 lm/W	50 mm	13 m
—	Red	—	310 lm/m	31 lm/W	50 mm	17 m
—	Green	—	780 lm/m	78 lm/W	50 mm	13 m
—	Blue	—	160 lm/m	16 lm/W	50 mm	13 m
—	Yellow	—	240 lm/m	24 lm/W	50 mm	17 m
—	Pink	—	330 lm/m	33 lm/W	50 mm	13 m

NS-R16V24-Ca-A — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 2700K–6500K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	5 W/m	365 lm/m	73 lm/W	50 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	5 W/m	375 lm/m	75 lm/W	50 mm	5 m
Full output	—	CRI ≥90	10 W/m	730 lm/m	73 lm/W	50 mm	5 m

NS-R16V24-Crgb-A — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	75 lm/m	23 lm/W	50 mm	5 m
Single channel	Green	3.3 W/m	231 lm/m	70 lm/W	50 mm	5 m
Single channel	Blue	3.3 W/m	46 lm/m	14 lm/W	50 mm	5 m
Full output	—	10 W/m	350 lm/m	35 lm/W	50 mm	5 m

NS-R16V24-Crgb-WS2811-10P-A — 12.5 W/m — SPI

Max ambient: — · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	Red	4.8 W/m	69 lm/m	14.4 lm/W	100 mm	5 m	10 px/m	WS2811
Single channel	Green	4.8 W/m	219 lm/m	45.6 lm/W	100 mm	5 m	10 px/m	WS2811
Single channel	Blue	4.8 W/m	41 lm/m	8.5 lm/W	100 mm	5 m	10 px/m	WS2811
Full output	—	12.5 W/m	294 lm/m	23.5 lm/W	100 mm	5 m	10 px/m	WS2811
