NS-3D1617

Bend Direction: 3D Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 4.8–15 W/m
Warranty Years: 5 years

Overview

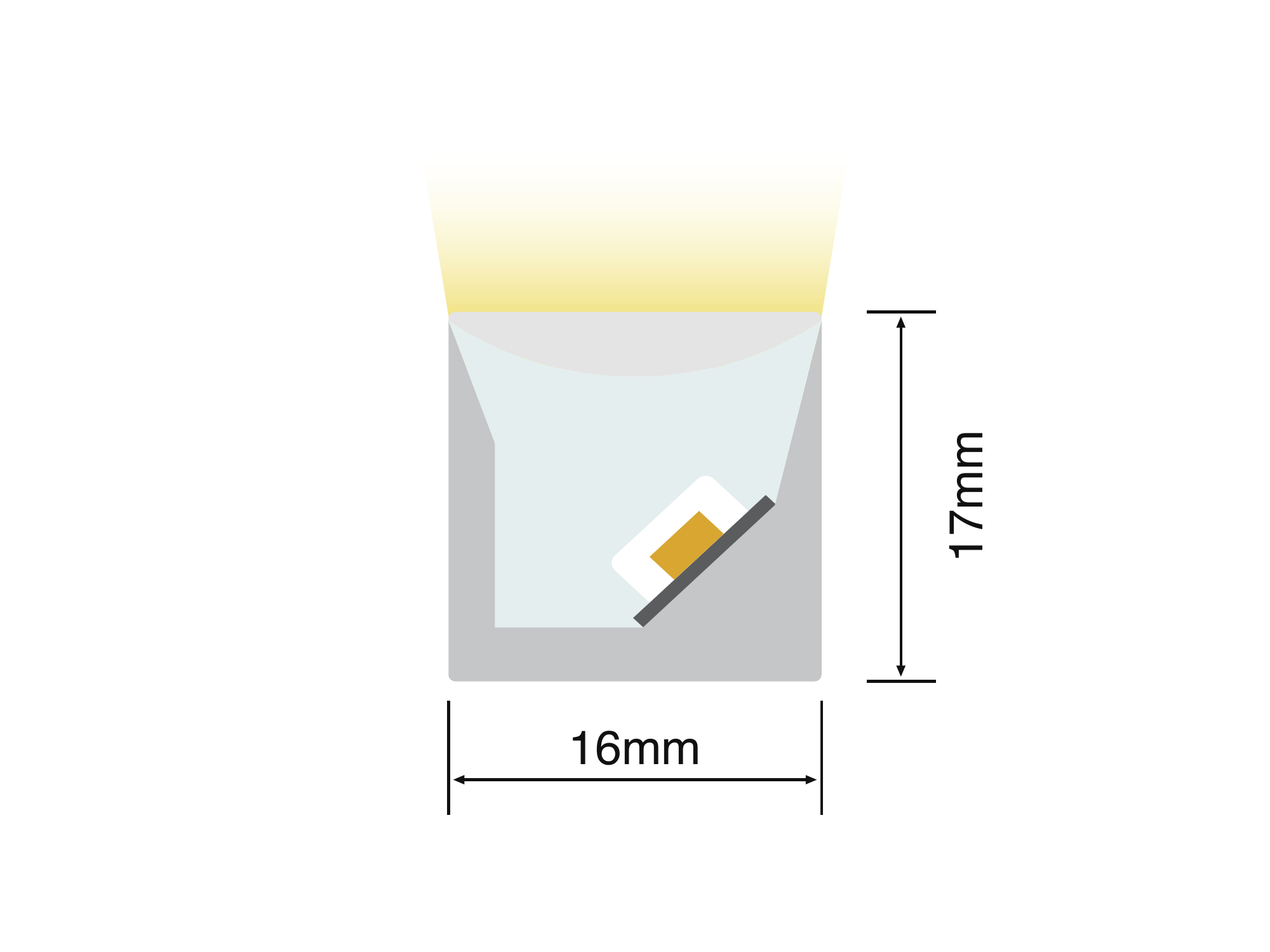

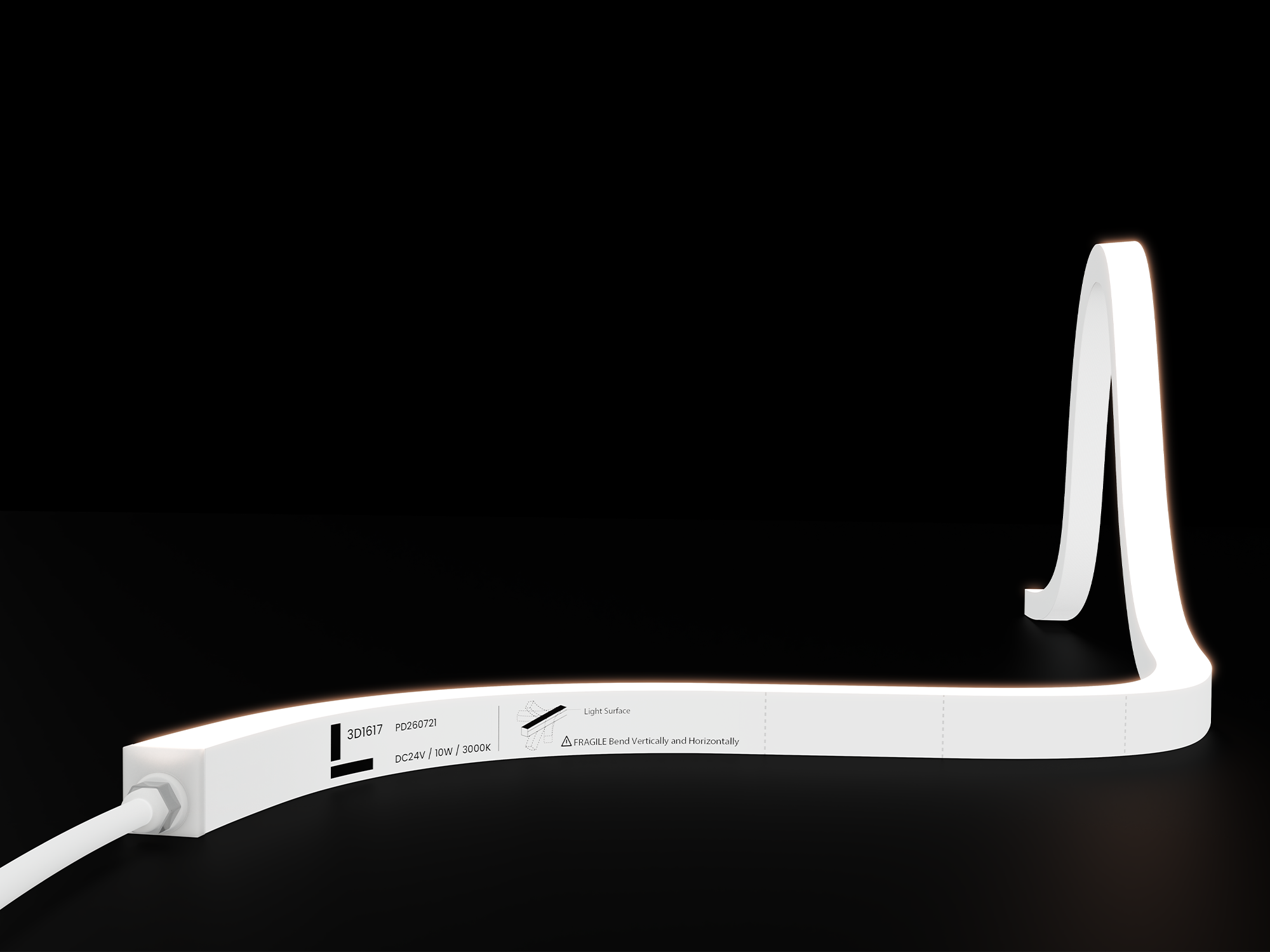

NS-3D1617 is a 3D-bend silicone LED neon flex profile with a 16 mm by 17 mm cross section, DC 24 V input, and published single-color (constant-voltage and constant-current), tunable-white, RGB and RGBW configurations. The strip bends both vertically and horizontally down to a 300 mm bending diameter, so one profile adapts to a wide range of installation environments. The high-transmittance silicone body with its optical distribution structure gives uniform surface light without shadows, with no transparent window and no light leakage from the side or bottom, clear laser printing and accurate cutting marks. IP67 protection with resistance to salt, acids, alkalis and UV suits harsh and outdoor environments; the light is dimmable, and an optional matte finish gives a smooth, dust-resistant surface with consistent finished color.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, purpose, message, and a unique idempotencyKey; company required when purpose is business; projectStage required when purpose is business or professional (country, phone, productSlug, website, sampleQuantity, sampleUnit, projectQuantity, projectUnit optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NS-3D1617, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "ns-3d1617",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NS-3D1617
Bend Direction	3D Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V
Cross Section Width	16 mm
Cross Section Height	17 mm
Power Options	4.8–15 W/m
Min Bend Diameter	300 mm
Max Run Length	5–16 m (configuration-specific)
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NS-3D1617
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NS-3D1617V24-Cx-N	DC 24 V	5 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-3D1617V24-Cx-N	DC 24 V	10 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-3D1617V24-CCx-N	DC 24 V	4.8 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
4	NS-3D1617V24-CCx-N	DC 24 V	9.6 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
5	NS-3D1617V24-Ca-W	DC 24 V	10 W/m	CV	—	White 2700K–6500K	details ↓
6	NS-3D1617V24-Crgb-W	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓
7	NS-3D1617V24-Crgbwx-W	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NS-3D1617V24-Cx-N — 5 W/m — CV

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-3D1617V24-Cx-N — 5 W/m — CV
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	CRI ≥90	293 lm/m	58.6 lm/W	50 mm	8 m
2100K (+150/−150 K)	—	CRI ≥90	319 lm/m	63.8 lm/W	50 mm	8 m
2400K (+150/−150 K)	—	CRI ≥90	345 lm/m	69 lm/W	50 mm	8 m
2700K (+150/−150 K)	—	CRI ≥90	353 lm/m	70.5 lm/W	50 mm	8 m
3000K (+150/−150 K)	—	CRI ≥90	352 lm/m	70.4 lm/W	50 mm	8 m
3500K (+200/−200 K)	—	CRI ≥90	369 lm/m	73.7 lm/W	50 mm	8 m
4000K (+400/−200 K)	—	CRI ≥90	373 lm/m	74.5 lm/W	50 mm	8 m
5000K (+500/−300 K)	—	CRI ≥90	360 lm/m	72 lm/W	50 mm	8 m
6500K (+500/−500 K)	—	CRI ≥90	376 lm/m	75.1 lm/W	50 mm	8 m
—	Red	—	147 lm/m	29.3 lm/W	50 mm	10 m
—	Green	—	425 lm/m	84.9 lm/W	50 mm	8 m
—	Blue	—	80 lm/m	15.9 lm/W	50 mm	8 m
—	Yellow	—	104 lm/m	20.8 lm/W	50 mm	10 m
—	Orange	—	122 lm/m	24.3 lm/W	50 mm	10 m
—	Pink	—	308 lm/m	61.6 lm/W	50 mm	8 m

NS-3D1617V24-Cx-N — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-3D1617V24-Cx-N — 10 W/m — CV
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	CRI ≥90	552 lm/m	55.2 lm/W	50 mm	5 m
2100K (+150/−150 K)	—	CRI ≥90	612 lm/m	61.2 lm/W	50 mm	5 m
2400K (+150/−150 K)	—	CRI ≥90	664 lm/m	66.4 lm/W	50 mm	5 m
2700K (+150/−150 K)	—	CRI ≥90	666 lm/m	66.6 lm/W	50 mm	5 m
3000K (+150/−150 K)	—	CRI ≥90	676 lm/m	67.6 lm/W	50 mm	5 m
3500K (+200/−200 K)	—	CRI ≥90	711 lm/m	71.1 lm/W	50 mm	5 m
4000K (+400/−200 K)	—	CRI ≥90	714 lm/m	71.4 lm/W	50 mm	5 m
5000K (+500/−300 K)	—	CRI ≥90	696 lm/m	69.6 lm/W	50 mm	5 m
6500K (+500/−500 K)	—	CRI ≥90	717 lm/m	71.7 lm/W	50 mm	5 m
—	Red	—	289 lm/m	28.9 lm/W	50 mm	7 m
—	Green	—	695 lm/m	69.5 lm/W	50 mm	5 m
—	Blue	—	142 lm/m	14.2 lm/W	50 mm	5 m
—	Yellow	—	206 lm/m	20.6 lm/W	50 mm	7 m
—	Orange	—	258 lm/m	25.8 lm/W	50 mm	7 m
—	Pink	—	578 lm/m	57.8 lm/W	50 mm	5 m

NS-3D1617V24-CCx-N — 4.8 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-3D1617V24-CCx-N — 4.8 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	CRI ≥90	281 lm/m	58.6 lm/W	50 mm	10 m
2100K (+150/−150 K)	—	CRI ≥90	306 lm/m	63.8 lm/W	50 mm	10 m
2400K (+150/−150 K)	—	CRI ≥90	331 lm/m	69 lm/W	50 mm	10 m
2700K (+150/−150 K)	—	CRI ≥90	338 lm/m	70.5 lm/W	50 mm	10 m
3000K (+150/−150 K)	—	CRI ≥90	338 lm/m	70.4 lm/W	50 mm	10 m
3500K (+200/−200 K)	—	CRI ≥90	354 lm/m	73.7 lm/W	50 mm	10 m
4000K (+400/−200 K)	—	CRI ≥90	358 lm/m	74.5 lm/W	50 mm	10 m
5000K (+500/−300 K)	—	CRI ≥90	346 lm/m	72 lm/W	50 mm	10 m
6500K (+500/−500 K)	—	CRI ≥90	360 lm/m	75.1 lm/W	50 mm	10 m
—	Red	—	141 lm/m	29.3 lm/W	50 mm	16 m
—	Green	—	408 lm/m	84.9 lm/W	50 mm	10 m
—	Blue	—	76 lm/m	15.9 lm/W	50 mm	10 m
—	Yellow	—	100 lm/m	20.8 lm/W	50 mm	16 m
—	Orange	—	117 lm/m	24.3 lm/W	50 mm	16 m
—	Pink	—	296 lm/m	61.6 lm/W	50 mm	10 m

NS-3D1617V24-CCx-N — 9.6 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-3D1617V24-CCx-N — 9.6 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	CRI ≥90	530 lm/m	55.2 lm/W	50 mm	6 m
2100K (+150/−150 K)	—	CRI ≥90	588 lm/m	61.2 lm/W	50 mm	6 m
2400K (+150/−150 K)	—	CRI ≥90	637 lm/m	66.4 lm/W	50 mm	6 m
2700K (+150/−150 K)	—	CRI ≥90	639 lm/m	66.6 lm/W	50 mm	6 m
3000K (+150/−150 K)	—	CRI ≥90	649 lm/m	67.6 lm/W	50 mm	6 m
3500K (+200/−200 K)	—	CRI ≥90	683 lm/m	71.1 lm/W	50 mm	6 m
4000K (+400/−200 K)	—	CRI ≥90	685 lm/m	71.4 lm/W	50 mm	6 m
5000K (+500/−300 K)	—	CRI ≥90	668 lm/m	69.6 lm/W	50 mm	6 m
6500K (+500/−500 K)	—	CRI ≥90	688 lm/m	71.7 lm/W	50 mm	6 m
—	Red	—	277 lm/m	28.9 lm/W	50 mm	10 m
—	Green	—	667 lm/m	69.5 lm/W	50 mm	5 m
—	Blue	—	136 lm/m	14.2 lm/W	50 mm	6 m
—	Yellow	—	198 lm/m	20.6 lm/W	50 mm	10 m
—	Orange	—	248 lm/m	25.8 lm/W	50 mm	10 m
—	Pink	—	555 lm/m	57.8 lm/W	50 mm	6 m

NS-3D1617V24-Ca-W — 10 W/m — CV

Max ambient: — · Outputs: White 2700K–6500K

Photometric data — NS-3D1617V24-Ca-W — 10 W/m — CV
Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	5 W/m	275 lm/m	55 lm/W	62.5 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	5 W/m	304 lm/m	60.7 lm/W	62.5 mm	5 m
Full output	—	CRI ≥90	10 W/m	575 lm/m	57.5 lm/W	62.5 mm	5 m

NS-3D1617V24-Crgb-W — 10 W/m — CV

Max ambient: — · Outputs: 3 fixed colors, RGB

Photometric data — NS-3D1617V24-Crgb-W — 10 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	52 lm/m	15.8 lm/W	62.5 mm	5 m
Single channel	Green	3.3 W/m	163 lm/m	49.5 lm/W	62.5 mm	5 m
Single channel	Blue	3.3 W/m	32 lm/m	9.7 lm/W	62.5 mm	5 m
Full output	—	10 W/m	247 lm/m	24.7 lm/W	62.5 mm	5 m

NS-3D1617V24-Crgbwx-W — 15 W/m — CV

Max ambient: — · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Photometric data — NS-3D1617V24-Crgbwx-W — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.7 W/m	60 lm/m	16.1 lm/W	62.5 mm	5 m
Single channel	—	Green	—	3.7 W/m	187 lm/m	49.8 lm/W	62.5 mm	5 m
Single channel	—	Blue	—	3.7 W/m	36 lm/m	9.6 lm/W	62.5 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	3.7 W/m	171 lm/m	45.5 lm/W	62.5 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	431 lm/m	28.7 lm/W	62.5 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	3.7 W/m	177 lm/m	47.2 lm/W	62.5 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	437 lm/m	29.1 lm/W	62.5 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥90	3.7 W/m	186 lm/m	49.5 lm/W	62.5 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	446 lm/m	29.7 lm/W	62.5 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	3.7 W/m	185 lm/m	49.4 lm/W	62.5 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	446 lm/m	29.7 lm/W	62.5 mm	5 m
