NS-T1615

Bend Direction: Top Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 5–15 W/m
Warranty Years: 5 years

Overview

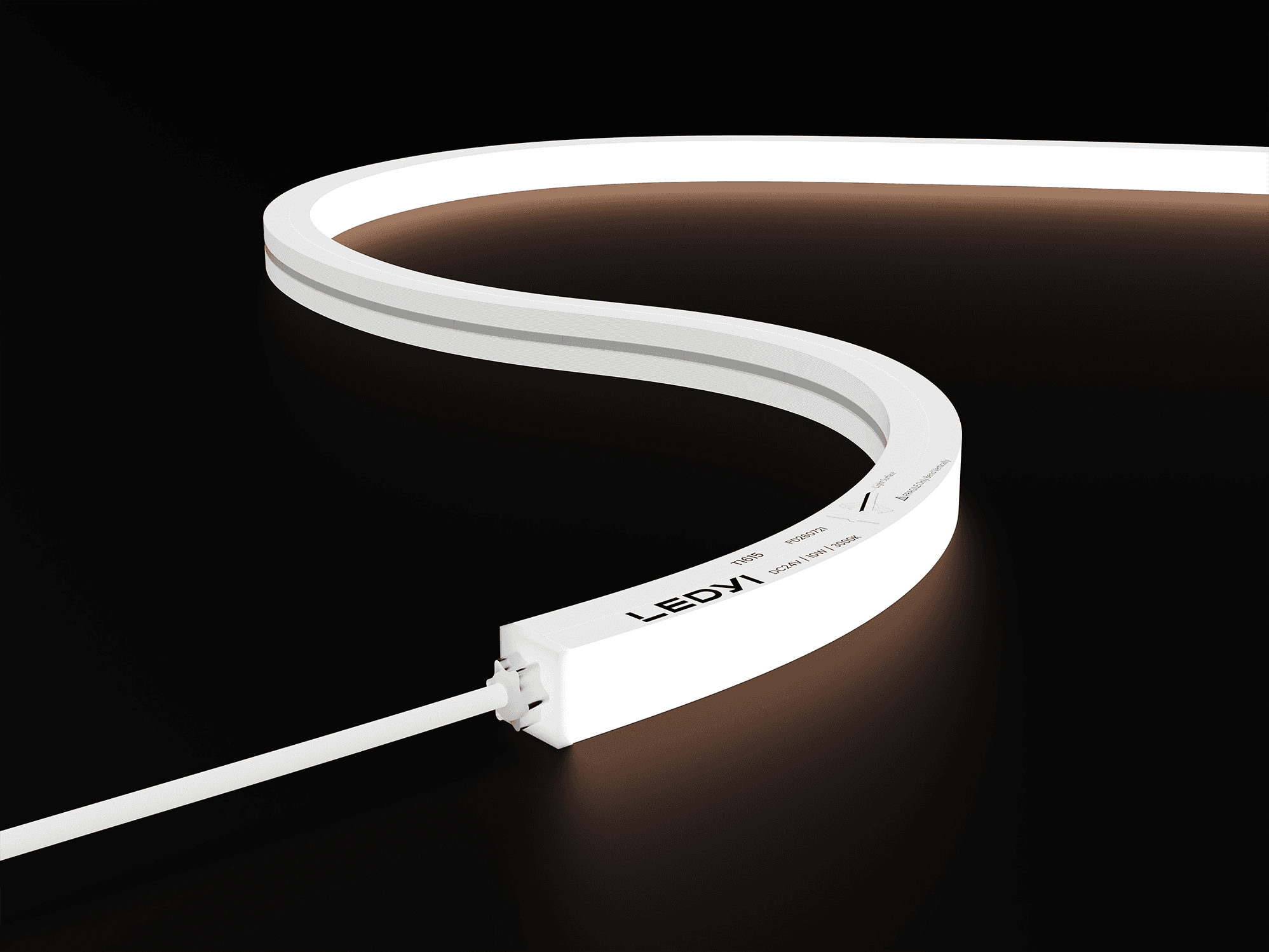

NS-T1615 is a top-bend silicone LED neon flex profile with a 16 mm by 15 mm cross section, DC 24 V input, and published single-color, tunable-white, RGBW, DMX, and SPI performance configurations. Its optical distribution structure produces a uniform illuminated surface without shadows. The integrated-extrusion Dow SILASTIC ET-7021 silicone housing combines high transparency and strength with IP67 resistance to salt solution, acids, alkalis, and UV.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NS-T1615, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "ns-t1615",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NS-T1615
Bend Direction	Top Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

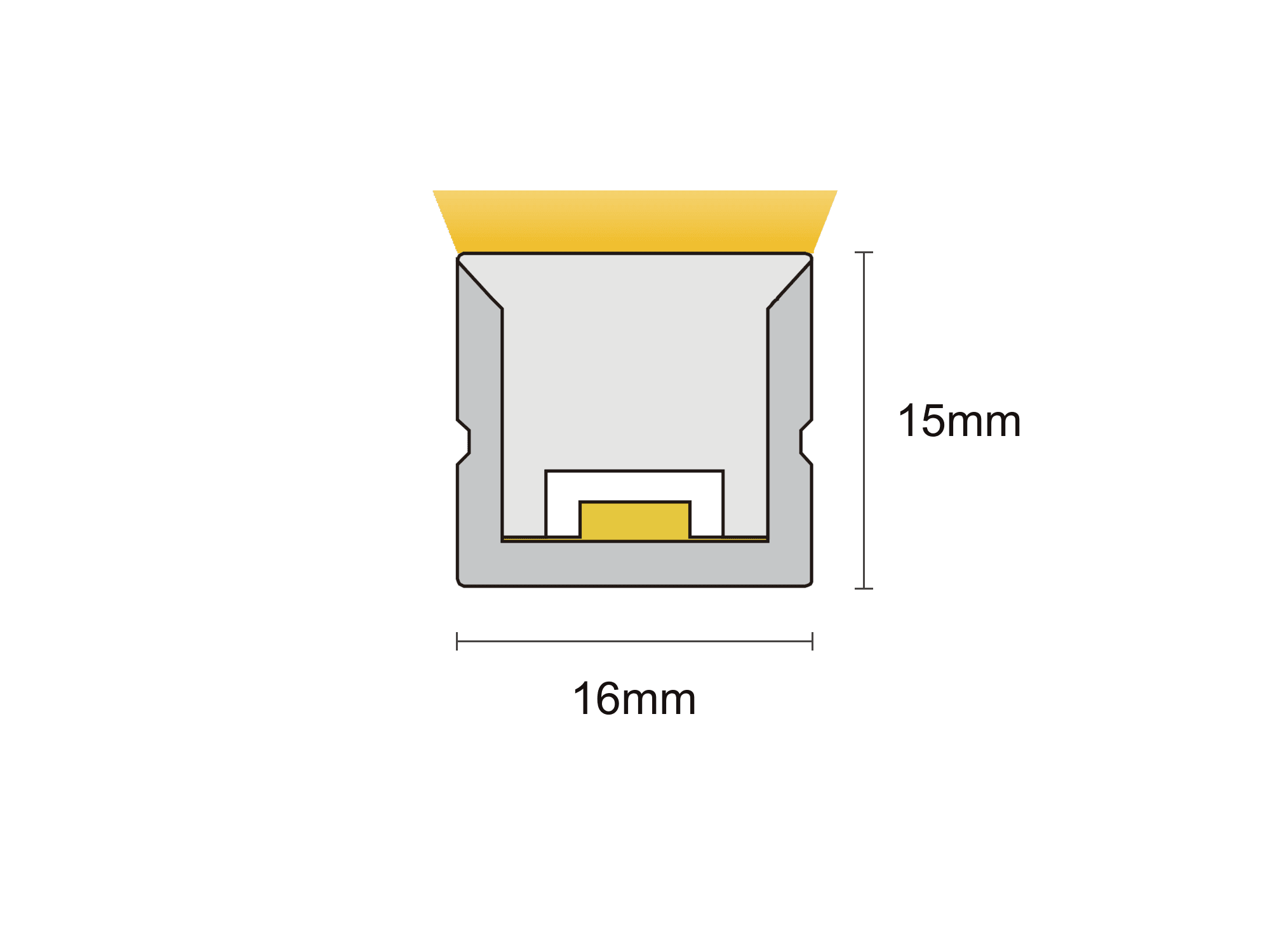

Cross Section Width	16 mm
Cross Section Height	15 mm
Power Options	5–15 W/m
Min Bend Diameter	200 mm
Max Run Length	5–35 m (configuration-specific)
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NS-T1615
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NS-T1615V24-Cx-G	DC 24 V	5 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-T1615V24-Cx-G	DC 24 V	10 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-T1615V24-Cx-G	DC 24 V	15 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
4	NS-T1615V24-CCx-G	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
5	NS-T1615V24-CCx-G	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
6	NS-T1615V24-CCx-G	DC 24 V	15 W/m	CC	—	White 1800K–6500K, 3 fixed colors	details ↓
7	NS-T1615V24-Ca-G	DC 24 V	11 W/m	CV	—	White 2700K–6500K	details ↓
8	NS-T1615V24-Crgb-A	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓
9	NS-T1615V24-CCrgb-A	DC 24 V	11 W/m	CC	—	3 fixed colors, RGB	details ↓
10	NS-T1615V24MINI-Cx-G	DC 24 V	10 W/m	CV	—	White 1800K–6500K	details ↓
11	NS-T1615V24-Crgbwx-A	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
12	NS-T1615V24-CCrgbwx-A	DC 24 V	15 W/m	CC	—	White 4000K, 3 fixed colors, RGBW	details ↓
13	NS-T1615V24-Crgbwx-UCS512C1L-8P-A	DC 24 V	15 W/m	CV	DMX512	White 4000K, 3 fixed colors, RGBW	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NS-T1615V24-Cx-G — 5 W/m — CV

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-T1615V24-Cx-G — 5 W/m — CV
Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	308 lm/m	61.6 lm/W	50 mm	10 m
2100K (+150/−150 K)	—	—	CRI ≥90	333 lm/m	66.7 lm/W	50 mm	10 m
2400K (+150/−150 K)	—	—	CRI ≥90	365 lm/m	73 lm/W	50 mm	10 m
2700K	3 SDCM	—	CRI ≥90	392 lm/m	78.4 lm/W	50 mm	10 m
3000K	3 SDCM	—	CRI ≥90	407 lm/m	81.4 lm/W	50 mm	10 m
3500K	3 SDCM	—	CRI ≥90	428 lm/m	85.6 lm/W	50 mm	10 m
4000K	3 SDCM	—	CRI ≥90	437 lm/m	87.4 lm/W	50 mm	10 m
5000K	4 SDCM	—	CRI ≥90	433 lm/m	86.7 lm/W	50 mm	10 m
6500K	5 SDCM	—	CRI ≥90	435 lm/m	87.1 lm/W	50 mm	10 m
—	—	Red	—	167 lm/m	33.4 lm/W	50 mm	15 m
—	—	Green	—	463 lm/m	92.6 lm/W	50 mm	12 m
—	—	Blue	—	84 lm/m	16.7 lm/W	50 mm	8 m
—	—	Yellow	—	111 lm/m	22.1 lm/W	50 mm	13 m
—	—	Orange	—	153 lm/m	30.5 lm/W	50 mm	13 m
—	—	Pink	—	356 lm/m	71.2 lm/W	50 mm	10 m

NS-T1615V24-Cx-G — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-T1615V24-Cx-G — 10 W/m — CV
Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	587 lm/m	58.7 lm/W	50 mm	7 m
2100K (+150/−150 K)	—	—	CRI ≥90	635 lm/m	63.5 lm/W	50 mm	7 m
2400K (+150/−150 K)	—	—	CRI ≥90	698 lm/m	69.8 lm/W	50 mm	7 m
2700K	3 SDCM	—	CRI ≥90	747 lm/m	74.7 lm/W	50 mm	7 m
3000K	3 SDCM	—	CRI ≥90	777 lm/m	77.7 lm/W	50 mm	7 m
3500K	3 SDCM	—	CRI ≥90	815 lm/m	81.5 lm/W	50 mm	7 m
4000K	3 SDCM	—	CRI ≥90	842 lm/m	84.2 lm/W	50 mm	7 m
5000K	4 SDCM	—	CRI ≥90	833 lm/m	83.3 lm/W	50 mm	7 m
6500K	5 SDCM	—	CRI ≥90	839 lm/m	83.9 lm/W	50 mm	7 m
—	—	Red	—	335 lm/m	33.5 lm/W	50 mm	9 m
—	—	Green	—	769 lm/m	76.9 lm/W	50 mm	9 m
—	—	Blue	—	159 lm/m	15.9 lm/W	50 mm	6 m
—	—	Yellow	—	227 lm/m	22.7 lm/W	50 mm	8 m
—	—	Orange	—	331 lm/m	33.1 lm/W	50 mm	9 m
—	—	Pink	—	684 lm/m	68.4 lm/W	50 mm	6 m

NS-T1615V24-Cx-G — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-T1615V24-Cx-G — 15 W/m — CV
Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	840 lm/m	56 lm/W	50 mm	5 m
2100K (+150/−150 K)	—	—	CRI ≥90	908 lm/m	60.6 lm/W	50 mm	5 m
2400K (+150/−150 K)	—	—	CRI ≥90	1007 lm/m	67.1 lm/W	50 mm	5 m
2700K	3 SDCM	—	CRI ≥90	1069 lm/m	71.2 lm/W	50 mm	5 m
3000K	3 SDCM	—	CRI ≥90	1122 lm/m	74.8 lm/W	50 mm	5 m
3500K	3 SDCM	—	CRI ≥90	1166 lm/m	77.7 lm/W	50 mm	5 m
4000K	3 SDCM	—	CRI ≥90	1223 lm/m	81.6 lm/W	50 mm	5 m
5000K	4 SDCM	—	CRI ≥90	1207 lm/m	80.4 lm/W	50 mm	5 m
6500K	5 SDCM	—	CRI ≥90	1218 lm/m	81.2 lm/W	50 mm	5 m
—	—	Red	—	494 lm/m	32.9 lm/W	50 mm	7 m
—	—	Green	—	993 lm/m	66.2 lm/W	50 mm	7 m
—	—	Blue	—	221 lm/m	14.7 lm/W	50 mm	5 m
—	—	Yellow	—	324 lm/m	21.6 lm/W	50 mm	7 m
—	—	Orange	—	502 lm/m	33.5 lm/W	50 mm	7 m
—	—	Pink	—	990 lm/m	66 lm/W	50 mm	5 m

NS-T1615V24-CCx-G — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-T1615V24-CCx-G — 5 W/m — CC
Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	253 lm/m	50.7 lm/W	50 mm	27 m
2100K (+150/−150 K)	—	—	CRI ≥90	277 lm/m	55.4 lm/W	50 mm	27 m
2400K (+150/−150 K)	—	—	CRI ≥90	295 lm/m	59.1 lm/W	50 mm	27 m
2700K	3 SDCM	—	CRI ≥90	323 lm/m	64.6 lm/W	50 mm	27 m
3000K	3 SDCM	—	CRI ≥90	342 lm/m	68.4 lm/W	50 mm	27 m
3500K	3 SDCM	—	CRI ≥90	351 lm/m	70.1 lm/W	50 mm	27 m
4000K	3 SDCM	—	CRI ≥90	359 lm/m	71.7 lm/W	50 mm	27 m
5000K	4 SDCM	—	CRI ≥90	339 lm/m	67.8 lm/W	50 mm	27 m
6500K	5 SDCM	—	CRI ≥90	356 lm/m	71.1 lm/W	50 mm	27 m
—	—	Red	—	137 lm/m	27.4 lm/W	50 mm	35 m
—	—	Green	—	367 lm/m	73.3 lm/W	50 mm	27 m
—	—	Blue	—	65 lm/m	13 lm/W	50 mm	27 m
—	—	Yellow	—	87 lm/m	17.3 lm/W	50 mm	35 m
—	—	Orange	—	121 lm/m	24.2 lm/W	50 mm	35 m
—	—	Pink	—	291 lm/m	58.1 lm/W	50 mm	27 m

NS-T1615V24-CCx-G — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-T1615V24-CCx-G — 10 W/m — CC
Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	483 lm/m	48.3 lm/W	50 mm	18 m
2100K (+150/−150 K)	—	—	CRI ≥90	528 lm/m	52.8 lm/W	50 mm	18 m
2400K (+150/−150 K)	—	—	CRI ≥90	565 lm/m	56.5 lm/W	50 mm	18 m
2700K	3 SDCM	—	CRI ≥90	615 lm/m	61.5 lm/W	50 mm	18 m
3000K	3 SDCM	—	CRI ≥90	653 lm/m	65.3 lm/W	50 mm	18 m
3500K	3 SDCM	—	CRI ≥90	668 lm/m	66.8 lm/W	50 mm	18 m
4000K	3 SDCM	—	CRI ≥90	691 lm/m	69.1 lm/W	50 mm	18 m
5000K	4 SDCM	—	CRI ≥90	651 lm/m	65.1 lm/W	50 mm	18 m
6500K	5 SDCM	—	CRI ≥90	685 lm/m	68.5 lm/W	50 mm	18 m
—	—	Red	—	275 lm/m	27.5 lm/W	50 mm	18 m
—	—	Green	—	609 lm/m	60.9 lm/W	50 mm	16 m
—	—	Blue	—	123 lm/m	12.3 lm/W	50 mm	18 m
—	—	Yellow	—	178 lm/m	17.8 lm/W	50 mm	18 m
—	—	Orange	—	262 lm/m	26.2 lm/W	50 mm	18 m
—	—	Pink	—	558 lm/m	55.8 lm/W	50 mm	18 m

NS-T1615V24-CCx-G — 15 W/m — CC

Max ambient: 35 °C · Outputs: White 1800K–6500K, 3 fixed colors

Photometric data — NS-T1615V24-CCx-G — 15 W/m — CC
Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	691 lm/m	46.1 lm/W	50 mm	12 m
2100K (+150/−150 K)	—	—	CRI ≥90	755 lm/m	50.4 lm/W	50 mm	12 m
2400K (+150/−150 K)	—	—	CRI ≥90	815 lm/m	54.3 lm/W	50 mm	12 m
2700K	3 SDCM	—	CRI ≥90	880 lm/m	58.7 lm/W	50 mm	12 m
3000K	3 SDCM	—	CRI ≥90	943 lm/m	62.9 lm/W	50 mm	12 m
3500K	3 SDCM	—	CRI ≥90	956 lm/m	63.7 lm/W	50 mm	12 m
4000K	3 SDCM	—	CRI ≥90	1004 lm/m	66.9 lm/W	50 mm	12 m
5000K	4 SDCM	—	CRI ≥90	943 lm/m	62.9 lm/W	50 mm	12 m
6500K	5 SDCM	—	CRI ≥90	994 lm/m	66.3 lm/W	50 mm	12 m
—	—	Green	—	786 lm/m	52.4 lm/W	50 mm	10 m
—	—	Blue	—	171 lm/m	11.4 lm/W	50 mm	12 m
—	—	Pink	—	808 lm/m	53.8 lm/W	50 mm	12 m

NS-T1615V24-Ca-G — 11 W/m — CV

Max ambient: — · Outputs: White 2700K–6500K

Photometric data — NS-T1615V24-Ca-G — 11 W/m — CV
Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	9.5 W/m	710 lm/m	74.7 lm/W	71.4 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	9.5 W/m	762 lm/m	80.2 lm/W	71.4 mm	5 m
Full output	—	CRI ≥90	11 W/m	888 lm/m	80.7 lm/W	71.4 mm	5 m

NS-T1615V24-Crgb-A — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Photometric data — NS-T1615V24-Crgb-A — 10 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	60 lm/m	18.1 lm/W	83.3 mm	5 m
Single channel	Green	3.3 W/m	215 lm/m	65.3 lm/W	83.3 mm	5 m
Single channel	Blue	3.3 W/m	37 lm/m	11.1 lm/W	83.3 mm	5 m
Full output	—	10 W/m	307 lm/m	30.7 lm/W	83.3 mm	5 m

NS-T1615V24-CCrgb-A — 11 W/m — CC

Max ambient: — · Outputs: 3 fixed colors, RGB

Photometric data — NS-T1615V24-CCrgb-A — 11 W/m — CC
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.6 W/m	54 lm/m	15 lm/W	125 mm	13 m
Single channel	Green	3.6 W/m	209 lm/m	58 lm/W	125 mm	13 m
Single channel	Blue	3.6 W/m	35 lm/m	10 lm/W	125 mm	13 m
Full output	—	11 W/m	300 lm/m	27 lm/W	125 mm	13 m

NS-T1615V24MINI-Cx-G — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 1800K–6500K

Photometric data — NS-T1615V24MINI-Cx-G — 10 W/m — CV
Nominal CCT	SDCM	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	580 lm/m	58 lm/W	8.3 mm	5 m
2100K (+150/−150 K)	—	CRI ≥90	674 lm/m	67.4 lm/W	8.3 mm	5 m
2400K (+150/−150 K)	—	CRI ≥90	721 lm/m	72.1 lm/W	8.3 mm	5 m
2700K	3 SDCM	CRI ≥90	771 lm/m	77.1 lm/W	8.3 mm	5 m
3000K	3 SDCM	CRI ≥90	785 lm/m	78.5 lm/W	8.3 mm	5 m
3500K	3 SDCM	CRI ≥90	806 lm/m	80.6 lm/W	8.3 mm	5 m
4000K	3 SDCM	CRI ≥90	781 lm/m	78.1 lm/W	8.3 mm	5 m
5000K	4 SDCM	CRI ≥90	797 lm/m	79.7 lm/W	8.3 mm	5 m
6500K	5 SDCM	CRI ≥90	776 lm/m	77.6 lm/W	8.3 mm	5 m

NS-T1615V24-Crgbwx-A — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Photometric data — NS-T1615V24-Crgbwx-A — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.8 W/m	67 lm/m	17.8 lm/W	83.3 mm	5 m
Single channel	—	Green	—	3.8 W/m	230 lm/m	61.2 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	3.8 W/m	43 lm/m	11.5 lm/W	83.3 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	3.8 W/m	210 lm/m	56 lm/W	83.3 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	3.8 W/m	222 lm/m	59.1 lm/W	83.3 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥90	3.8 W/m	241 lm/m	64.3 lm/W	83.3 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	3.8 W/m	224 lm/m	59.8 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	536 lm/m	35.7 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	548 lm/m	36.5 lm/W	83.3 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	576 lm/m	38.4 lm/W	83.3 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	554 lm/m	36.9 lm/W	83.3 mm	5 m

NS-T1615V24-CCrgbwx-A — 15 W/m — CC

Max ambient: 35 °C · Outputs: White 4000K, 3 fixed colors, RGBW

Photometric data — NS-T1615V24-CCrgbwx-A — 15 W/m — CC
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.6 W/m	57 lm/m	16 lm/W	125 mm	10 m
Single channel	—	Green	—	3.6 W/m	137 lm/m	38 lm/W	125 mm	10 m
Single channel	—	Blue	—	3.6 W/m	38 lm/m	11 lm/W	125 mm	10 m
Single channel	4000K (+300/−300 K)	—	CRI ≥80	3.6 W/m	167 lm/m	46 lm/W	125 mm	10 m
Full output	White channel: 4000K	—	—	15 W/m	405 lm/m	27 lm/W	125 mm	10 m

NS-T1615V24-Crgbwx-UCS512C1L-8P-A — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 4000K, 3 fixed colors, RGBW

Photometric data — NS-T1615V24-Crgbwx-UCS512C1L-8P-A — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	—	Red	—	5 W/m	41 lm/m	8.2 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Green	—	5 W/m	102 lm/m	20.3 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Blue	—	5 W/m	30 lm/m	5.9 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	4000K (+400/−200 K)	—	CRI ≥80	5 W/m	123 lm/m	24.6 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	White channel: 4000K	—	—	15 W/m	291 lm/m	19.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L
