NS-S2020

Last updated: 2026-08-13

Bend Direction	Side Bend
IP Rating	IP67
Input Voltage	DC 24 V
Power Options	5–15 W/m
Warranty Years	5 years

About NS-S2020

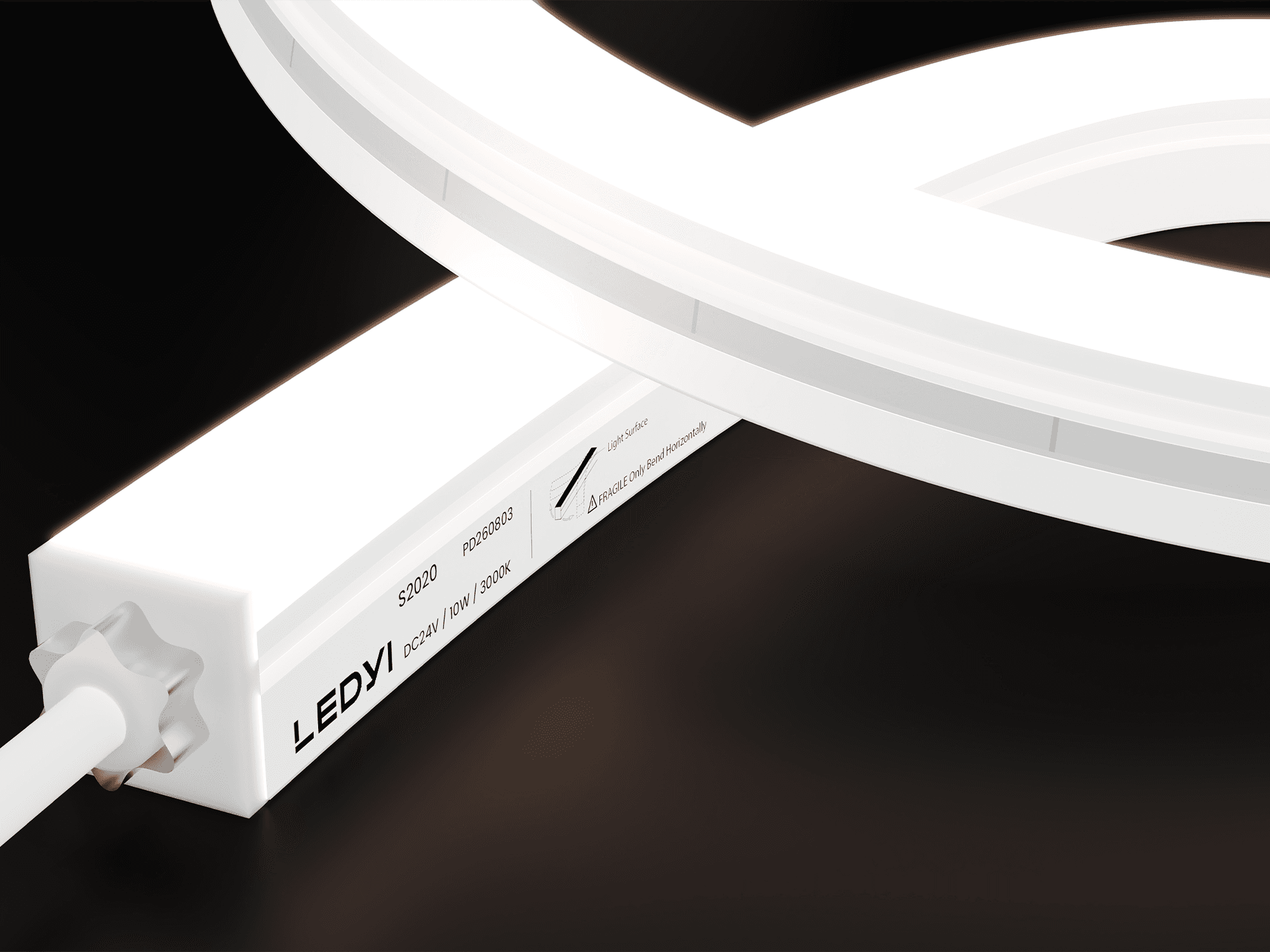

NS-S2020 is a side-bend silicone LED neon flex profile with a 20 mm by 20 mm cross section, DC 24 V input, and published single-color, tunable-white, RGB, RGBW, and DMX512 configurations. Its integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high transparency and strength. The optical distribution structure produces a uniform, shadow-free illuminated surface, with IP67 resistance to salt solution, acids, alkalis, and UV.

NS-S2020 Specifications

Specifications for NS-S2020
Bend Direction	Side Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 4500K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

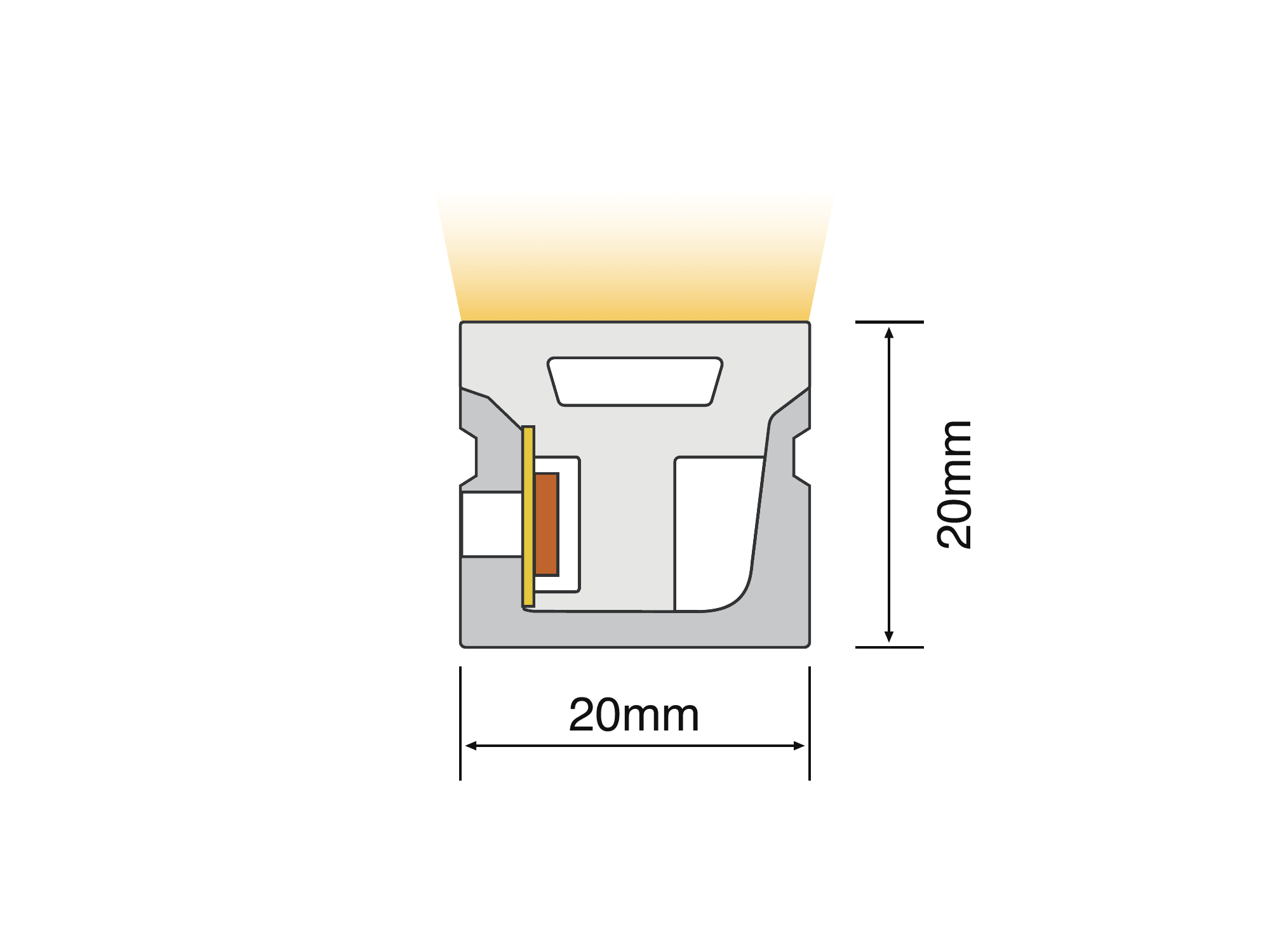

Cross Section Width	20 mm
Cross Section Height	20 mm
Power Options	5–15 W/m
Min Bend Diameter	200 mm
Max Run Length	up to 35 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

NS-S2020 Ordering Information

Ordering information for NS-S2020
#	Ordering Code	Input	Power	Drive	Protocol	Outputs
1	NS-S2020V24-CCx-B	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-S2020V24-CCx-B	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-S2020V24-CCx-B	DC 24 V	15 W/m	CC	—	White 1800K–6500K, 3 fixed colors	details ↓
4	NS-S2020V24-Ca-F (SMD2835)	DC 24 V	15 W/m	CV	—	White 2700K–6500K	details ↓
5	NS-S2020V24-Ca-F (SMD3014)	DC 24 V	15 W/m	CV	—	White 2700K–6500K	details ↓
6	NS-S2020V24-Crgb-F (SMD4040)	DC 24 V	15 W/m	CV	—	3 fixed colors, RGB	details ↓
7	NS-S2020V24-Crgb-F (SMD5050)	DC 24 V	15 W/m	CV	—	3 fixed colors, RGB	details ↓
8	NS-S2020V24-Crgbwx-F (SMD5050RGB+2835)	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
9	NS-S2020V24-Crgbwx-F (SMD5050RGBW 4in1)	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
10	NS-S2020V24-Crgb-UCS512C1L-8P-F	DC 24 V	12 W/m	—	DMX512	3 fixed colors, RGB	details ↓
11	NS-S2020V24-Crgbwx-UCS512C1L-8P-F	DC 24 V	15 W/m	—	DMX512	White 4500K, 3 fixed colors, RGBW	details ↓

Ordering codes are order templates — one code may cover several power variants. Each configuration below is one sellable combination.

NS-S2020 Photometric Data

NS-S2020V24-CCx-B — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	252 lm/m	50.4 lm/W	50 mm	27 m
2100K (+150/−150 K)	—	CRI ≥90	268 lm/m	53.5 lm/W	50 mm	27 m
2400K (+150/−150 K)	—	CRI ≥90	277 lm/m	55.4 lm/W	50 mm	27 m
2700K (+150/−150 K)	—	CRI ≥90	239 lm/m	47.8 lm/W	50 mm	27 m
3000K (+150/−150 K)	—	CRI ≥90	249 lm/m	49.7 lm/W	50 mm	27 m
3500K (+200/−200 K)	—	CRI ≥90	241 lm/m	48.3 lm/W	50 mm	27 m
4000K (+400/−200 K)	—	CRI ≥90	242 lm/m	48.5 lm/W	50 mm	27 m
5000K (+500/−300 K)	—	CRI ≥90	245 lm/m	48.9 lm/W	50 mm	27 m
6500K (+500/−500 K)	—	CRI ≥90	247 lm/m	49.3 lm/W	50 mm	27 m
—	Red	—	101 lm/m	20.3 lm/W	50 mm	35 m
—	Green	—	291 lm/m	58.3 lm/W	50 mm	27 m
—	Blue	—	51 lm/m	10.1 lm/W	50 mm	27 m
—	Yellow	—	75 lm/m	14.9 lm/W	50 mm	35 m
—	Orange	—	95 lm/m	18.9 lm/W	50 mm	35 m
—	Pink	—	215 lm/m	42.9 lm/W	50 mm	27 m

NS-S2020V24-CCx-B — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	480 lm/m	48 lm/W	50 mm	18 m
2100K (+150/−150 K)	—	CRI ≥90	510 lm/m	51 lm/W	50 mm	18 m
2400K (+150/−150 K)	—	CRI ≥90	530 lm/m	53 lm/W	50 mm	18 m
2700K (+150/−150 K)	—	CRI ≥90	455 lm/m	45.5 lm/W	50 mm	18 m
3000K (+150/−150 K)	—	CRI ≥90	475 lm/m	47.5 lm/W	50 mm	18 m
3500K (+200/−200 K)	—	CRI ≥90	460 lm/m	46 lm/W	50 mm	18 m
4000K (+400/−200 K)	—	CRI ≥90	467 lm/m	46.7 lm/W	50 mm	18 m
5000K (+500/−300 K)	—	CRI ≥90	470 lm/m	47 lm/W	50 mm	18 m
6500K (+500/−500 K)	—	CRI ≥90	475 lm/m	47.5 lm/W	50 mm	18 m
—	Red	—	203 lm/m	20.3 lm/W	50 mm	18 m
—	Green	—	484 lm/m	48.4 lm/W	50 mm	16 m
—	Blue	—	96 lm/m	9.6 lm/W	50 mm	18 m
—	Yellow	—	153 lm/m	15.3 lm/W	50 mm	18 m
—	Orange	—	205 lm/m	20.5 lm/W	50 mm	18 m
—	Pink	—	412 lm/m	41.2 lm/W	50 mm	18 m

NS-S2020V24-CCx-B — 15 W/m — CC

Max ambient: 35 °C · Outputs: White 1800K–6500K, 3 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	687 lm/m	45.8 lm/W	50 mm	12 m
2100K (+150/−150 K)	—	CRI ≥90	730 lm/m	48.6 lm/W	50 mm	12 m
2400K (+150/−150 K)	—	CRI ≥90	765 lm/m	51 lm/W	50 mm	12 m
2700K (+150/−150 K)	—	CRI ≥90	651 lm/m	43.4 lm/W	50 mm	12 m
3000K (+150/−150 K)	—	CRI ≥90	686 lm/m	45.7 lm/W	50 mm	12 m
3500K (+200/−200 K)	—	CRI ≥90	658 lm/m	43.9 lm/W	50 mm	12 m
4000K (+400/−200 K)	—	CRI ≥90	679 lm/m	45.2 lm/W	50 mm	12 m
5000K (+500/−300 K)	—	CRI ≥90	681 lm/m	45.4 lm/W	50 mm	12 m
6500K (+500/−500 K)	—	CRI ≥90	690 lm/m	46 lm/W	50 mm	12 m
—	Green	—	625 lm/m	41.7 lm/W	50 mm	10 m
—	Blue	—	133 lm/m	8.9 lm/W	50 mm	12 m
—	Pink	—	593 lm/m	39.6 lm/W	50 mm	12 m

NS-S2020V24-Ca-F (SMD2835) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	7.5 W/m	331 lm/m	44.1 lm/W	62.5 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	7.5 W/m	347 lm/m	46.3 lm/W	62.5 mm	5 m
Full output	—	CRI ≥90	15 W/m	672 lm/m	44.8 lm/W	62.5 mm	5 m

NS-S2020V24-Ca-F (SMD3014) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	7.5 W/m	314 lm/m	41.8 lm/W	50 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	7.5 W/m	338 lm/m	45 lm/W	50 mm	5 m
Full output	—	CRI ≥90	15 W/m	644 lm/m	42.9 lm/W	50 mm	5 m

NS-S2020V24-Crgb-F (SMD4040) — 15 W/m — CV

Max ambient: 35 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	5 W/m	76 lm/m	15.2 lm/W	62.5 mm	5 m
Single channel	Green	5 W/m	189 lm/m	37.8 lm/W	62.5 mm	5 m
Single channel	Blue	5 W/m	40 lm/m	8 lm/W	62.5 mm	5 m
Full output	—	15 W/m	303 lm/m	20.2 lm/W	62.5 mm	5 m

NS-S2020V24-Crgb-F (SMD5050) — 15 W/m — CV

Max ambient: 35 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	5 W/m	79 lm/m	15.7 lm/W	83.3 mm	5 m
Single channel	Green	5 W/m	257 lm/m	51.3 lm/W	83.3 mm	5 m
Single channel	Blue	5 W/m	43 lm/m	8.6 lm/W	83.3 mm	5 m
Full output	—	15 W/m	366 lm/m	24.4 lm/W	83.3 mm	5 m

NS-S2020V24-Crgbwx-F (SMD5050RGB+2835) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.8 W/m	57 lm/m	15.3 lm/W	83.3 mm	5 m
Single channel	—	Green	—	3.8 W/m	192 lm/m	51.1 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	3.8 W/m	39 lm/m	10.3 lm/W	83.3 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	3.8 W/m	184 lm/m	49 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	492 lm/m	32.8 lm/W	83.3 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	3.8 W/m	195 lm/m	52.1 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	509 lm/m	33.9 lm/W	83.3 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥90	3.8 W/m	187 lm/m	49.9 lm/W	83.3 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	495 lm/m	33 lm/W	83.3 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	3.8 W/m	191 lm/m	50.8 lm/W	83.3 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	497 lm/m	33.1 lm/W	83.3 mm	5 m

NS-S2020V24-Crgbwx-F (SMD5050RGBW 4in1) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.8 W/m	53 lm/m	14.1 lm/W	62.5 mm	5 m
Single channel	—	Green	—	3.8 W/m	127 lm/m	33.9 lm/W	62.5 mm	5 m
Single channel	—	Blue	—	3.8 W/m	41 lm/m	10.8 lm/W	62.5 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥80	3.8 W/m	144 lm/m	38.3 lm/W	62.5 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	357 lm/m	23.8 lm/W	62.5 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥80	3.8 W/m	138 lm/m	36.8 lm/W	62.5 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	339 lm/m	22.6 lm/W	62.5 mm	5 m
Single channel	4000K (+300/−300 K)	—	CRI ≥80	3.8 W/m	159 lm/m	42.4 lm/W	62.5 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	383 lm/m	25.5 lm/W	62.5 mm	5 m
Single channel	6500K (+400/−400 K)	—	CRI ≥80	3.8 W/m	158 lm/m	42 lm/W	62.5 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	372 lm/m	24.8 lm/W	62.5 mm	5 m

NS-S2020V24-Crgb-UCS512C1L-8P-F — 12 W/m — DMX512

Max ambient: — · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	Red	5 W/m	33 lm/m	6.5 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	Green	5 W/m	126 lm/m	25.2 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	Blue	5 W/m	22 lm/m	4.3 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	—	12 W/m	179 lm/m	14.9 lm/W	125 mm	7 m	8 px/m	UCS512C1L

NS-S2020V24-Crgbwx-UCS512C1L-8P-F — 15 W/m — DMX512

Max ambient: 35 °C · Outputs: White 4500K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	—	Red	—	5 W/m	32 lm/m	6.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Green	—	5 W/m	93 lm/m	18.5 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Blue	—	5 W/m	22 lm/m	4.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	4500K (+300/−300 K)	—	CRI ≥80	5 W/m	105 lm/m	21 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	White channel: 4500K	—	—	15 W/m	251 lm/m	16.7 lm/W	125 mm	7 m	8 px/m	UCS512C1L
