NS-S1617

Last updated: 2026-08-13

Bend Direction	Side Bend
IP Rating	IP67
Input Voltage	DC 24 V
Power Options	5–15 W/m
Warranty Years	5 years

About NS-S1617

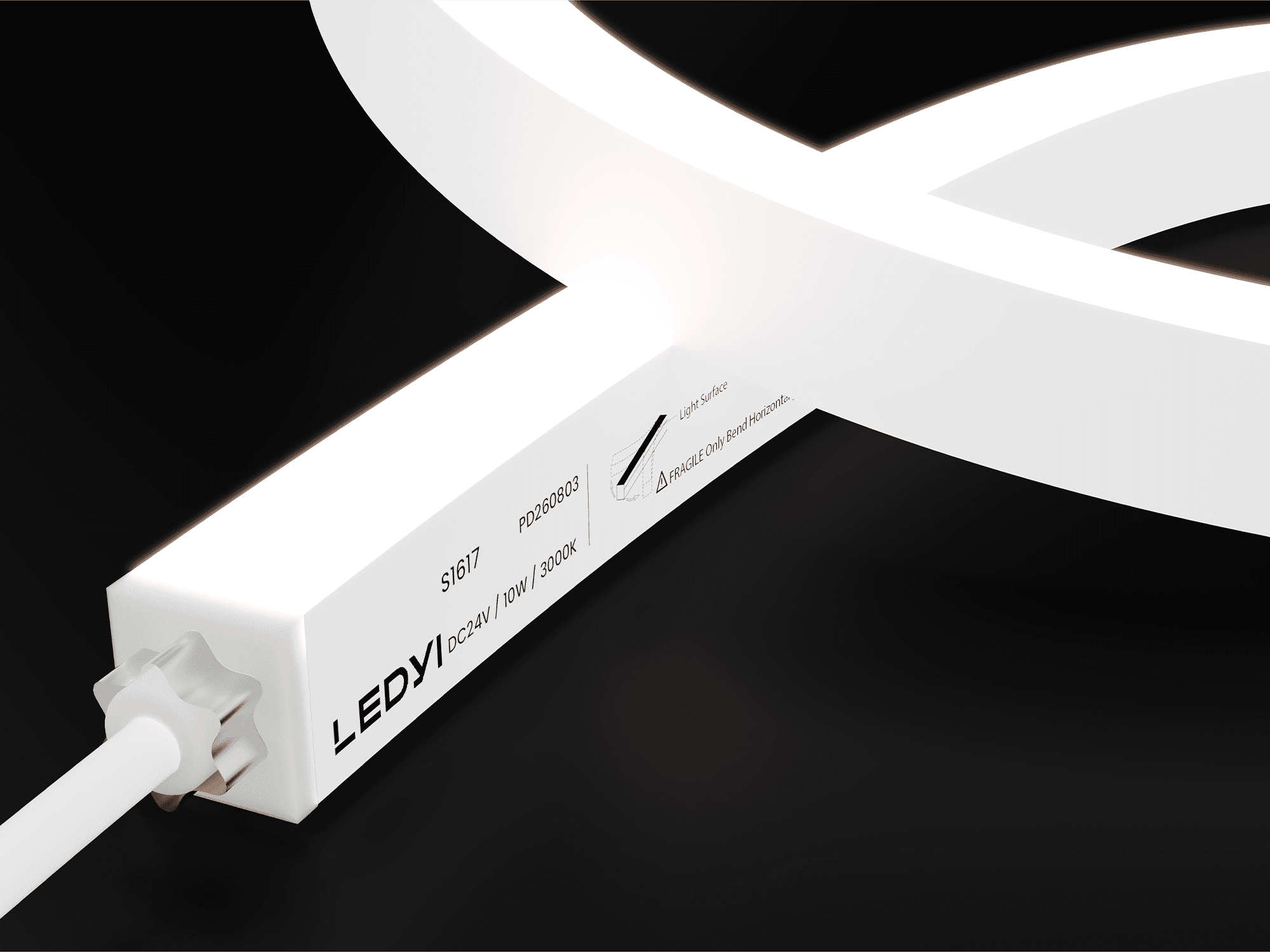

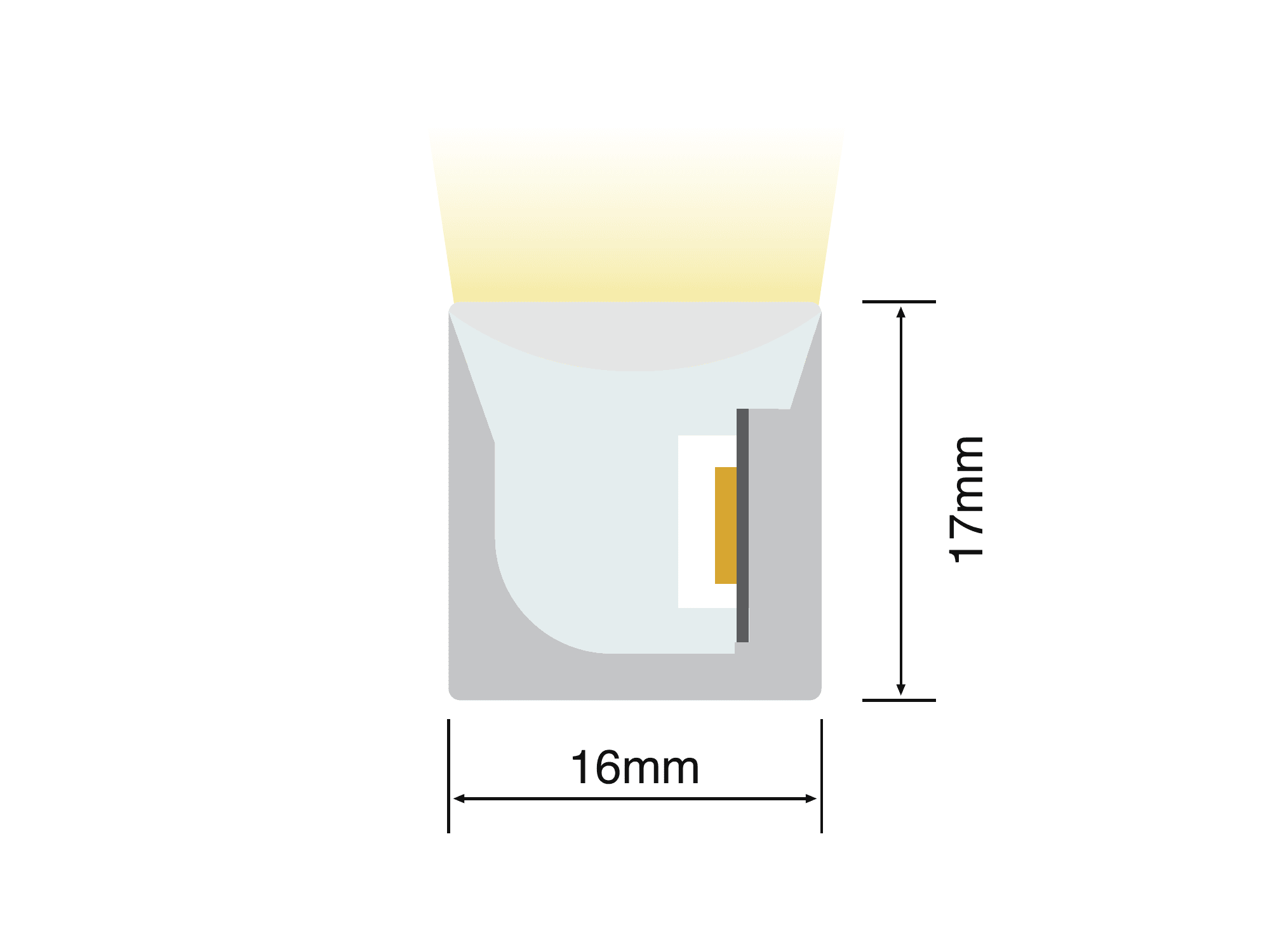

NS-S1617 is a side-bend silicone LED neon flex profile with a 16 mm by 17 mm cross section, DC 24 V input, and published single-color, tunable-white, RGB, RGBW, and DMX512 configurations. Its horizontal-bending construction provides uniform, dimmable light, with production lengths up to 30 m and small cutting increments for configurable lengths. An optional matt treatment provides a smooth, dust-resistant surface and can reduce finished-product color variation to 3 SDCM steps.

NS-S1617 Specifications

Specifications for NS-S1617
Bend Direction	Side Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V
Cross Section Width	16 mm
Cross Section Height	17 mm
Power Options	5–15 W/m
Min Bend Diameter	200 mm
Max Run Length	up to 32 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

NS-S1617 Ordering Information

Ordering information for NS-S1617
#	Ordering Code	Input	Power	Drive	Protocol	Outputs
1	NS-S1617V24-Cx-B	DC 24 V	5 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-S1617V24-Cx-B	DC 24 V	10 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-S1617V24-Cx-B	DC 24 V	15 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
4	NS-S1617V24-CCx-B	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
5	NS-S1617V24-CCx-B	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
6	NS-S1617V24-CCx-B	DC 24 V	15 W/m	CC	—	White 1800K–6500K, 3 fixed colors	details ↓
7	NS-S1617V24-Ca-B	DC 24 V	11 W/m	CV	—	White 2700K–6500K	details ↓
8	NS-S1617V24-Crgb-B	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓
9	NS-S1617V24-Crgbwx-B	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
10	NS-S1617V24-Crgbwx-UCS512CL-8P-B	DC 24 V	15 W/m	—	DMX512	White 4000K, 3 fixed colors, RGBW	details ↓

Ordering codes are order templates — one code may cover several power variants. Each configuration below is one sellable combination.

NS-S1617 Photometric Data

NS-S1617V24-Cx-B — 5 W/m — CV

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	256 lm/m	51.1 lm/W	50 mm	9 m
2100K (+150/−150 K)	—	—	CRI ≥90	286 lm/m	57.1 lm/W	50 mm	9 m
2400K (+150/−150 K)	—	—	CRI ≥90	309 lm/m	61.7 lm/W	50 mm	9 m
2700K	3 SDCM	—	CRI ≥90	336 lm/m	67.1 lm/W	50 mm	9 m
3000K	3 SDCM	—	CRI ≥90	346 lm/m	69.1 lm/W	50 mm	9 m
3500K	3 SDCM	—	CRI ≥90	360 lm/m	72 lm/W	50 mm	9 m
4000K	3 SDCM	—	CRI ≥90	366 lm/m	73.1 lm/W	50 mm	9 m
5000K	4 SDCM	—	CRI ≥90	370 lm/m	74 lm/W	50 mm	9 m
6500K	5 SDCM	—	CRI ≥90	364 lm/m	72.8 lm/W	50 mm	9 m
—	—	Red	—	146 lm/m	29.2 lm/W	50 mm	14 m
—	—	Green	—	425 lm/m	84.9 lm/W	50 mm	11 m
—	—	Blue	—	82 lm/m	16.4 lm/W	50 mm	10 m
—	—	Yellow	—	118 lm/m	23.5 lm/W	50 mm	11 m
—	—	Orange	—	123 lm/m	24.6 lm/W	50 mm	11 m
—	—	Pink	—	313 lm/m	62.6 lm/W	50 mm	9 m

NS-S1617V24-Cx-B — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	486 lm/m	48.6 lm/W	50 mm	7 m
2100K (+150/−150 K)	—	—	CRI ≥90	541 lm/m	54.1 lm/W	50 mm	7 m
2400K (+150/−150 K)	—	—	CRI ≥90	593 lm/m	59.3 lm/W	50 mm	7 m
2700K	3 SDCM	—	CRI ≥90	644 lm/m	64.4 lm/W	50 mm	7 m
3000K	3 SDCM	—	CRI ≥90	677 lm/m	67.7 lm/W	50 mm	7 m
3500K	3 SDCM	—	CRI ≥90	695 lm/m	69.5 lm/W	50 mm	7 m
4000K	3 SDCM	—	CRI ≥90	727 lm/m	72.7 lm/W	50 mm	7 m
5000K	4 SDCM	—	CRI ≥90	706 lm/m	70.6 lm/W	50 mm	7 m
6500K	5 SDCM	—	CRI ≥90	695 lm/m	69.5 lm/W	50 mm	7 m
—	—	Red	—	275 lm/m	27.5 lm/W	50 mm	10 m
—	—	Green	—	689 lm/m	68.9 lm/W	50 mm	9 m
—	—	Blue	—	142 lm/m	14.2 lm/W	50 mm	7 m
—	—	Yellow	—	219 lm/m	21.9 lm/W	50 mm	9 m
—	—	Orange	—	272 lm/m	27.2 lm/W	50 mm	9 m
—	—	Pink	—	586 lm/m	58.6 lm/W	50 mm	7 m

NS-S1617V24-Cx-B — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	701 lm/m	46.7 lm/W	50 mm	5 m
2100K (+150/−150 K)	—	—	CRI ≥90	786 lm/m	52.4 lm/W	50 mm	5 m
2400K (+150/−150 K)	—	—	CRI ≥90	854 lm/m	56.9 lm/W	50 mm	5 m
2700K	3 SDCM	—	CRI ≥90	921 lm/m	61.4 lm/W	50 mm	5 m
3000K	3 SDCM	—	CRI ≥90	947 lm/m	63.1 lm/W	50 mm	5 m
3500K	3 SDCM	—	CRI ≥90	992 lm/m	66.1 lm/W	50 mm	5 m
4000K	3 SDCM	—	CRI ≥90	990 lm/m	66 lm/W	50 mm	5 m
5000K	4 SDCM	—	CRI ≥90	1011 lm/m	67.4 lm/W	50 mm	5 m
6500K	5 SDCM	—	CRI ≥90	1005 lm/m	67 lm/W	50 mm	5 m
—	—	Red	—	429 lm/m	28.6 lm/W	50 mm	7 m
—	—	Green	—	911 lm/m	60.7 lm/W	50 mm	7 m
—	—	Blue	—	210 lm/m	14 lm/W	50 mm	5 m
—	—	Yellow	—	339 lm/m	22.6 lm/W	50 mm	7 m
—	—	Orange	—	401 lm/m	26.7 lm/W	50 mm	7 m
—	—	Pink	—	866 lm/m	57.7 lm/W	50 mm	5 m

NS-S1617V24-CCx-B — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	212 lm/m	42.4 lm/W	50 mm	24 m
2100K (+150/−150 K)	—	—	CRI ≥90	237 lm/m	47.4 lm/W	50 mm	24 m
2400K (+150/−150 K)	—	—	CRI ≥90	254 lm/m	50.8 lm/W	50 mm	24 m
2700K	3 SDCM	—	CRI ≥90	275 lm/m	55 lm/W	50 mm	24 m
3000K	3 SDCM	—	CRI ≥90	283 lm/m	56.7 lm/W	50 mm	24 m
3500K	3 SDCM	—	CRI ≥90	295 lm/m	59.1 lm/W	50 mm	24 m
4000K	3 SDCM	—	CRI ≥90	297 lm/m	59.4 lm/W	50 mm	24 m
5000K	4 SDCM	—	CRI ≥90	309 lm/m	61.7 lm/W	50 mm	24 m
6500K	5 SDCM	—	CRI ≥90	304 lm/m	60.8 lm/W	50 mm	24 m
—	—	Red	—	123 lm/m	24.5 lm/W	50 mm	32 m
—	—	Green	—	337 lm/m	67.3 lm/W	50 mm	20 m
—	—	Blue	—	65 lm/m	12.9 lm/W	50 mm	22 m
—	—	Yellow	—	90 lm/m	17.9 lm/W	50 mm	30 m
—	—	Orange	—	100 lm/m	20 lm/W	50 mm	30 m
—	—	Pink	—	248 lm/m	49.5 lm/W	50 mm	22 m

NS-S1617V24-CCx-B — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	403 lm/m	40.3 lm/W	50 mm	15 m
2100K (+150/−150 K)	—	—	CRI ≥90	449 lm/m	44.9 lm/W	50 mm	15 m
2400K (+150/−150 K)	—	—	CRI ≥90	489 lm/m	48.9 lm/W	50 mm	15 m
2700K	3 SDCM	—	CRI ≥90	528 lm/m	52.8 lm/W	50 mm	15 m
3000K	3 SDCM	—	CRI ≥90	555 lm/m	55.5 lm/W	50 mm	15 m
3500K	3 SDCM	—	CRI ≥90	570 lm/m	57 lm/W	50 mm	15 m
4000K	3 SDCM	—	CRI ≥90	591 lm/m	59.1 lm/W	50 mm	15 m
5000K	4 SDCM	—	CRI ≥90	588 lm/m	58.8 lm/W	50 mm	15 m
6500K	5 SDCM	—	CRI ≥90	580 lm/m	58 lm/W	50 mm	15 m
—	—	Red	—	244 lm/m	24.4 lm/W	50 mm	22 m
—	—	Green	—	558 lm/m	55.8 lm/W	50 mm	14 m
—	—	Blue	—	117 lm/m	11.7 lm/W	50 mm	15 m
—	—	Yellow	—	180 lm/m	18 lm/W	50 mm	21 m
—	—	Orange	—	216 lm/m	21.6 lm/W	50 mm	20 m
—	—	Pink	—	473 lm/m	47.3 lm/W	50 mm	15 m

NS-S1617V24-CCx-B — 15 W/m — CC

Max ambient: 35 °C · Outputs: White 1800K–6500K, 3 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	575 lm/m	38.3 lm/W	50 mm	12 m
2100K (+150/−150 K)	—	—	CRI ≥90	640 lm/m	42.7 lm/W	50 mm	12 m
2400K (+150/−150 K)	—	—	CRI ≥90	710 lm/m	47.4 lm/W	50 mm	12 m
2700K	3 SDCM	—	CRI ≥90	763 lm/m	50.8 lm/W	50 mm	12 m
3000K	3 SDCM	—	CRI ≥90	789 lm/m	52.6 lm/W	50 mm	12 m
3500K	3 SDCM	—	CRI ≥90	810 lm/m	54 lm/W	50 mm	12 m
4000K	3 SDCM	—	CRI ≥90	822 lm/m	54.8 lm/W	50 mm	12 m
5000K	4 SDCM	—	CRI ≥90	846 lm/m	56.4 lm/W	50 mm	12 m
6500K	5 SDCM	—	CRI ≥90	831 lm/m	55.4 lm/W	50 mm	12 m
—	—	Green	—	720 lm/m	48 lm/W	50 mm	9 m
—	—	Blue	—	165 lm/m	11 lm/W	50 mm	12 m
—	—	Pink	—	684 lm/m	45.6 lm/W	50 mm	12 m

NS-S1617V24-Ca-B — 11 W/m — CV

Max ambient: — · Outputs: White 2700K–6500K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	10 W/m	660 lm/m	66 lm/W	71.4 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	10 W/m	709 lm/m	70.9 lm/W	71.4 mm	5 m
Full output	—	CRI ≥90	11 W/m	789 lm/m	71.7 lm/W	71.4 mm	5 m

NS-S1617V24-Crgb-B — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	61 lm/m	18.6 lm/W	83.3 mm	5 m
Single channel	Green	3.3 W/m	227 lm/m	68.7 lm/W	83.3 mm	5 m
Single channel	Blue	3.3 W/m	38 lm/m	11.5 lm/W	83.3 mm	5 m
Full output	—	10 W/m	329 lm/m	32.9 lm/W	83.3 mm	5 m

NS-S1617V24-Crgbwx-B — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.7 W/m	70 lm/m	18.7 lm/W	83.3 mm	5 m
Single channel	—	Green	—	3.7 W/m	267 lm/m	71.3 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	3.7 W/m	49 lm/m	13 lm/W	83.3 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	3.7 W/m	227 lm/m	60.6 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	635 lm/m	42.3 lm/W	83.3 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	3.7 W/m	234 lm/m	62.4 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	644 lm/m	42.9 lm/W	83.3 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥90	3.7 W/m	244 lm/m	65 lm/W	83.3 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	660 lm/m	44 lm/W	83.3 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	3.7 W/m	248 lm/m	66 lm/W	83.3 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	665 lm/m	44.3 lm/W	83.3 mm	5 m

NS-S1617V24-Crgbwx-UCS512CL-8P-B — 15 W/m — DMX512

Max ambient: 35 °C · Outputs: White 4000K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	—	Red	—	5 W/m	60 lm/m	12 lm/W	125 mm	5 m	8 px/m	UCS512C1L
Single channel	—	Green	—	5 W/m	191 lm/m	38.1 lm/W	125 mm	5 m	8 px/m	UCS512C1L
Single channel	—	Blue	—	5 W/m	38 lm/m	7.6 lm/W	125 mm	5 m	8 px/m	UCS512C1L
Single channel	4000K (+400/−200 K)	—	CRI ≥80	5 W/m	161 lm/m	32.2 lm/W	125 mm	5 m	8 px/m	UCS512C1L
Full output	White channel: 4000K	—	—	15 W/m	456 lm/m	30.4 lm/W	125 mm	5 m	8 px/m	UCS512C1L
