NS-S1615

Bend Direction: Side Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 10–15 W/m
Warranty Years: 5 years

Overview

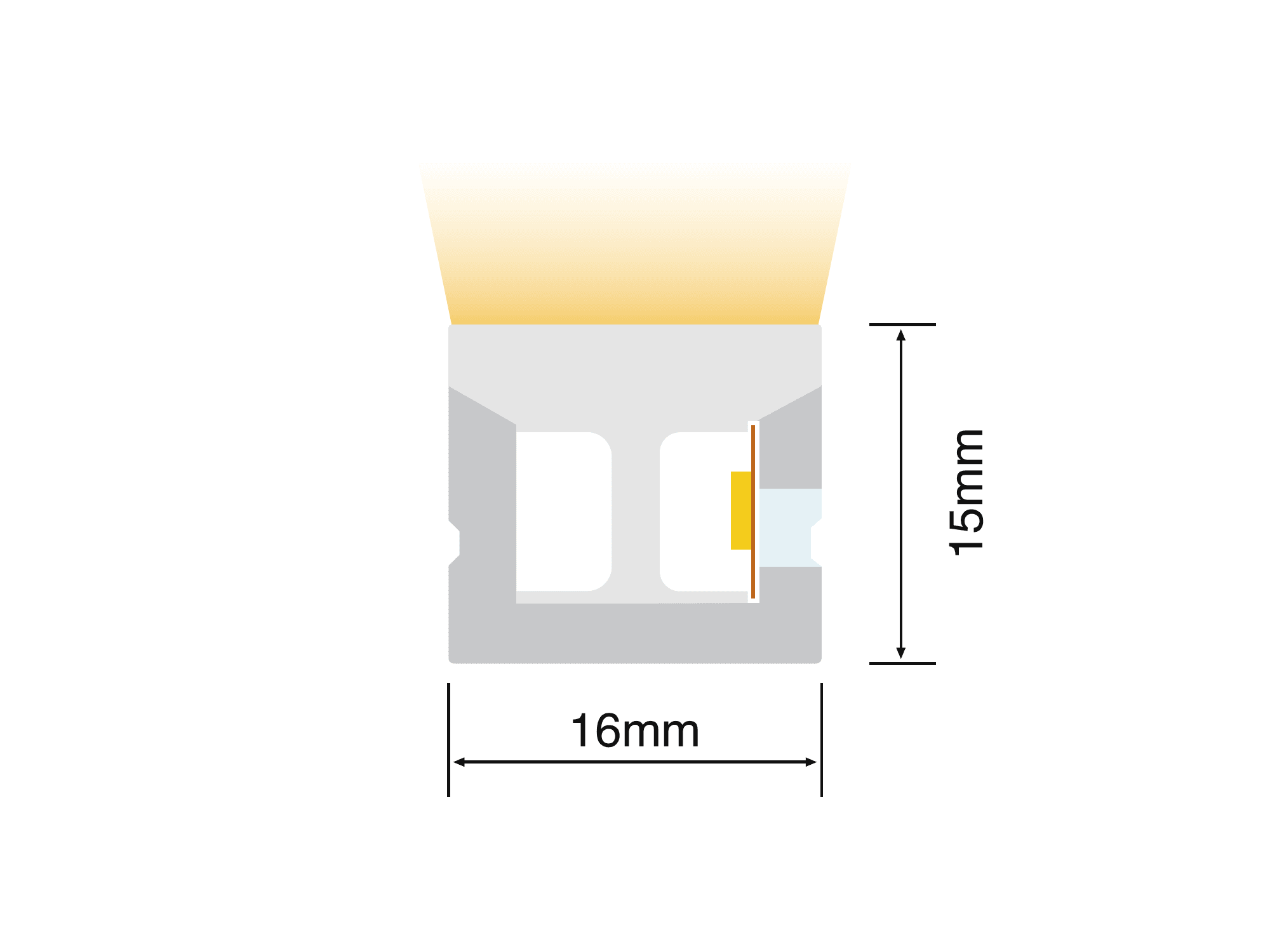

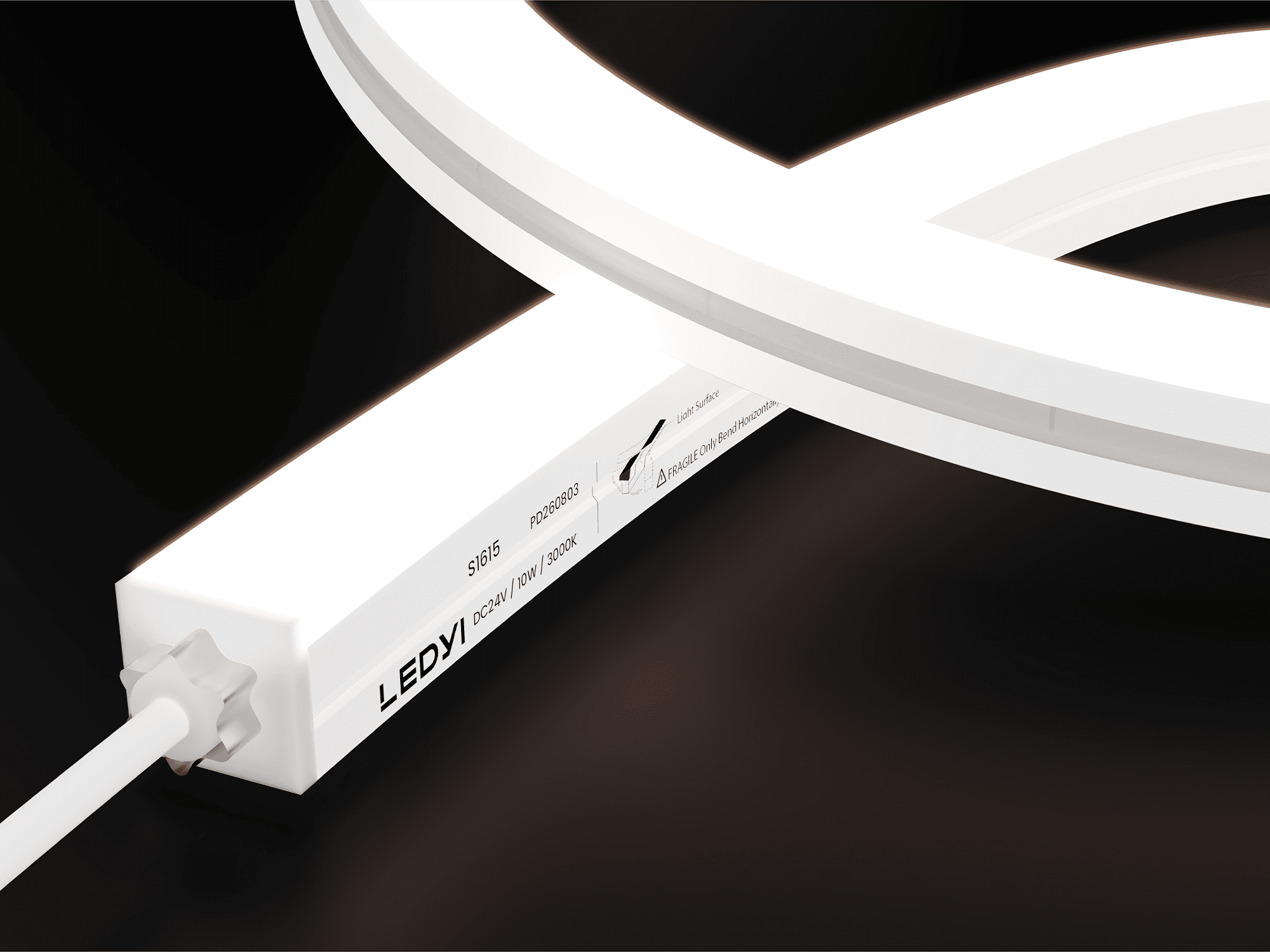

NS-S1615 is a side-bend silicone LED neon flex profile with a 16 mm by 15 mm cross section, DC 24 V input, and published single-color, free-cut, tunable-white, RGB, and RGBW configurations. Its integrated-extrusion Dow SILASTIC ET-7021 silicone housing combines high transparency and strength. The optical distribution structure provides a uniform illuminated surface without shadows, with IP67 resistance to salt solution, acids, alkalis, and UV.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NS-S1615, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "ns-s1615",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NS-S1615
Bend Direction	Side Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V
Cross Section Width	16 mm
Cross Section Height	15 mm
Power Options	10–15 W/m
Min Bend Diameter	200 mm
Max Run Length	5–18 m (configuration-specific)
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NS-S1615
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NS-S1615V24-CCx-D	DC 24 V	10 W/m	CC	—	White 2700K–6500K, 6 fixed colors	details ↓
2	NS-S1615V24MINI-Cx-D	DC 24 V	10 W/m	CV	—	White 2700K–6500K	details ↓
3	NS-S1615V24-Ca-D (SMD3014)	DC 24 V	15 W/m	CV	—	White 2700K–6500K	details ↓
4	NS-S1615V24-Ca-D (SMD2835)	DC 24 V	15 W/m	CV	—	White 2700K–6500K	details ↓
5	NS-S1615V24-Crgb-D	DC 24 V	15 W/m	CV	—	3 fixed colors, RGB	details ↓
6	NS-S1615V24-Crgbwx-D	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NS-S1615V24-CCx-D — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 2700K–6500K, 6 fixed colors

Photometric data — NS-S1615V24-CCx-D — 10 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
2700K (+150/−150 K)	—	CRI ≥90	534 lm/m	53.4 lm/W	50 mm	17 m
3000K (+150/−150 K)	—	CRI ≥90	530 lm/m	53 lm/W	50 mm	17 m
3500K (+200/−200 K)	—	CRI ≥90	569 lm/m	56.9 lm/W	50 mm	17 m
4000K (+400/−200 K)	—	CRI ≥90	563 lm/m	56.3 lm/W	50 mm	17 m
5000K (+500/−300 K)	—	CRI ≥90	588 lm/m	58.8 lm/W	50 mm	17 m
6500K (+500/−500 K)	—	CRI ≥90	576 lm/m	57.6 lm/W	50 mm	17 m
—	Red	—	260 lm/m	26 lm/W	50 mm	18 m
—	Green	—	540 lm/m	54 lm/W	50 mm	17 m
—	Blue	—	110 lm/m	11 lm/W	50 mm	17 m
—	Yellow	—	260 lm/m	26 lm/W	50 mm	18 m
—	Orange	—	240 lm/m	24 lm/W	50 mm	18 m
—	Pink	—	430 lm/m	43 lm/W	50 mm	17 m

NS-S1615V24MINI-Cx-D — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 2700K–6500K

Photometric data — NS-S1615V24MINI-Cx-D — 10 W/m — CV
Nominal CCT	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
2700K (+150/−150 K)	CRI ≥90	512 lm/m	51.2 lm/W	8.3 mm	5 m
3000K (+150/−150 K)	CRI ≥90	552 lm/m	55.2 lm/W	8.3 mm	5 m
3500K (+200/−200 K)	CRI ≥90	552 lm/m	55.2 lm/W	8.3 mm	5 m
4000K (+400/−200 K)	CRI ≥90	573 lm/m	57.3 lm/W	8.3 mm	5 m
5000K (+500/−300 K)	CRI ≥90	647 lm/m	64.7 lm/W	8.3 mm	5 m
6500K (+500/−500 K)	CRI ≥90	546 lm/m	54.6 lm/W	8.3 mm	5 m

NS-S1615V24-Ca-D (SMD3014) — 15 W/m — CV

Max ambient: — · Outputs: White 2700K–6500K

Photometric data — NS-S1615V24-Ca-D (SMD3014) — 15 W/m — CV
Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	7.5 W/m	398 lm/m	53.1 lm/W	50 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	7.5 W/m	416 lm/m	55.5 lm/W	50 mm	5 m
Full output	—	CRI ≥90	15 W/m	806 lm/m	53.7 lm/W	50 mm	5 m

NS-S1615V24-Ca-D (SMD2835) — 15 W/m — CV

Max ambient: — · Outputs: White 2700K–6500K

Photometric data — NS-S1615V24-Ca-D (SMD2835) — 15 W/m — CV
Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	7.5 W/m	398 lm/m	53.1 lm/W	62.5 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	7.5 W/m	422 lm/m	56.3 lm/W	62.5 mm	5 m
Full output	—	CRI ≥90	15 W/m	813 lm/m	54.2 lm/W	62.5 mm	5 m

NS-S1615V24-Crgb-D — 15 W/m — CV

Max ambient: — · Outputs: 3 fixed colors, RGB

Photometric data — NS-S1615V24-Crgb-D — 15 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	5 W/m	92 lm/m	18.4 lm/W	62.5 mm	5 m
Single channel	Green	5 W/m	221 lm/m	44.1 lm/W	62.5 mm	5 m
Single channel	Blue	5 W/m	52 lm/m	10.5 lm/W	62.5 mm	5 m
Full output	—	15 W/m	366 lm/m	24.4 lm/W	62.5 mm	5 m

NS-S1615V24-Crgbwx-D — 15 W/m — CV

Max ambient: — · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Photometric data — NS-S1615V24-Crgbwx-D — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.7 W/m	70 lm/m	18.7 lm/W	83.3 mm	5 m
Single channel	—	Green	—	3.7 W/m	240 lm/m	63.9 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	3.7 W/m	47 lm/m	12.5 lm/W	83.3 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	3.7 W/m	226 lm/m	60.2 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	577 lm/m	38.5 lm/W	83.3 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	3.7 W/m	224 lm/m	59.8 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	575 lm/m	38.3 lm/W	83.3 mm	5 m
Single channel	3500K (+200/−200 K)	—	CRI ≥90	3.7 W/m	240 lm/m	63.9 lm/W	83.3 mm	5 m
Full output	White channel: 3500K	—	—	15 W/m	596 lm/m	39.7 lm/W	83.3 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥90	3.7 W/m	235 lm/m	62.8 lm/W	83.3 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	590 lm/m	39.3 lm/W	83.3 mm	5 m
Single channel	5000K (+500/−300 K)	—	CRI ≥90	3.7 W/m	244 lm/m	65 lm/W	83.3 mm	5 m
Full output	White channel: 5000K	—	—	15 W/m	593 lm/m	39.5 lm/W	83.3 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	3.7 W/m	238 lm/m	63.4 lm/W	83.3 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	593 lm/m	39.5 lm/W	83.3 mm	5 m
