NS-S1220

Last updated: 2026-08-13

Bend Direction	Side Bend
IP Rating	IP67
Input Voltage	DC 24 V
Power Options	5–15 W/m
Warranty Years	5 years

About NS-S1220

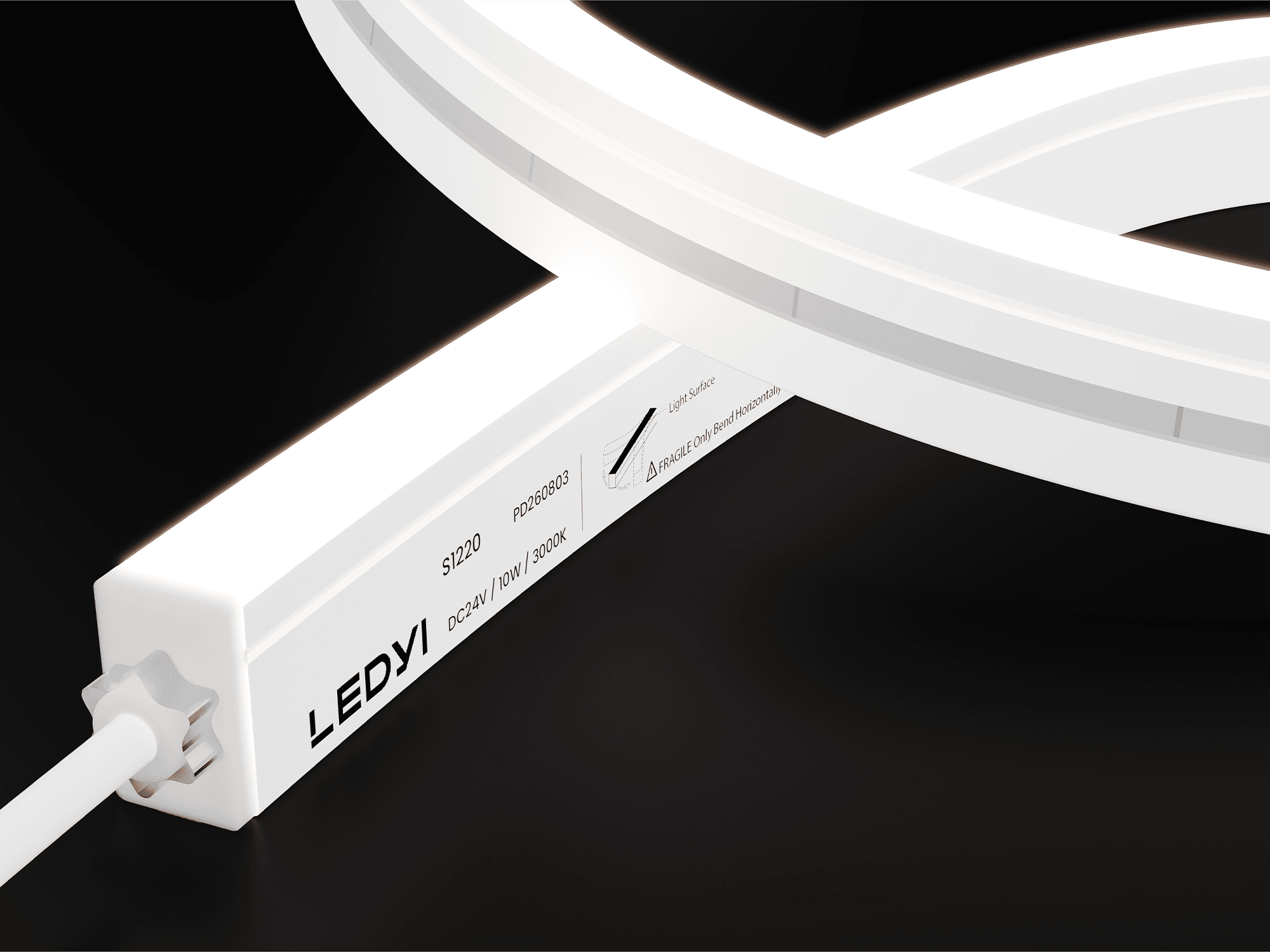

NS-S1220 is a side-bend silicone LED neon flex profile with a 12 mm by 20 mm cross section, DC 24 V input, and published single-color, free-cut, tunable-white, RGB, RGBW, and DMX512 configurations. Its integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high transparency and strength, while the optical structure produces a uniform, shadow-free surface. The IP67 housing resists salt solution, acids, alkalis, corrosive gases, fire, and UV.

NS-S1220 Specifications

Specifications for NS-S1220
Bend Direction	Side Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

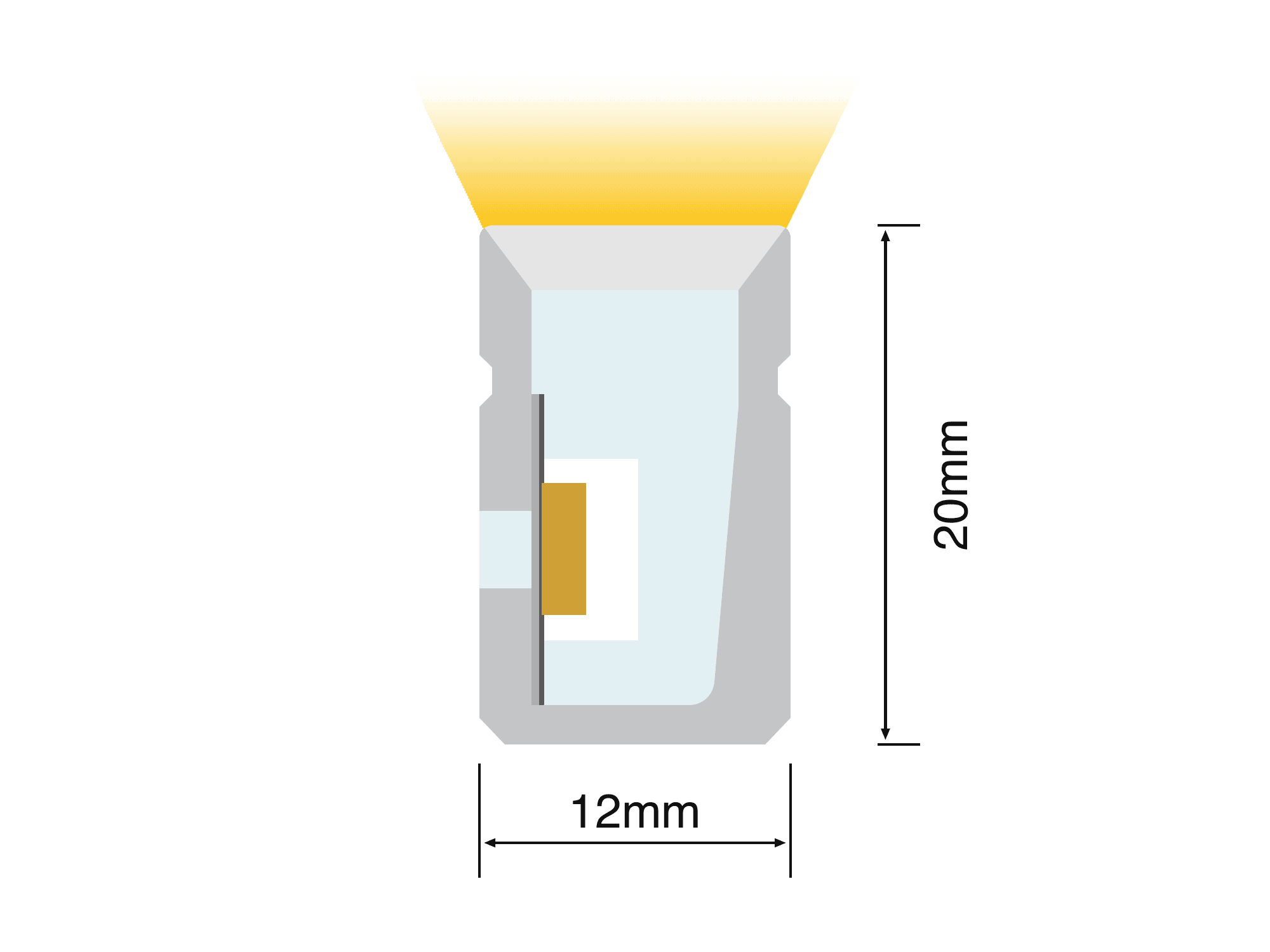

Cross Section Width	12 mm
Cross Section Height	20 mm
Power Options	5–15 W/m
Min Bend Diameter	150 mm
Max Run Length	up to 35 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

NS-S1220 Ordering Information

Ordering information for NS-S1220
#	Ordering Code	Input	Power	Drive	Protocol	Outputs
1	NS-S1220V24-Cx-B	DC 24 V	5 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-S1220V24-Cx-B	DC 24 V	10 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-S1220V24-Cx-B	DC 24 V	15 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
4	NS-S1220V24-CCx-B	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
5	NS-S1220V24-CCx-B	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
6	NS-S1220V24-CCx-B	DC 24 V	15 W/m	CC	—	White 1800K–6500K, 3 fixed colors	details ↓
7	NS-S1220V24MINI-Cx-B	DC 24 V	10 W/m	CV	—	White 1800K–6500K	details ↓
8	NS-S1220V24-Ca-B	DC 24 V	11 W/m	CV	—	White 2700K–6500K	details ↓
9	NS-S1220V24-Crgb-B	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓
10	NS-S1220V24-CCrgb-B	DC 24 V	11 W/m	CC	—	3 fixed colors, RGB	details ↓
11	NS-S1220V24-Crgbwx-UCS512C1L-8P-B	DC 24 V	15 W/m	—	DMX512	White 4000K, 3 fixed colors, RGBW	details ↓
12	NS-S1220V24-Crgbwx-B	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
13	NS-S1220V24-CCrgbwx-B	DC 24 V	15 W/m	CC	—	White 4000K, 3 fixed colors, RGBW	details ↓

Ordering codes are order templates — one code may cover several power variants. Each configuration below is one sellable combination.

NS-S1220 Photometric Data

NS-S1220V24-Cx-B — 5 W/m — CV

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	241 lm/m	48.2 lm/W	50 mm	10 m
2100K (+150/−150 K)	—	—	CRI ≥90	274 lm/m	54.8 lm/W	50 mm	10 m
2400K (+150/−150 K)	—	—	CRI ≥90	300 lm/m	60 lm/W	50 mm	10 m
2700K	3 SDCM	—	CRI ≥90	313 lm/m	62.7 lm/W	50 mm	10 m
3000K	3 SDCM	—	CRI ≥90	324 lm/m	64.7 lm/W	50 mm	10 m
3500K	3 SDCM	—	CRI ≥90	306 lm/m	61.2 lm/W	50 mm	10 m
4000K	3 SDCM	—	CRI ≥90	313 lm/m	62.6 lm/W	50 mm	10 m
5000K	4 SDCM	—	CRI ≥90	320 lm/m	64 lm/W	50 mm	10 m
6500K	5 SDCM	—	CRI ≥90	319 lm/m	63.7 lm/W	50 mm	10 m
—	—	Red	—	134 lm/m	26.7 lm/W	50 mm	15 m
—	—	Green	—	362 lm/m	72.3 lm/W	50 mm	12 m
—	—	Blue	—	62 lm/m	12.4 lm/W	50 mm	8 m
—	—	Yellow	—	98 lm/m	19.6 lm/W	50 mm	13 m
—	—	Orange	—	115 lm/m	20.1 lm/W	50 mm	13 m
—	—	Pink	—	279 lm/m	55.8 lm/W	50 mm	10 m

NS-S1220V24-Cx-B — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	459 lm/m	45.9 lm/W	50 mm	7 m
2100K (+150/−150 K)	—	—	CRI ≥90	522 lm/m	52.2 lm/W	50 mm	7 m
2400K (+150/−150 K)	—	—	CRI ≥90	574 lm/m	57.4 lm/W	50 mm	7 m
2700K	3 SDCM	—	CRI ≥90	597 lm/m	59.7 lm/W	50 mm	7 m
3000K	3 SDCM	—	CRI ≥90	618 lm/m	61.8 lm/W	50 mm	7 m
3500K	3 SDCM	—	CRI ≥90	583 lm/m	58.3 lm/W	50 mm	7 m
4000K	3 SDCM	—	CRI ≥90	603 lm/m	60.3 lm/W	50 mm	7 m
5000K	4 SDCM	—	CRI ≥90	615 lm/m	61.5 lm/W	50 mm	7 m
6500K	5 SDCM	—	CRI ≥90	614 lm/m	61.4 lm/W	50 mm	7 m
—	—	Red	—	268 lm/m	26.8 lm/W	50 mm	9 m
—	—	Green	—	601 lm/m	60.1 lm/W	50 mm	9 m
—	—	Blue	—	118 lm/m	11.8 lm/W	50 mm	6 m
—	—	Yellow	—	201 lm/m	20.1 lm/W	50 mm	8 m
—	—	Orange	—	250 lm/m	25 lm/W	50 mm	9 m
—	—	Pink	—	536 lm/m	53.6 lm/W	50 mm	6 m

NS-S1220V24-Cx-B — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	657 lm/m	43.8 lm/W	50 mm	5 m
2100K (+150/−150 K)	—	—	CRI ≥90	747 lm/m	49.8 lm/W	50 mm	5 m
2400K (+150/−150 K)	—	—	CRI ≥90	828 lm/m	55.2 lm/W	50 mm	5 m
2700K	3 SDCM	—	CRI ≥90	854 lm/m	56.9 lm/W	50 mm	5 m
3000K	3 SDCM	—	CRI ≥90	892 lm/m	59.5 lm/W	50 mm	5 m
3500K	3 SDCM	—	CRI ≥90	834 lm/m	55.6 lm/W	50 mm	5 m
4000K	3 SDCM	—	CRI ≥90	876 lm/m	58.4 lm/W	50 mm	5 m
5000K	4 SDCM	—	CRI ≥90	891 lm/m	59.4 lm/W	50 mm	5 m
6500K	5 SDCM	—	CRI ≥90	891 lm/m	59.4 lm/W	50 mm	5 m
—	—	Red	—	395 lm/m	26.3 lm/W	50 mm	7 m
—	—	Green	—	776 lm/m	51.7 lm/W	50 mm	7 m
—	—	Blue	—	164 lm/m	10.9 lm/W	50 mm	5 m
—	—	Yellow	—	287 lm/m	19.1 lm/W	50 mm	7 m
—	—	Orange	—	357 lm/m	23.8 lm/W	50 mm	7 m
—	—	Pink	—	776 lm/m	51.7 lm/W	50 mm	5 m

NS-S1220V24-CCx-B — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	206 lm/m	41.3 lm/W	50 mm	27 m
2100K (+150/−150 K)	—	—	CRI ≥90	235 lm/m	47 lm/W	50 mm	27 m
2400K (+150/−150 K)	—	—	CRI ≥90	257 lm/m	51.4 lm/W	50 mm	27 m
2700K	3 SDCM	—	CRI ≥90	269 lm/m	53.7 lm/W	50 mm	27 m
3000K	3 SDCM	—	CRI ≥90	277 lm/m	55.5 lm/W	50 mm	27 m
3500K	3 SDCM	—	CRI ≥90	262 lm/m	52.5 lm/W	50 mm	27 m
4000K	3 SDCM	—	CRI ≥90	268 lm/m	53.6 lm/W	50 mm	27 m
5000K	4 SDCM	—	CRI ≥90	274 lm/m	54.9 lm/W	50 mm	27 m
6500K	5 SDCM	—	CRI ≥90	273 lm/m	54.6 lm/W	50 mm	27 m
—	—	Red	—	115 lm/m	22.9 lm/W	50 mm	35 m
—	—	Green	—	310 lm/m	62 lm/W	50 mm	27 m
—	—	Blue	—	53 lm/m	10.7 lm/W	50 mm	27 m
—	—	Yellow	—	84 lm/m	16.8 lm/W	50 mm	35 m
—	—	Orange	—	86 lm/m	17.2 lm/W	50 mm	35 m
—	—	Pink	—	239 lm/m	47.9 lm/W	50 mm	27 m

NS-S1220V24-CCx-B — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	393 lm/m	39.3 lm/W	50 mm	18 m
2100K (+150/−150 K)	—	—	CRI ≥90	447 lm/m	44.7 lm/W	50 mm	18 m
2400K (+150/−150 K)	—	—	CRI ≥90	492 lm/m	49.2 lm/W	50 mm	18 m
2700K	3 SDCM	—	CRI ≥90	512 lm/m	51.2 lm/W	50 mm	18 m
3000K	3 SDCM	—	CRI ≥90	530 lm/m	53 lm/W	50 mm	18 m
3500K	3 SDCM	—	CRI ≥90	500 lm/m	50 lm/W	50 mm	18 m
4000K	3 SDCM	—	CRI ≥90	517 lm/m	51.7 lm/W	50 mm	18 m
5000K	4 SDCM	—	CRI ≥90	527 lm/m	52.7 lm/W	50 mm	18 m
6500K	5 SDCM	—	CRI ≥90	526 lm/m	52.6 lm/W	50 mm	18 m
—	—	Red	—	230 lm/m	23 lm/W	50 mm	18 m
—	—	Green	—	515 lm/m	51.5 lm/W	50 mm	16 m
—	—	Blue	—	101 lm/m	10.1 lm/W	50 mm	18 m
—	—	Yellow	—	172 lm/m	17.2 lm/W	50 mm	18 m
—	—	Orange	—	214 lm/m	21.4 lm/W	50 mm	18 m
—	—	Pink	—	459 lm/m	45.9 lm/W	50 mm	18 m

NS-S1220V24-CCx-B — 15 W/m — CC

Max ambient: 35 °C · Outputs: White 1800K–6500K, 3 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	563 lm/m	37.5 lm/W	50 mm	12 m
2100K (+150/−150 K)	—	—	CRI ≥90	640 lm/m	42.7 lm/W	50 mm	12 m
2400K (+150/−150 K)	—	—	CRI ≥90	710 lm/m	47.3 lm/W	50 mm	12 m
2700K	3 SDCM	—	CRI ≥90	732 lm/m	48.8 lm/W	50 mm	12 m
3000K	3 SDCM	—	CRI ≥90	765 lm/m	51 lm/W	50 mm	12 m
3500K	3 SDCM	—	CRI ≥90	715 lm/m	47.7 lm/W	50 mm	12 m
4000K	3 SDCM	—	CRI ≥90	751 lm/m	50.1 lm/W	50 mm	12 m
5000K	4 SDCM	—	CRI ≥90	764 lm/m	50.9 lm/W	50 mm	12 m
6500K	5 SDCM	—	CRI ≥90	764 lm/m	50.9 lm/W	50 mm	12 m
—	—	Green	—	665 lm/m	44.3 lm/W	50 mm	10 m
—	—	Blue	—	141 lm/m	9.4 lm/W	50 mm	12 m
—	—	Pink	—	665 lm/m	44.3 lm/W	50 mm	12 m

NS-S1220V24MINI-Cx-B — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 1800K–6500K

Nominal CCT	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	CRI ≥90	464 lm/m	46.4 lm/W	8.3 mm	5 m
2100K (+150/−150 K)	CRI ≥90	552 lm/m	55.2 lm/W	8.3 mm	5 m
2400K (+150/−150 K)	CRI ≥90	591 lm/m	59.1 lm/W	8.3 mm	5 m
2700K	CRI ≥90	615 lm/m	61.5 lm/W	8.3 mm	5 m
3000K	CRI ≥90	636 lm/m	63.6 lm/W	8.3 mm	5 m
3500K	CRI ≥90	650 lm/m	65 lm/W	8.3 mm	5 m
4000K	CRI ≥90	632 lm/m	63.2 lm/W	8.3 mm	5 m
5000K	CRI ≥90	641 lm/m	64.1 lm/W	8.3 mm	5 m
6500K	CRI ≥90	620 lm/m	62 lm/W	8.3 mm	5 m

NS-S1220V24-Ca-B — 11 W/m — CV

Max ambient: — · Outputs: White 2700K–6500K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	9.5 W/m	516 lm/m	54.3 lm/W	71.4 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	9.5 W/m	521 lm/m	54.8 lm/W	71.4 mm	5 m
Full output	—	CRI ≥90	11 W/m	626 lm/m	56.9 lm/W	71.4 mm	5 m

NS-S1220V24-Crgb-B — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	56 lm/m	16.9 lm/W	83.3 mm	5 m
Single channel	Green	3.3 W/m	180 lm/m	54.5 lm/W	83.3 mm	5 m
Single channel	Blue	3.3 W/m	31 lm/m	9.3 lm/W	83.3 mm	5 m
Full output	—	10 W/m	256 lm/m	25.6 lm/W	83.3 mm	5 m

NS-S1220V24-CCrgb-B — 11 W/m — CC

Max ambient: — · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.6 W/m	50 lm/m	14 lm/W	125 mm	13 m
Single channel	Green	3.6 W/m	190 lm/m	53 lm/W	125 mm	13 m
Single channel	Blue	3.6 W/m	32 lm/m	9 lm/W	125 mm	13 m
Full output	—	11 W/m	273 lm/m	25 lm/W	125 mm	13 m

NS-S1220V24-Crgbwx-UCS512C1L-8P-B — 15 W/m — DMX512

Max ambient: 35 °C · Outputs: White 4000K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	—	Red	—	5 W/m	37 lm/m	7.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Green	—	5 W/m	109 lm/m	21.9 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Blue	—	5 W/m	25 lm/m	4.9 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	4000K (+400/−200 K)	—	CRI ≥80	5 W/m	121 lm/m	24.1 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	White channel: 4000K	—	—	15 W/m	291 lm/m	19.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L

NS-S1220V24-Crgbwx-B — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.8 W/m	65 lm/m	17 lm/W	83.3 mm	5 m
Single channel	—	Green	—	3.8 W/m	229 lm/m	61 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	3.8 W/m	42 lm/m	11 lm/W	83.3 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	3.8 W/m	209 lm/m	56 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	548 lm/m	37 lm/W	83.3 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	3.8 W/m	219 lm/m	58 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	567 lm/m	38 lm/W	83.3 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥90	3.8 W/m	212 lm/m	57 lm/W	83.3 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	558 lm/m	37 lm/W	83.3 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	3.8 W/m	213 lm/m	57 lm/W	83.3 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	554 lm/m	37 lm/W	83.3 mm	5 m

NS-S1220V24-CCrgbwx-B — 15 W/m — CC

Max ambient: 35 °C · Outputs: White 4000K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.6 W/m	54 lm/m	15 lm/W	125 mm	10 m
Single channel	—	Green	—	3.6 W/m	130 lm/m	36 lm/W	125 mm	10 m
Single channel	—	Blue	—	3.6 W/m	35 lm/m	10 lm/W	125 mm	10 m
Single channel	4000K (+300/−300 K)	—	CRI ≥90	3.6 W/m	156 lm/m	43 lm/W	125 mm	10 m
Full output	White channel: 4000K	—	—	15 W/m	380 lm/m	25 lm/W	125 mm	10 m

NS-S1220 Downloads

Specification SheetPDF · 4.5 MB

Download

NS-S1220 Integrating Sphere Test ReportZIP · 4.7 MB

Request download

Leave your contact details to receive this file by email.

NS-S1220 IES Photometric FilesZIP · 51.3 MB

Request download

Leave your contact details to receive this file by email.

Related Products

NS-T2020
Top-bend IP67 silicone LED neon flex in a 20 mm by 20 mm cross section.NS-R16
Round-profile top-bend IP67 silicone LED neon flex with a 16 mm by 15.5 mm cross section.NS-S0408
Ultra-slim 4 mm side-bend IP65 silicone neon flex with a uniform, shadow-free illuminated surface.
