Specification SheetPDF · 1.8 MB
DownloadNS-S1023
Series: Side Bend Neon
Last updated:
| Bend Direction | Side Bend |
|---|---|
| IP Rating | IP67 |
| Input Voltage | DC 24 V |
| Power Options | 10 W/m |
| Warranty Years | 5 years |
About NS-S1023

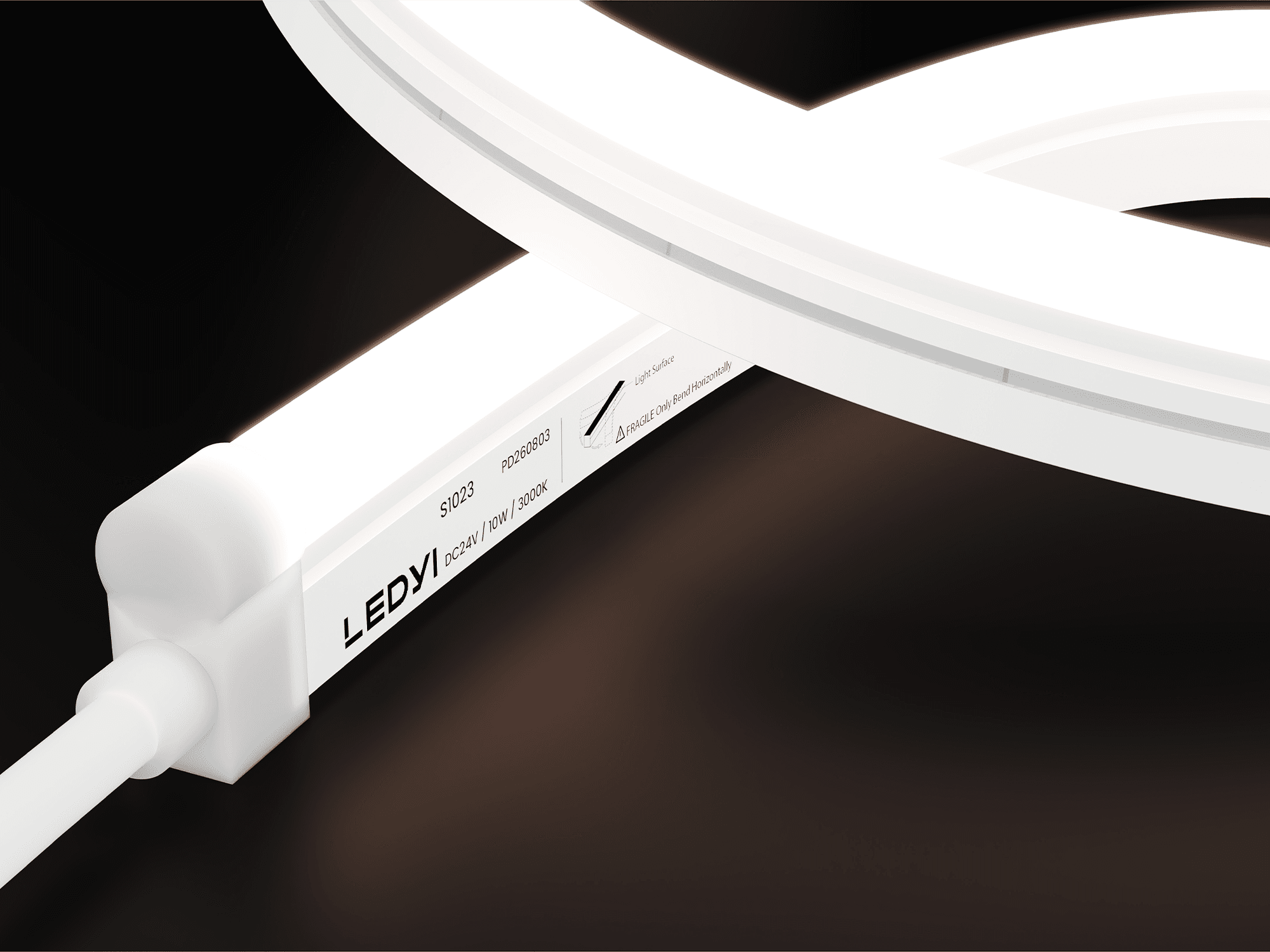

NS-S1023 is a side-bend silicone LED neon flex profile with a 12.5 mm by 23 mm cross section, DC 24 V input, and published single-color, tunable-white, and RGB configurations. Its integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high transparency and strength. The optical distribution structure produces a uniform, shadow-free illuminated surface, with IP67 resistance to salt solution, acids, alkalis, and UV.
NS-S1023 Specifications
| Bend Direction | Side Bend |
|---|---|
| IP Rating | IP67 |
| Material | Silicone |
| Housing Color | Milky White |
| Color Temperature | 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K |
| Fixed Colors | Red · Green · Blue · Yellow · Pink |
| Input Voltage | DC 24 V |

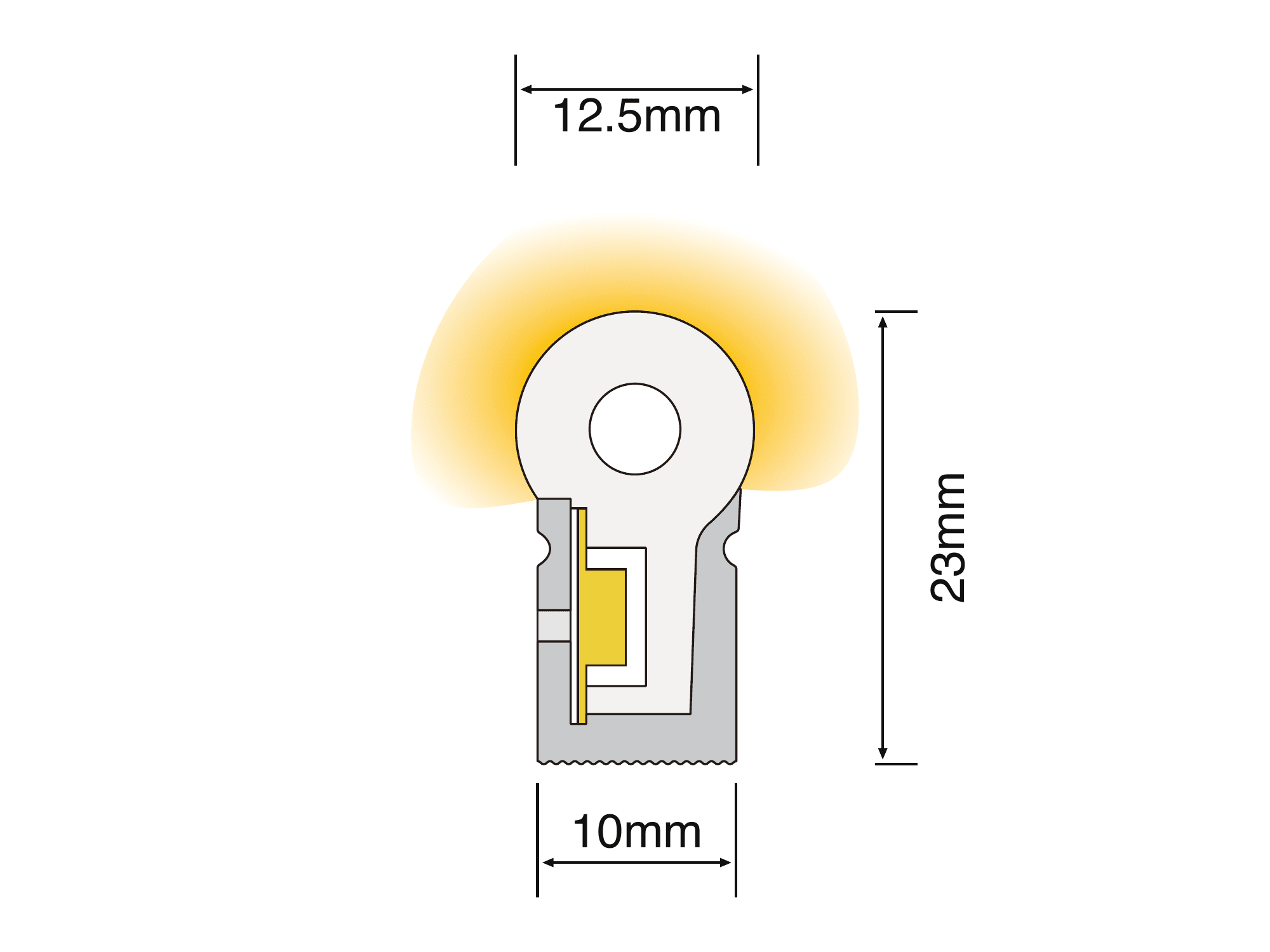

| Cross Section Width | 12.5 mm |
| Cross Section Height | 23 mm |
| Power Options | 10 W/m |
| Min Bend Diameter | 150 mm |
| Max Run Length | up to 18 m |
| Min Operating Temp | -25 °C |
| Warranty Years | 5 years |
This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.
NS-S1023 Ordering Information
NS-S1023 Photometric Data
NS-S1023V24-CCx-A — 10 W/m — CC
| Nominal CCT | Fixed Color | CRI Grade | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|
| 2100K (+150/−150 K) | — | CRI ≥90 | 310 lm/m | 31 lm/W | 50 mm | 17 m |
| 2400K (+150/−150 K) | — | CRI ≥90 | 320 lm/m | 32 lm/W | 50 mm | 17 m |
| 2700K (+150/−150 K) | — | CRI ≥90 | 350 lm/m | 35 lm/W | 50 mm | 17 m |
| 3000K (+150/−150 K) | — | CRI ≥90 | 350 lm/m | 35 lm/W | 50 mm | 17 m |
| 3500K (+200/−200 K) | — | CRI ≥90 | 380 lm/m | 38 lm/W | 50 mm | 17 m |
| 4000K (+400/−200 K) | — | CRI ≥90 | 390 lm/m | 39 lm/W | 50 mm | 17 m |
| 5000K (+500/−300 K) | — | CRI ≥90 | 380 lm/m | 38 lm/W | 50 mm | 17 m |
| 6500K (+500/−500 K) | — | CRI ≥90 | 350 lm/m | 35 lm/W | 50 mm | 17 m |
| — | Red | — | 150 lm/m | 15 lm/W | 50 mm | 18 m |
| — | Green | — | 405 lm/m | 40.5 lm/W | 50 mm | 17 m |
| — | Blue | — | 75 lm/m | 7.5 lm/W | 50 mm | 17 m |
| — | Yellow | — | 125 lm/m | 12.5 lm/W | 50 mm | 18 m |
| — | Pink | — | 160 lm/m | 16 lm/W | 50 mm | 17 m |
NS-S1023V24-Ca-A — 10 W/m — CV
| Output State | Nominal CCT | CRI Grade | Power Draw Per Meter | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|---|
| Single channel | 2700K (+150/−150 K) | CRI ≥90 | 5 W/m | 180 lm/m | 36 lm/W | 50 mm | 5 m |
| Single channel | 6500K (+500/−500 K) | CRI ≥90 | 5 W/m | 190 lm/m | 38 lm/W | 50 mm | 5 m |
| Full output | — | CRI ≥90 | 10 W/m | 360 lm/m | 36 lm/W | 50 mm | 5 m |
NS-S1023V24-Crgb-A — 10 W/m — CV
| Output State | Fixed Color | Power Draw Per Meter | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|
| Single channel | Red | 3.3 W/m | 33 lm/m | 10 lm/W | 62.5 mm | 5 m |
| Single channel | Green | 3.3 W/m | 97 lm/m | 29.5 lm/W | 62.5 mm | 5 m |
| Single channel | Blue | 3.3 W/m | 19 lm/m | 6 lm/W | 62.5 mm | 5 m |
| Full output | — | 10 W/m | 145 lm/m | 14.5 lm/W | 62.5 mm | 5 m |
