NS-S0817

Last updated: 2026-08-13

Bend Direction	Side Bend
IP Rating	IP67
Input Voltage	DC 24 V
Power Options	5–10 W/m
Warranty Years	5 years

About NS-S0817

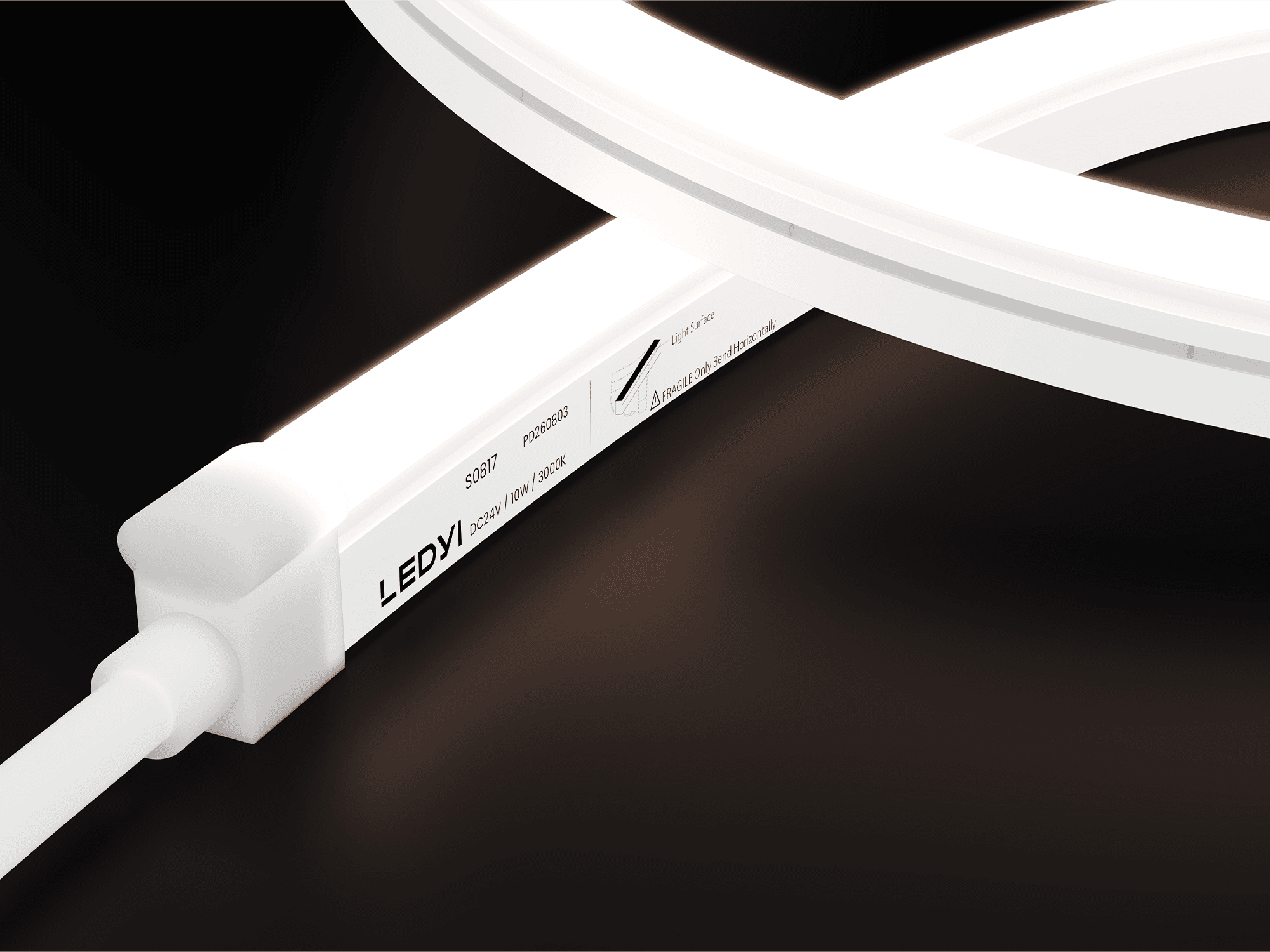

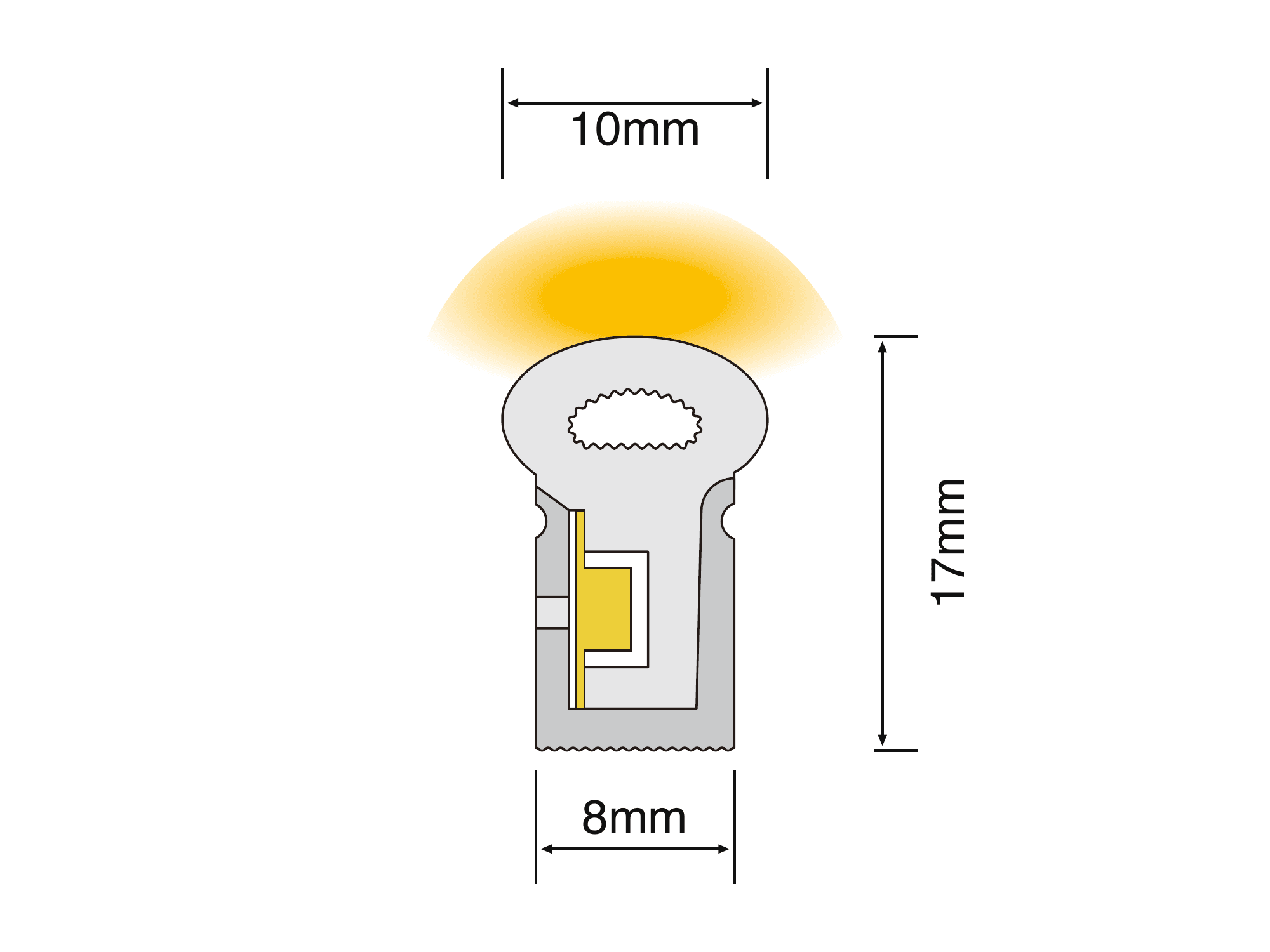

NS-S0817 is a side-bend silicone LED neon flex profile with an 8 mm by 17 mm cross section, DC 24 V input, and published single-color, tunable-white, and RGB configurations. Its integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high transparency and strength. The optical distribution structure produces a uniform illuminated surface without shadows, with IP67 resistance to salt solution, acids, alkalis, and UV.

NS-S0817 Specifications

Specifications for NS-S0817
Bend Direction	Side Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V
Cross Section Width	8 mm
Cross Section Height	17 mm
Power Options	5–10 W/m
Min Bend Diameter	100 mm
Max Run Length	up to 25 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

NS-S0817 Ordering Information

Ordering information for NS-S0817
#	Ordering Code	Input	Power	Drive	Protocol	Outputs
1	NS-S0817V24-CCx-A	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-S0817V24-CCx-A	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-S0817V24-Ca-A (SMD2835)	DC 24 V	10 W/m	CV	—	White 2700K–6000K	details ↓
4	NS-S0817V24-Ca-A (SMD3014)	DC 24 V	10 W/m	CV	—	White 2700K–6000K	details ↓
5	NS-S0817V24-Crgb-A (SMD4040)	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓
6	NS-S0817V24-Crgb-A (SMD2835)	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓

Ordering codes are order templates — one code may cover several power variants. Each configuration below is one sellable combination.

NS-S0817 Photometric Data

NS-S0817V24-CCx-A — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	205 lm/m	40.9 lm/W	50 mm	19 m
2100K (+150/−150 K)	—	CRI ≥90	215 lm/m	43 lm/W	50 mm	19 m
2400K (+150/−150 K)	—	CRI ≥90	225 lm/m	44.9 lm/W	50 mm	19 m
2700K (+150/−150 K)	—	CRI ≥90	243 lm/m	48.6 lm/W	50 mm	19 m
3000K (+150/−150 K)	—	CRI ≥90	234 lm/m	46.8 lm/W	50 mm	19 m
3500K (+200/−200 K)	—	CRI ≥90	233 lm/m	46.6 lm/W	50 mm	19 m
4000K (+400/−200 K)	—	CRI ≥90	248 lm/m	49.6 lm/W	50 mm	19 m
5000K (+500/−300 K)	—	CRI ≥90	249 lm/m	49.8 lm/W	50 mm	19 m
6500K (+500/−500 K)	—	CRI ≥90	228 lm/m	45.7 lm/W	50 mm	19 m
—	Red	—	98 lm/m	19.6 lm/W	50 mm	25 m
—	Green	—	283 lm/m	56.6 lm/W	50 mm	19 m
—	Blue	—	47 lm/m	9.5 lm/W	50 mm	19 m
—	Yellow	—	70 lm/m	13.9 lm/W	50 mm	25 m
—	Orange	—	89 lm/m	17.9 lm/W	50 mm	25 m
—	Pink	—	197 lm/m	39.4 lm/W	50 mm	19 m

NS-S0817V24-CCx-A — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	390 lm/m	39 lm/W	50 mm	13 m
2100K (+150/−150 K)	—	CRI ≥90	410 lm/m	41 lm/W	50 mm	13 m
2400K (+150/−150 K)	—	CRI ≥90	430 lm/m	43 lm/W	50 mm	13 m
2700K (+150/−150 K)	—	CRI ≥90	463 lm/m	46.3 lm/W	50 mm	13 m
3000K (+150/−150 K)	—	CRI ≥90	447 lm/m	44.7 lm/W	50 mm	13 m
3500K (+200/−200 K)	—	CRI ≥90	444 lm/m	44.4 lm/W	50 mm	13 m
4000K (+400/−200 K)	—	CRI ≥90	478 lm/m	47.8 lm/W	50 mm	13 m
5000K (+500/−300 K)	—	CRI ≥90	478 lm/m	47.8 lm/W	50 mm	13 m
6500K (+500/−500 K)	—	CRI ≥90	440 lm/m	44 lm/W	50 mm	13 m
—	Red	—	196 lm/m	19.6 lm/W	50 mm	18 m
—	Green	—	470 lm/m	47 lm/W	50 mm	13 m
—	Blue	—	90 lm/m	9 lm/W	50 mm	13 m
—	Yellow	—	143 lm/m	14.3 lm/W	50 mm	18 m
—	Orange	—	194 lm/m	19.4 lm/W	50 mm	18 m
—	Pink	—	378 lm/m	37.8 lm/W	50 mm	13 m

NS-S0817V24-Ca-A (SMD2835) — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 2700K–6000K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	5 W/m	204 lm/m	40.7 lm/W	62.5 mm	5 m
Single channel	6000K (+500/−500 K)	CRI ≥90	5 W/m	204 lm/m	40.8 lm/W	62.5 mm	5 m
Full output	—	CRI ≥90	10 W/m	406 lm/m	40.6 lm/W	62.5 mm	5 m

NS-S0817V24-Ca-A (SMD3014) — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 2700K–6000K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	5 W/m	182 lm/m	36.4 lm/W	50 mm	5 m
Single channel	6000K (+500/−500 K)	CRI ≥90	5 W/m	208 lm/m	41.6 lm/W	50 mm	5 m
Full output	—	CRI ≥90	10 W/m	387 lm/m	38.7 lm/W	50 mm	5 m

NS-S0817V24-Crgb-A (SMD4040) — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	44 lm/m	13.4 lm/W	62.5 mm	5 m
Single channel	Green	3.3 W/m	129 lm/m	39.1 lm/W	62.5 mm	5 m
Single channel	Blue	3.3 W/m	25 lm/m	7.5 lm/W	62.5 mm	5 m
Full output	—	10 W/m	200 lm/m	20 lm/W	62.5 mm	5 m

NS-S0817V24-Crgb-A (SMD2835) — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	39 lm/m	11.7 lm/W	50 mm	5 m
Single channel	Green	3.3 W/m	109 lm/m	33 lm/W	50 mm	5 m
Single channel	Blue	3.3 W/m	18 lm/m	5.4 lm/W	50 mm	5 m
Full output	—	10 W/m	170 lm/m	17 lm/W	50 mm	5 m
