DownloadNS-T5025
Series: Top Bend Neon
Last updated:
| Bend Direction | Top Bend |
|---|---|
| IP Rating | IP67 |
| Input Voltage | DC 24 V |
| Power Options | 15 W/m |
| Warranty Years | 5 years |
About NS-T5025

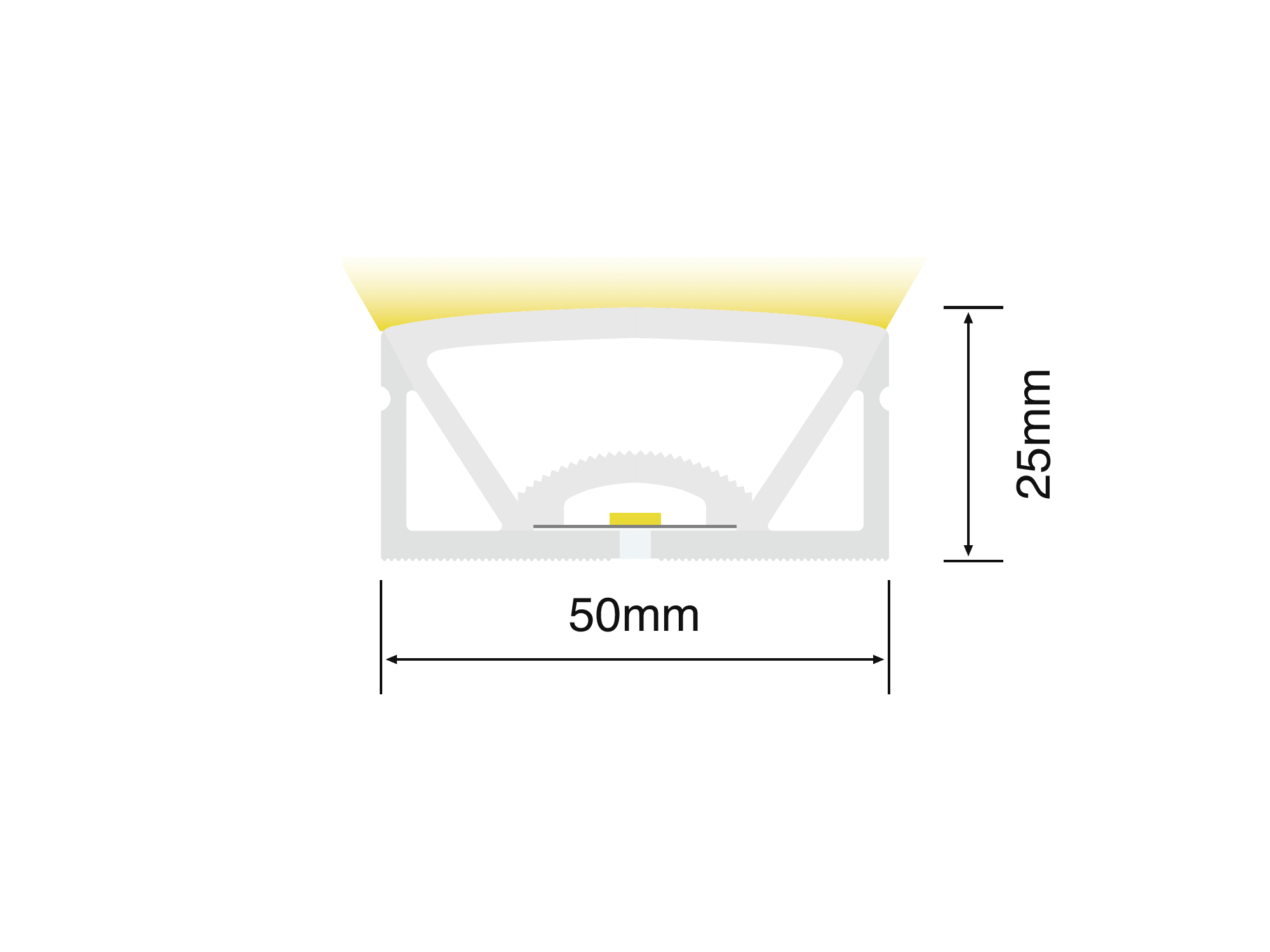

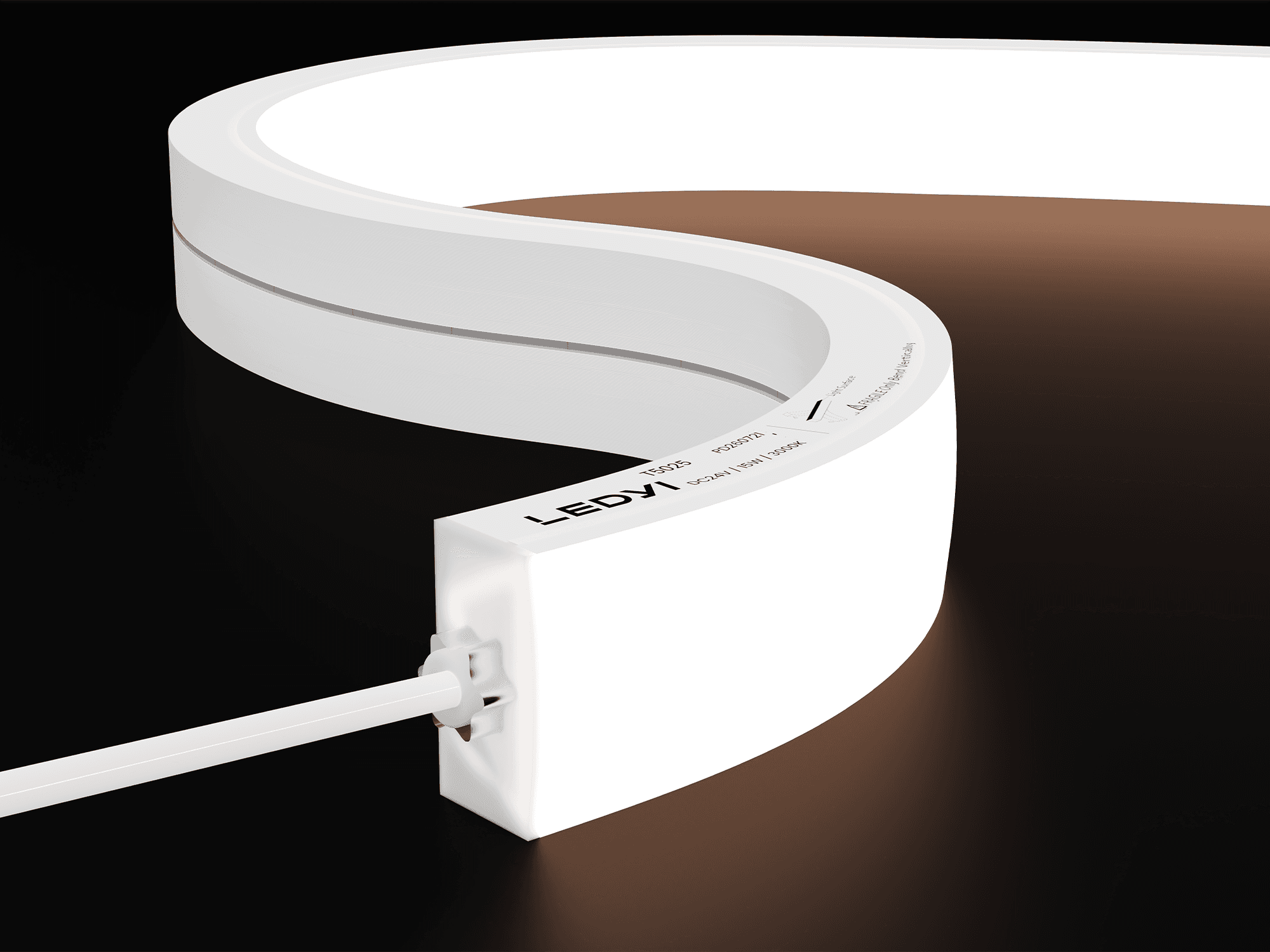

NS-T5025 is a top-bend silicone LED neon flex profile with a 50 mm by 25 mm cross section, DC 24 V input, and published single-color, tunable-white, RGB, and RGBW configurations. Its optical distribution structure produces a uniform illuminated surface without shadows, while the silicone construction provides good toughness and a simple appearance. The IP67 housing resists salt solution, acids, alkalis, and UV.
NS-T5025 Specifications
| Bend Direction | Top Bend |
|---|---|
| IP Rating | IP67 |
| Material | Silicone |
| Housing Color | Milky White |
| Color Temperature | 2700K · 3000K · 4000K · 6000K · 6500K |
| Fixed Colors | Red · Green · Blue · Yellow · Orange · Pink |
| Input Voltage | DC 24 V |
| Cross Section Width | 50 mm |
| Cross Section Height | 25 mm |
| Power Options | 15 W/m |
| Min Bend Diameter | 500 mm |
| Max Run Length | up to 12 m |
| Min Operating Temp | -25 °C |
| Warranty Years | 5 years |
This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.
NS-T5025 Ordering Information
| # | Ordering Code | Input | Power | Drive | Protocol | Outputs | |
|---|---|---|---|---|---|---|---|
| 1 | NS-T5025V24-CCx-A | DC 24 V | 15 W/m | CC | — | White 2700K–6000K, 6 fixed colors | details ↓ |
| 2 | NS-T5025V24-Ca-A | DC 24 V | 15 W/m | CV | — | White 2700K–6500K | details ↓ |
| 3 | NS-T5025V24-Crgb-A | DC 24 V | 15 W/m | CV | — | 3 fixed colors, RGB | details ↓ |
| 4 | NS-T5025V24-Crgbwx-A | DC 24 V | 15 W/m | CV | — | White 2700K–6000K, 3 fixed colors, RGBW | details ↓ |
NS-T5025 Photometric Data
NS-T5025V24-CCx-A — 15 W/m — CC
| Nominal CCT | Fixed Color | CRI Grade | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|
| 2700K (+150/−150 K) | — | CRI ≥90 | 792 lm/m | 52.8 lm/W | 50 mm | 12 m |
| 3000K (+150/−150 K) | — | CRI ≥90 | 808 lm/m | 53.9 lm/W | 50 mm | 12 m |
| 4000K (+400/−200 K) | — | CRI ≥90 | 869 lm/m | 57.9 lm/W | 50 mm | 12 m |
| 6000K (+500/−500 K) | — | CRI ≥90 | 826 lm/m | 55.1 lm/W | 50 mm | 12 m |
| — | Red | — | 365 lm/m | 24.4 lm/W | 50 mm | 12 m |
| — | Green | — | 974 lm/m | 65 lm/W | 50 mm | 12 m |
| — | Blue | — | 216 lm/m | 14.4 lm/W | 50 mm | 12 m |
| — | Yellow | — | 292 lm/m | 19.5 lm/W | 50 mm | 12 m |
| — | Orange | — | 370 lm/m | 24.7 lm/W | 50 mm | 12 m |
| — | Pink | — | 762 lm/m | 50.8 lm/W | 50 mm | 12 m |
NS-T5025V24-Ca-A — 15 W/m — CV
| Output State | Nominal CCT | CRI Grade | Power Draw Per Meter | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|---|
| Single channel | 2700K (+150/−150 K) | CRI ≥90 | 7.5 W/m | 390 lm/m | 52.1 lm/W | 41.7 mm | 5 m |
| Single channel | 6500K (+500/−500 K) | CRI ≥90 | 7.5 W/m | 402 lm/m | 53.6 lm/W | 41.7 mm | 5 m |
| Full output | — | CRI ≥90 | 15 W/m | 794 lm/m | 53 lm/W | 41.7 mm | 5 m |
NS-T5025V24-Crgb-A — 15 W/m — CV
| Output State | Fixed Color | Power Draw Per Meter | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|
| Single channel | Red | 5 W/m | 85 lm/m | 17.1 lm/W | 41.7 mm | 5 m |
| Single channel | Green | 5 W/m | 330 lm/m | 66 lm/W | 41.7 mm | 5 m |
| Single channel | Blue | 5 W/m | 61 lm/m | 12.2 lm/W | 41.7 mm | 5 m |
| Full output | — | 15 W/m | 516 lm/m | 34.4 lm/W | 41.7 mm | 5 m |
NS-T5025V24-Crgbwx-A — 15 W/m — CV
| Output State | Nominal CCT | Fixed Color | CRI Grade | Power Draw Per Meter | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|---|---|
| Single channel | — | Red | — | 3.7 W/m | 64 lm/m | 17.1 lm/W | 41.7 mm | 5 m |
| Single channel | — | Green | — | 3.7 W/m | 187 lm/m | 49.9 lm/W | 41.7 mm | 5 m |
| Single channel | — | Blue | — | 3.7 W/m | 51 lm/m | 13.5 lm/W | 41.7 mm | 5 m |
| Single channel | 2700K (+150/−150 K) | — | CRI ≥80 | 3.7 W/m | 205 lm/m | 54.7 lm/W | 41.7 mm | 5 m |
| Full output | White channel: 2700K | — | — | 15 W/m | 512 lm/m | 34.1 lm/W | 41.7 mm | 5 m |
| Single channel | — | Red | — | 3.7 W/m | 65 lm/m | 17.2 lm/W | 41.7 mm | 5 m |
| Single channel | — | Green | — | 3.7 W/m | 188 lm/m | 50.2 lm/W | 41.7 mm | 5 m |
| Single channel | — | Blue | — | 3.7 W/m | 52 lm/m | 13.8 lm/W | 41.7 mm | 5 m |
| Single channel | 3000K (+150/−150 K) | — | CRI ≥80 | 3.7 W/m | 199 lm/m | 52.9 lm/W | 41.7 mm | 5 m |
| Full output | White channel: 3000K | — | — | 15 W/m | 506 lm/m | 33.7 lm/W | 41.7 mm | 5 m |
| Single channel | — | Red | — | 3.7 W/m | 66 lm/m | 17.6 lm/W | 41.7 mm | 5 m |
| Single channel | — | Green | — | 3.7 W/m | 189 lm/m | 50.4 lm/W | 41.7 mm | 5 m |
| Single channel | — | Blue | — | 3.7 W/m | 54 lm/m | 14.4 lm/W | 41.7 mm | 5 m |
| Single channel | 4000K (+200/−400 K) | — | CRI ≥80 | 3.7 W/m | 210 lm/m | 56 lm/W | 41.7 mm | 5 m |
| Full output | White channel: 4000K | — | — | 15 W/m | 524 lm/m | 35 lm/W | 41.7 mm | 5 m |
| Single channel | — | Red | — | 3.7 W/m | 65 lm/m | 17.4 lm/W | 41.7 mm | 5 m |
| Single channel | — | Green | — | 3.7 W/m | 191 lm/m | 51 lm/W | 41.7 mm | 5 m |
| Single channel | — | Blue | — | 3.7 W/m | 54 lm/m | 14.3 lm/W | 41.7 mm | 5 m |
| Single channel | 6000K (+500/−500 K) | — | CRI ≥80 | 3.7 W/m | 215 lm/m | 57.5 lm/W | 41.7 mm | 5 m |
| Full output | White channel: 6000K | — | — | 15 W/m | 528 lm/m | 35.2 lm/W | 41.7 mm | 5 m |
