Specification SheetPDF · 1.0 MB
DownloadNS-T3020
Series: Top Bend Neon
Last updated:
| Bend Direction | Top Bend |
|---|---|
| IP Rating | IP67 |
| Input Voltage | DC 24 V |
| Power Options | 20 W/m |
| Warranty Years | 5 years |
About NS-T3020

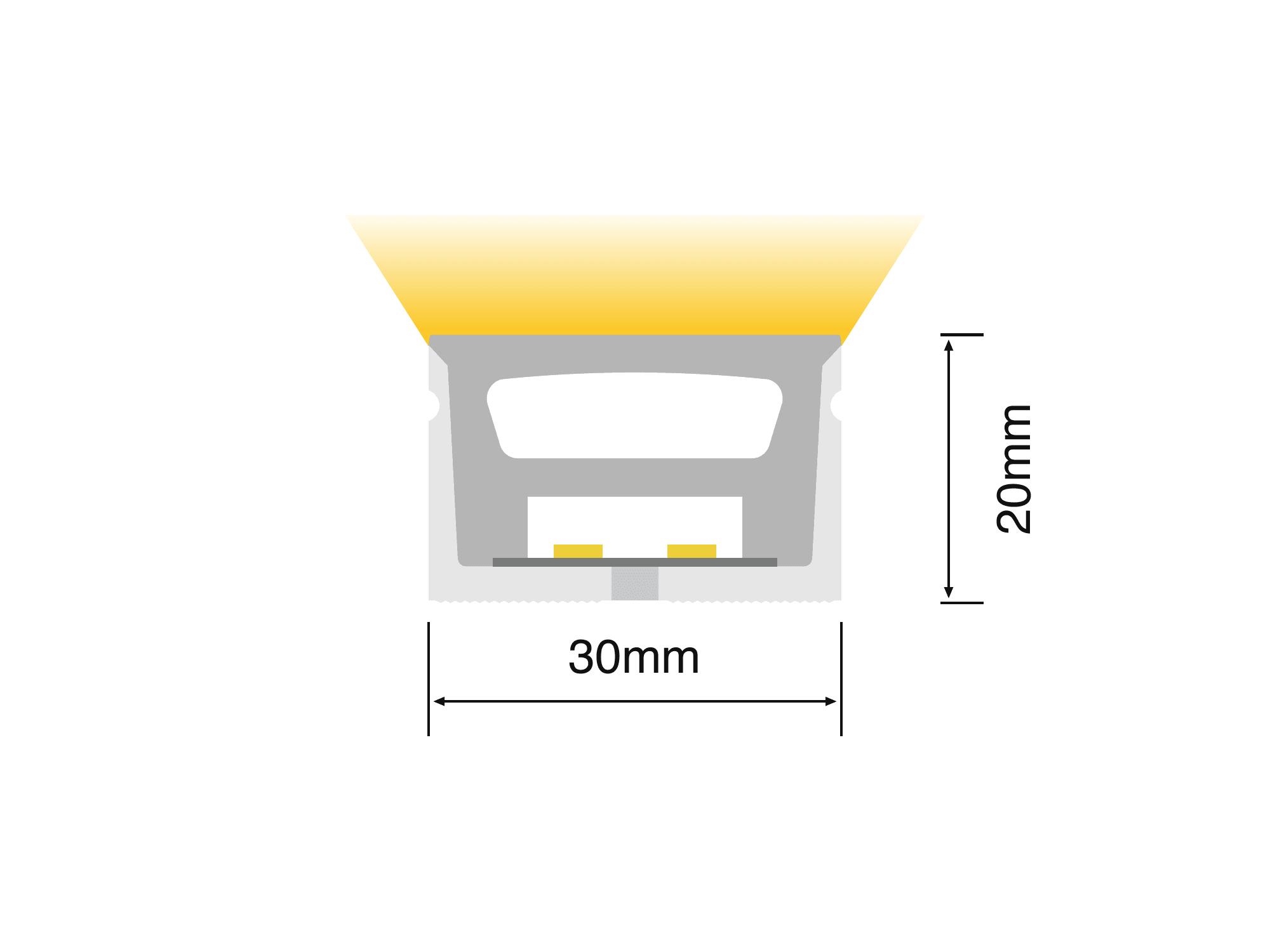

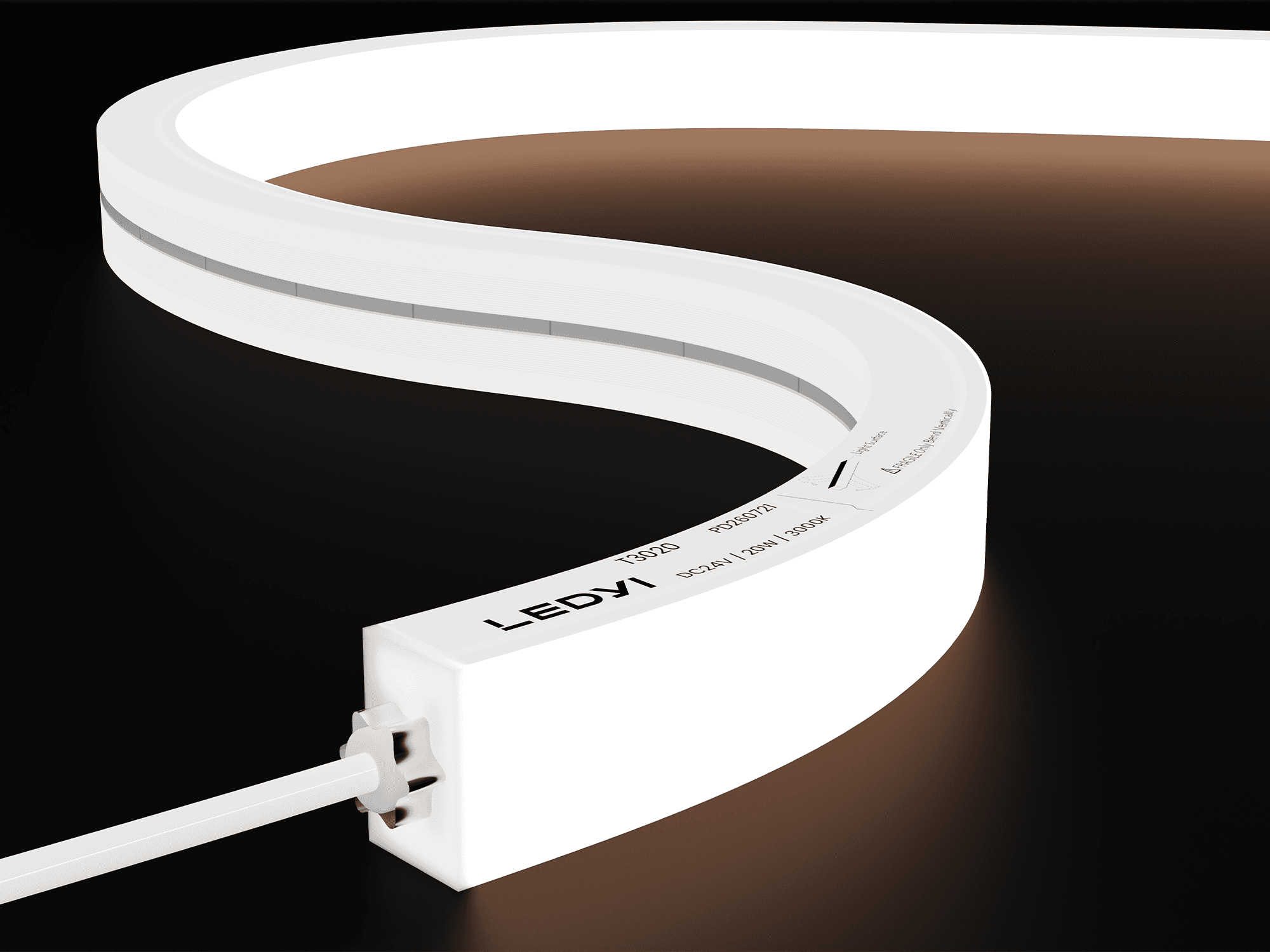

NS-T3020 is a top-bend silicone LED neon flex profile with a 30 mm by 20 mm cross section, DC 24 V input, and published single-color, tunable-white, RGB, and RGBW configurations. Its optical distribution structure produces a uniform illuminated surface without shadows. The integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high transparency and strength, with IP67 resistance to salt solution, acids, alkalis, and UV.
NS-T3020 Specifications
| Bend Direction | Top Bend |
|---|---|
| IP Rating | IP67 |
| Material | Silicone |
| Housing Color | Milky White |
| Color Temperature | 2100K · 2400K · 2700K · 3000K · 3500K · 3700K · 4000K · 5000K · 6500K |
| Fixed Colors | Red · Green · Blue · Yellow · Pink |
| Input Voltage | DC 24 V |
| Cross Section Width | 30 mm |
| Cross Section Height | 20 mm |
| Power Options | 20 W/m |
| Min Bend Diameter | 300 mm |
| Max Run Length | up to 9 m |
| Min Operating Temp | -25 °C |
| Warranty Years | 5 years |
This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.
NS-T3020 Ordering Information
| # | Ordering Code | Input | Power | Drive | Protocol | Outputs | |
|---|---|---|---|---|---|---|---|
| 1 | NS-T3020V24-CCx-A | DC 24 V | 20 W/m | CC | — | White 2100K–6500K, 5 fixed colors | details ↓ |
| 2 | NS-T3020V24-Ca-A | DC 24 V | 20 W/m | CV | — | White 2700K–6500K | details ↓ |
| 3 | NS-T3020V24-Crgb-A | DC 24 V | 20 W/m | CV | — | 3 fixed colors, RGB | details ↓ |
| 4 | NS-T3020V24-Crgbwx-A | DC 24 V | 20 W/m | CV | — | White 2400K–5000K, 3 fixed colors, RGBW | details ↓ |
NS-T3020 Photometric Data
NS-T3020V24-CCx-A — 20 W/m — CC
| Nominal CCT | Fixed Color | CRI Grade | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|
| 2100K (+150/−150 K) | — | CRI ≥90 | 1020 lm/m | 51 lm/W | 50 mm | 9 m |
| 2400K (+150/−150 K) | — | CRI ≥90 | 1040 lm/m | 52 lm/W | 50 mm | 9 m |
| 2700K (+150/−150 K) | — | CRI ≥90 | 1210 lm/m | 60.5 lm/W | 50 mm | 9 m |
| 3000K (+150/−150 K) | — | CRI ≥90 | 1220 lm/m | 61 lm/W | 50 mm | 9 m |
| 3500K (+200/−200 K) | — | CRI ≥90 | 1130 lm/m | 56.5 lm/W | 50 mm | 9 m |
| 4000K (+400/−200 K) | — | CRI ≥90 | 1280 lm/m | 64 lm/W | 50 mm | 9 m |
| 5000K (+500/−300 K) | — | CRI ≥90 | 1300 lm/m | 65 lm/W | 50 mm | 9 m |
| 6500K (+500/−500 K) | — | CRI ≥90 | 1180 lm/m | 59 lm/W | 50 mm | 9 m |
| — | Red | — | 530 lm/m | 26.5 lm/W | 50 mm | 9 m |
| — | Green | — | 1240 lm/m | 62 lm/W | 50 mm | 9 m |
| — | Blue | — | 270 lm/m | 13.5 lm/W | 50 mm | 9 m |
| — | Yellow | — | 520 lm/m | 26 lm/W | 50 mm | 9 m |
| — | Pink | — | 520 lm/m | 26 lm/W | 50 mm | 9 m |
NS-T3020V24-Ca-A — 20 W/m — CV
| Output State | Nominal CCT | CRI Grade | Power Draw Per Meter | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|---|
| Single channel | 2700K (+150/−150 K) | CRI ≥90 | 10 W/m | 610 lm/m | 61 lm/W | 41.6 mm | 5 m |
| Single channel | 6500K (+500/−500 K) | CRI ≥90 | 10 W/m | 650 lm/m | 65 lm/W | 41.6 mm | 5 m |
| Full output | — | CRI ≥90 | 20 W/m | 1230 lm/m | 61.5 lm/W | 41.6 mm | 5 m |
NS-T3020V24-Crgb-A — 20 W/m — CV
| Output State | Fixed Color | Power Draw Per Meter | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|
| Single channel | Red | 6.6 W/m | 133 lm/m | 20 lm/W | 41.6 mm | 5 m |
| Single channel | Green | 6.6 W/m | 342 lm/m | 51.5 lm/W | 41.6 mm | 5 m |
| Single channel | Blue | 6.6 W/m | 69 lm/m | 10.5 lm/W | 41.6 mm | 5 m |
| Full output | — | 20 W/m | 540 lm/m | 27 lm/W | 41.6 mm | 5 m |
NS-T3020V24-Crgbwx-A — 20 W/m — CV
| Output State | Nominal CCT | Fixed Color | CRI Grade | Power Draw Per Meter | Lumen Per Meter | Efficacy | Cut Length | Max Run Length |
|---|---|---|---|---|---|---|---|---|
| Single channel | — | Red | — | 5 W/m | 95 lm/m | 19 lm/W | 41.6 mm | 5 m |
| Single channel | — | Green | — | 5 W/m | 262 lm/m | 52.5 lm/W | 41.6 mm | 5 m |
| Single channel | — | Blue | — | 5 W/m | 70 lm/m | 14 lm/W | 41.6 mm | 5 m |
| Single channel | 2400K (+200/−200 K) | — | CRI ≥80 | 5 W/m | 305 lm/m | 61 lm/W | 41.6 mm | 5 m |
| Full output | White channel: 2400K | — | — | 20 W/m | 720 lm/m | 36 lm/W | 41.6 mm | 5 m |
| Single channel | 2700K (+300/−300 K) | — | CRI ≥80 | 5 W/m | 302 lm/m | 60.5 lm/W | 41.6 mm | 5 m |
| Full output | White channel: 2700K | — | — | 20 W/m | 720 lm/m | 36 lm/W | 41.6 mm | 5 m |
| Single channel | 3700K (+300/−300 K) | — | CRI ≥80 | 5 W/m | 320 lm/m | 64 lm/W | 41.6 mm | 5 m |
| Full output | White channel: 3700K | — | — | 20 W/m | 720 lm/m | 36 lm/W | 41.6 mm | 5 m |
| Single channel | 5000K (+500/−300 K) | — | CRI ≥80 | 5 W/m | 313 lm/m | 62.6 lm/W | 41.6 mm | 5 m |
| Full output | White channel: 5000K | — | — | 20 W/m | 720 lm/m | 36 lm/W | 41.6 mm | 5 m |
