NS-T2016

Bend Direction: Top Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 5–15 W/m
Warranty Years: 5 years

Overview

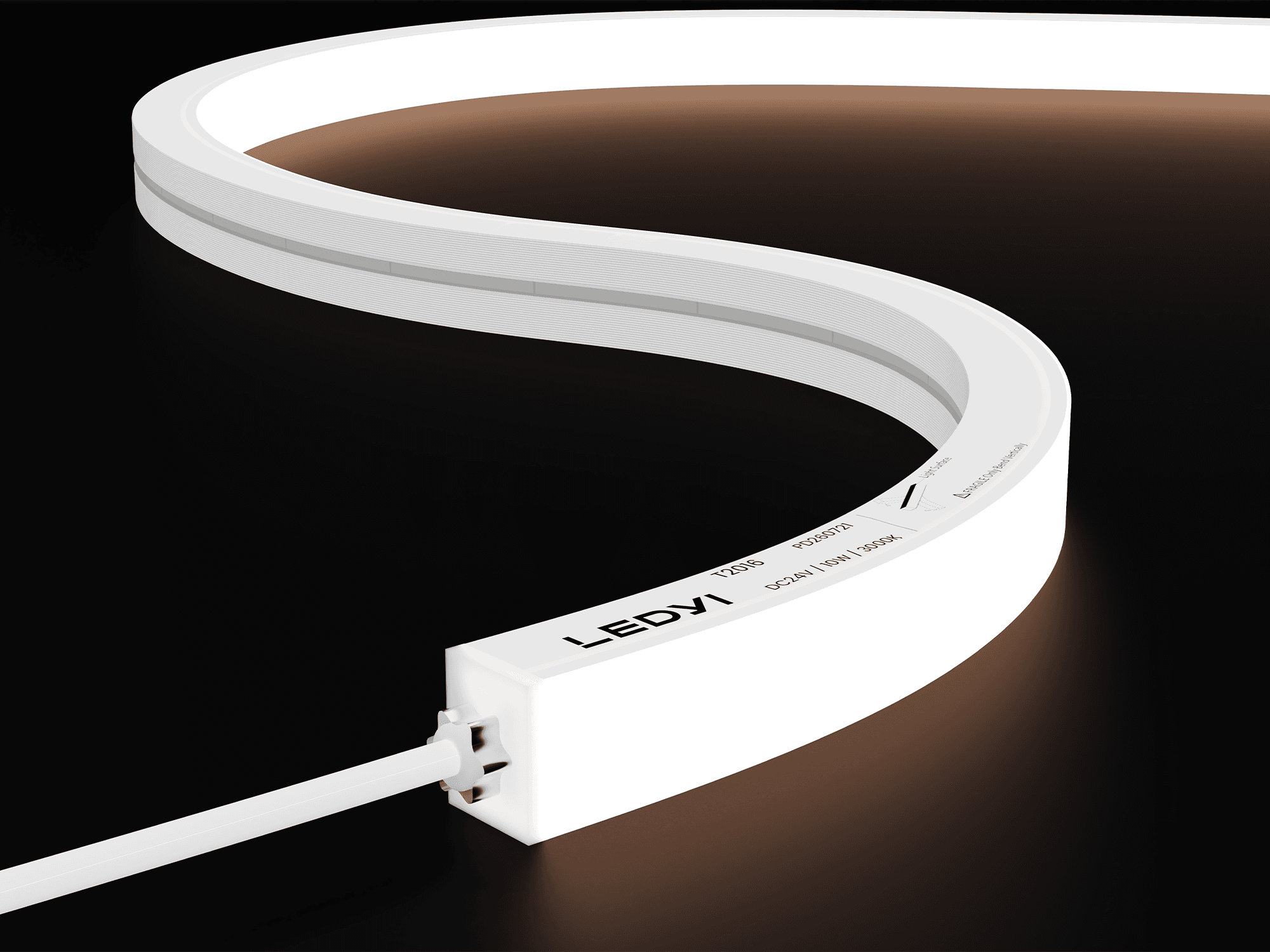

NS-T2016 is a top-bend silicone LED neon flex profile with a 20 mm by 16 mm cross section, DC 24 V input, and published single-color, tunable-white, RGB, RGBW, and DMX512 configurations. Its optical distribution structure produces a uniform illuminated surface without shadows. The integrated-extrusion Dow SILASTIC ET-7021 silicone housing combines high transparency and strength with IP67 resistance to salt solution, acids, alkalis, and UV.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NS-T2016, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "ns-t2016",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NS-T2016
Bend Direction	Top Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 4500K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

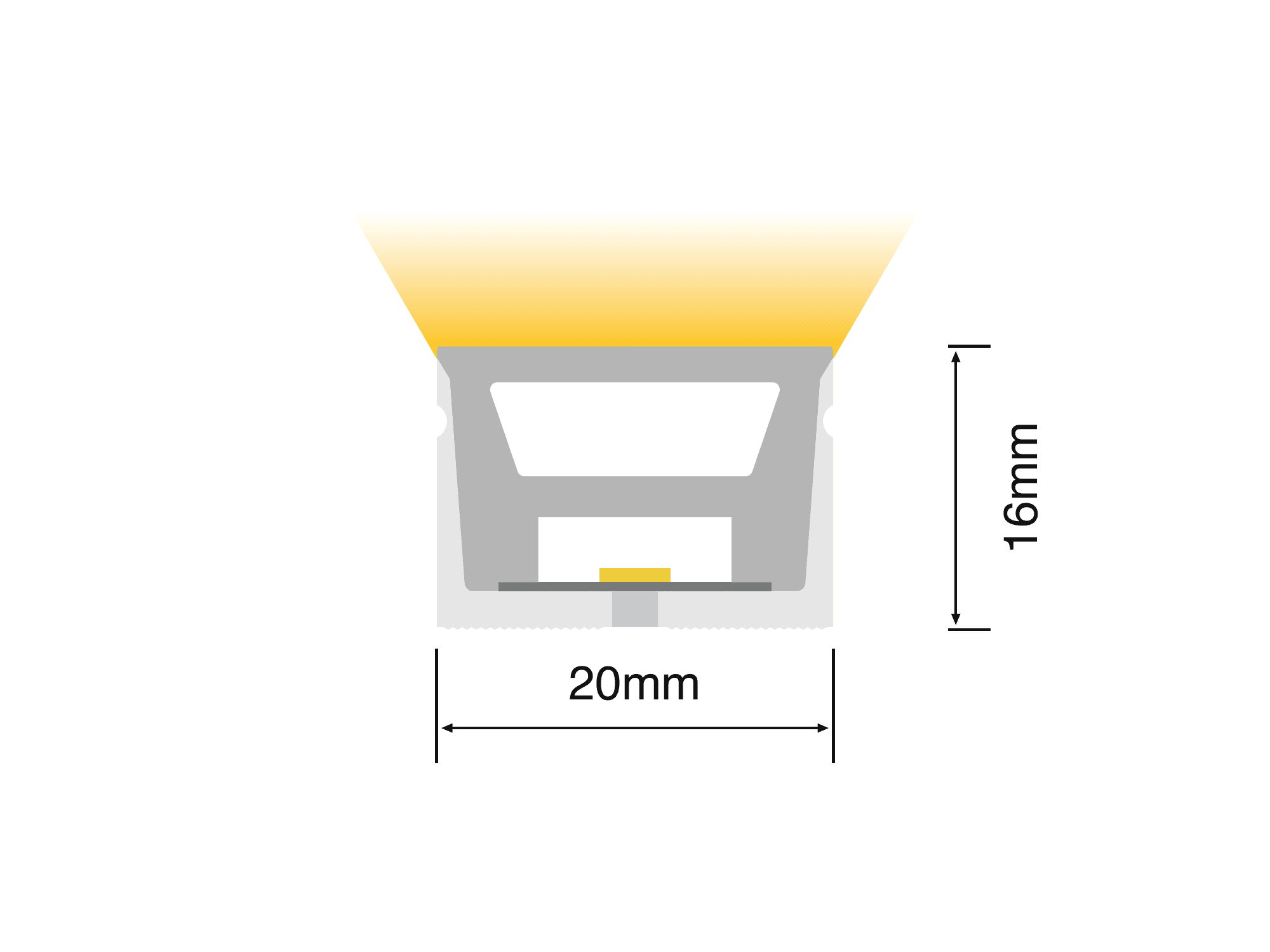

Cross Section Width	20 mm
Cross Section Height	16 mm
Power Options	5–15 W/m
Min Bend Diameter	200 mm
Max Run Length	5–35 m (configuration-specific)
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NS-T2016
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NS-T2016V24-CCx-A	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-T2016V24-CCx-A	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-T2016V24-CCx-A	DC 24 V	15 W/m	CC	—	White 1800K–6500K, 3 fixed colors	details ↓
4	NS-T2016V24-Ca-A (SMD2835)	DC 24 V	15 W/m	CV	—	White 2700K–6500K	details ↓
5	NS-T2016V24-Ca-A (SMD3014)	DC 24 V	15 W/m	CV	—	White 2700K–6500K	details ↓
6	NS-T2016V24-Crgb-A (SMD4040)	DC 24 V	15 W/m	CV	—	3 fixed colors, RGB	details ↓
7	NS-T2016V24-Crgb-A (SMD5050)	DC 24 V	15 W/m	CV	—	3 fixed colors, RGB	details ↓
8	NS-T2016V24-Crgbwx-A (SMD5050RGB+2835)	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
9	NS-T2016V24-Crgbwx-A (SMD5050RGBW 4in1)	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
10	NS-T2016V24-Crgb-UCS512C1L-8P-A	DC 24 V	12 W/m	CV	DMX512	3 fixed colors, RGB	details ↓
11	NS-T2016V24-Crgbwx-UCS512C1L-8P-A	DC 24 V	15 W/m	CV	DMX512	White 4500K, 3 fixed colors, RGBW	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NS-T2016V24-CCx-A — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-T2016V24-CCx-A — 5 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	252 lm/m	50.4 lm/W	50 mm	27 m
2100K (+150/−150 K)	—	CRI ≥90	268 lm/m	53.5 lm/W	50 mm	27 m
2400K (+150/−150 K)	—	CRI ≥90	277 lm/m	55.4 lm/W	50 mm	27 m
2700K (+150/−150 K)	—	CRI ≥90	297 lm/m	59.4 lm/W	50 mm	27 m
3000K (+150/−150 K)	—	CRI ≥90	301 lm/m	60.2 lm/W	50 mm	27 m
3500K (+200/−200 K)	—	CRI ≥90	311 lm/m	62.3 lm/W	50 mm	27 m
4000K (+400/−200 K)	—	CRI ≥90	312 lm/m	62.4 lm/W	50 mm	27 m
5000K (+500/−300 K)	—	CRI ≥90	313 lm/m	62.7 lm/W	50 mm	27 m
6500K (+500/−500 K)	—	CRI ≥90	295 lm/m	59.1 lm/W	50 mm	27 m
—	Red	—	127 lm/m	25.4 lm/W	50 mm	35 m
—	Green	—	359 lm/m	71.9 lm/W	50 mm	27 m
—	Blue	—	64 lm/m	12.7 lm/W	50 mm	27 m
—	Yellow	—	95 lm/m	19 lm/W	50 mm	35 m
—	Orange	—	120 lm/m	24 lm/W	50 mm	35 m
—	Pink	—	270 lm/m	54.1 lm/W	50 mm	27 m

NS-T2016V24-CCx-A — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-T2016V24-CCx-A — 10 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	480 lm/m	48 lm/W	50 mm	18 m
2100K (+150/−150 K)	—	CRI ≥90	510 lm/m	51 lm/W	50 mm	18 m
2400K (+150/−150 K)	—	CRI ≥90	530 lm/m	53 lm/W	50 mm	18 m
2700K (+150/−150 K)	—	CRI ≥90	566 lm/m	56.6 lm/W	50 mm	18 m
3000K (+150/−150 K)	—	CRI ≥90	575 lm/m	57.5 lm/W	50 mm	18 m
3500K (+200/−200 K)	—	CRI ≥90	593 lm/m	59.3 lm/W	50 mm	18 m
4000K (+400/−200 K)	—	CRI ≥90	601 lm/m	60.1 lm/W	50 mm	18 m
5000K (+500/−300 K)	—	CRI ≥90	602 lm/m	60.2 lm/W	50 mm	18 m
6500K (+500/−500 K)	—	CRI ≥90	569 lm/m	56.9 lm/W	50 mm	18 m
—	Red	—	255 lm/m	25.5 lm/W	50 mm	18 m
—	Green	—	597 lm/m	59.7 lm/W	50 mm	18 m
—	Blue	—	121 lm/m	12.1 lm/W	50 mm	18 m
—	Yellow	—	195 lm/m	19.5 lm/W	50 mm	18 m
—	Orange	—	260 lm/m	26 lm/W	50 mm	18 m
—	Pink	—	519 lm/m	51.9 lm/W	50 mm	18 m

NS-T2016V24-CCx-A — 15 W/m — CC

Max ambient: 35 °C · Outputs: White 1800K–6500K, 3 fixed colors

Photometric data — NS-T2016V24-CCx-A — 15 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	687 lm/m	45.8 lm/W	50 mm	12 m
2100K (+150/−150 K)	—	CRI ≥90	730 lm/m	48.6 lm/W	50 mm	12 m
2400K (+150/−150 K)	—	CRI ≥90	765 lm/m	51 lm/W	50 mm	12 m
2700K (+150/−150 K)	—	CRI ≥90	810 lm/m	54 lm/W	50 mm	12 m
3000K (+150/−150 K)	—	CRI ≥90	830 lm/m	55.3 lm/W	50 mm	12 m
3500K (+200/−200 K)	—	CRI ≥90	848 lm/m	56.6 lm/W	50 mm	12 m
4000K (+400/−200 K)	—	CRI ≥90	873 lm/m	58.2 lm/W	50 mm	12 m
5000K (+500/−300 K)	—	CRI ≥90	872 lm/m	58.1 lm/W	50 mm	12 m
6500K (+500/−500 K)	—	CRI ≥90	826 lm/m	55.1 lm/W	50 mm	12 m
—	Green	—	771 lm/m	51.4 lm/W	50 mm	12 m
—	Blue	—	168 lm/m	11.2 lm/W	50 mm	12 m
—	Pink	—	747 lm/m	49.8 lm/W	50 mm	12 m

NS-T2016V24-Ca-A (SMD2835) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K

Photometric data — NS-T2016V24-Ca-A (SMD2835) — 15 W/m — CV
Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	7.5 W/m	416 lm/m	55.4 lm/W	62.5 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	7.5 W/m	427 lm/m	56.9 lm/W	62.5 mm	5 m
Full output	—	CRI ≥90	15 W/m	836 lm/m	55.7 lm/W	62.5 mm	5 m

NS-T2016V24-Ca-A (SMD3014) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K

Photometric data — NS-T2016V24-Ca-A (SMD3014) — 15 W/m — CV
Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	7.5 W/m	398 lm/m	53 lm/W	50 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	7.5 W/m	446 lm/m	59.5 lm/W	50 mm	5 m
Full output	—	CRI ≥90	15 W/m	837 lm/m	55.8 lm/W	50 mm	5 m

NS-T2016V24-Crgb-A (SMD4040) — 15 W/m — CV

Max ambient: 35 °C · Outputs: 3 fixed colors, RGB

Photometric data — NS-T2016V24-Crgb-A (SMD4040) — 15 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	5 W/m	97 lm/m	19.4 lm/W	62.5 mm	5 m
Single channel	Green	5 W/m	269 lm/m	53.8 lm/W	62.5 mm	5 m
Single channel	Blue	5 W/m	51 lm/m	10.1 lm/W	62.5 mm	5 m
Full output	—	15 W/m	405 lm/m	27 lm/W	62.5 mm	5 m

NS-T2016V24-Crgb-A (SMD5050) — 15 W/m — CV

Max ambient: 35 °C · Outputs: 3 fixed colors, RGB

Photometric data — NS-T2016V24-Crgb-A (SMD5050) — 15 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	5 W/m	97 lm/m	19.3 lm/W	83.3 mm	5 m
Single channel	Green	5 W/m	320 lm/m	63.9 lm/W	83.3 mm	5 m
Single channel	Blue	5 W/m	56 lm/m	11.1 lm/W	83.3 mm	5 m
Full output	—	15 W/m	453 lm/m	30.2 lm/W	83.3 mm	5 m

NS-T2016V24-Crgbwx-A (SMD5050RGB+2835) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Photometric data — NS-T2016V24-Crgbwx-A (SMD5050RGB+2835) — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.8 W/m	74 lm/m	19.8 lm/W	83.3 mm	5 m
Single channel	—	Green	—	3.8 W/m	263 lm/m	70 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	3.8 W/m	48 lm/m	12.7 lm/W	83.3 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	3.8 W/m	239 lm/m	63.7 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	638 lm/m	42.5 lm/W	83.3 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	3.8 W/m	249 lm/m	66.5 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	653 lm/m	43.5 lm/W	83.3 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥90	3.8 W/m	251 lm/m	66.9 lm/W	83.3 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	653 lm/m	43.5 lm/W	83.3 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	3.8 W/m	242 lm/m	64.5 lm/W	83.3 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	641 lm/m	42.7 lm/W	83.3 mm	5 m

NS-T2016V24-Crgbwx-A (SMD5050RGBW 4in1) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Photometric data — NS-T2016V24-Crgbwx-A (SMD5050RGBW 4in1) — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.8 W/m	67 lm/m	17.8 lm/W	62.5 mm	5 m
Single channel	—	Green	—	3.8 W/m	161 lm/m	42.9 lm/W	62.5 mm	5 m
Single channel	—	Blue	—	3.8 W/m	47 lm/m	12.4 lm/W	62.5 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥80	3.8 W/m	190 lm/m	50.6 lm/W	62.5 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	465 lm/m	31 lm/W	62.5 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥80	3.8 W/m	185 lm/m	49.4 lm/W	62.5 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	456 lm/m	30.4 lm/W	62.5 mm	5 m
Single channel	4000K (+300/−300 K)	—	CRI ≥80	3.8 W/m	208 lm/m	55.5 lm/W	62.5 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	500 lm/m	33.3 lm/W	62.5 mm	5 m
Single channel	6500K (+400/−400 K)	—	CRI ≥80	3.8 W/m	210 lm/m	55.9 lm/W	62.5 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	498 lm/m	33.2 lm/W	62.5 mm	5 m

NS-T2016V24-Crgb-UCS512C1L-8P-A — 12 W/m — CV

Max ambient: — · Outputs: 3 fixed colors, RGB

Photometric data — NS-T2016V24-Crgb-UCS512C1L-8P-A — 12 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	Red	5 W/m	44 lm/m	8.8 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	Green	5 W/m	172 lm/m	34.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	Blue	5 W/m	30 lm/m	5.9 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	—	12 W/m	246 lm/m	20.5 lm/W	125 mm	7 m	8 px/m	UCS512C1L

NS-T2016V24-Crgbwx-UCS512C1L-8P-A — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 4500K, 3 fixed colors, RGBW

Photometric data — NS-T2016V24-Crgbwx-UCS512C1L-8P-A — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	—	Red	—	5 W/m	43 lm/m	8.5 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Green	—	5 W/m	127 lm/m	25.3 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Blue	—	5 W/m	29 lm/m	5.7 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	4500K (+300/−300 K)	—	CRI ≥80	5 W/m	141 lm/m	28.2 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	White channel: 4500K	—	—	15 W/m	338 lm/m	22.5 lm/W	125 mm	7 m	8 px/m	UCS512C1L
