NS-T1617

Last updated: 2026-08-13

Bend Direction	Top Bend
IP Rating	IP67
Input Voltage	DC 24 V
Power Options	5–15 W/m
Warranty Years	5 years

About NS-T1617

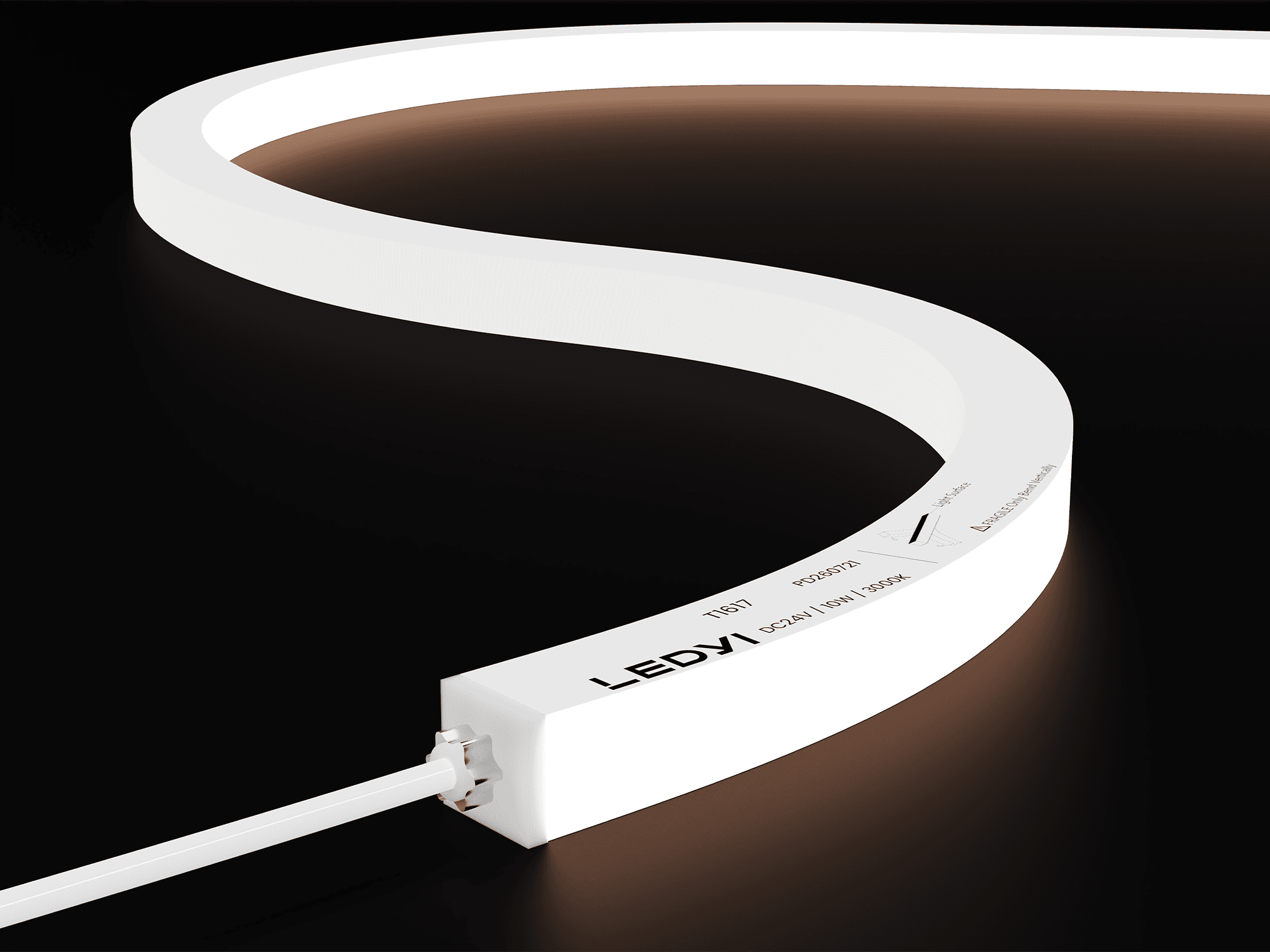

NS-T1617 is a top-bend silicone LED neon flex profile with a 16 mm by 17 mm cross section, DC 24 V input, and published single-color, tunable-white, RGB, RGBW, and DMX512 configurations. Its vertical-bending construction provides uniform, dimmable light. Production lengths reach 30 m and support small cutting increments for configurable lengths. An optional matt treatment provides a smooth, dust-resistant surface and can reduce finished-product color variation to 3 SDCM steps.

NS-T1617 Specifications

Specifications for NS-T1617
Bend Direction	Top Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

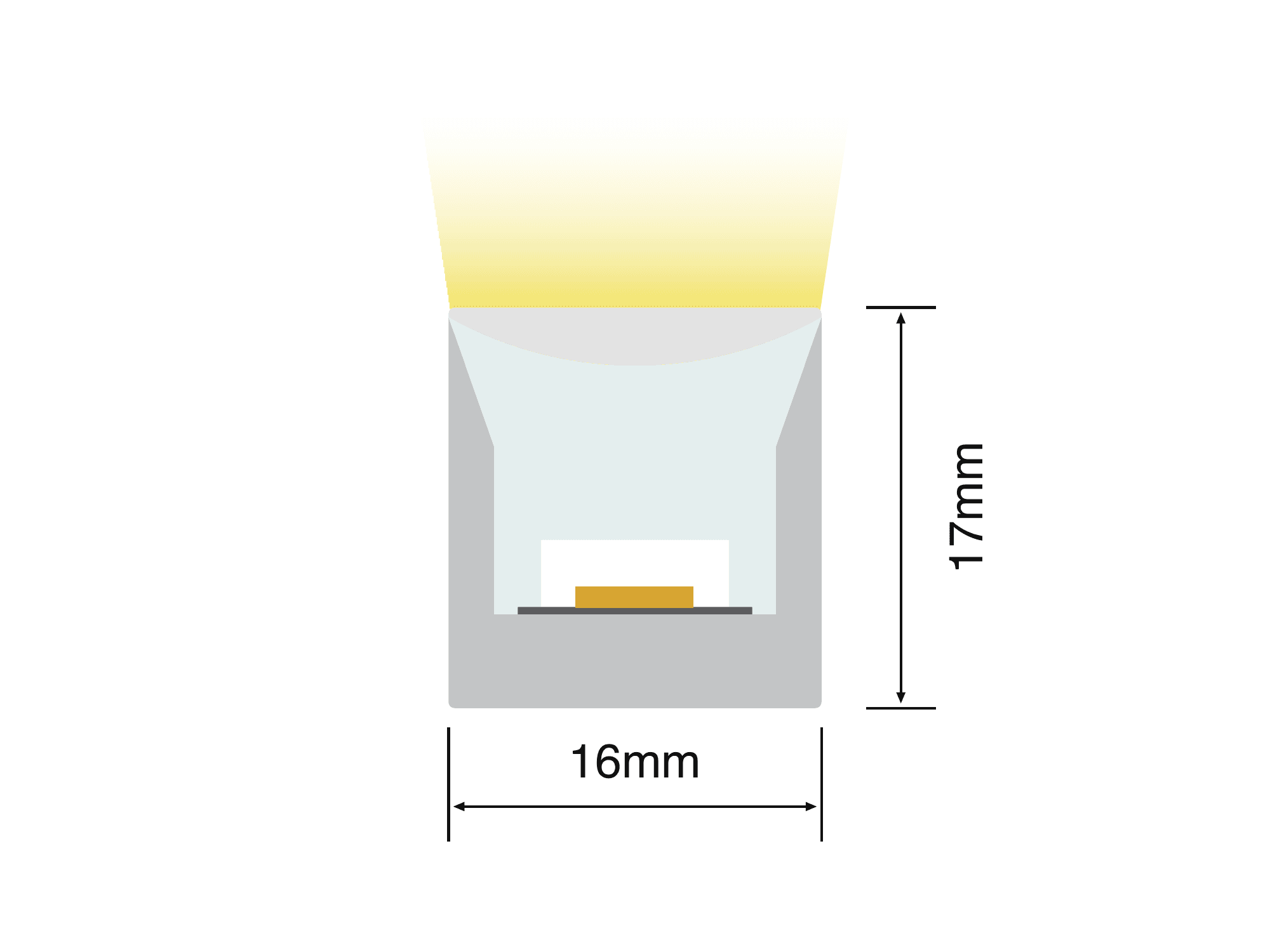

Cross Section Width	16 mm
Cross Section Height	17 mm
Power Options	5–15 W/m
Min Bend Diameter	200 mm
Max Run Length	up to 32 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

NS-T1617 Ordering Information

Ordering information for NS-T1617
#	Ordering Code	Input	Power	Drive	Protocol	Outputs
1	NS-T1617V24-Cx-A	DC 24 V	5 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-T1617V24-Cx-A	DC 24 V	10 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-T1617V24-Cx-A	DC 24 V	15 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
4	NS-T1617V24-CCx-A	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
5	NS-T1617V24-CCx-A	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
6	NS-T1617V24-CCx-A	DC 24 V	15 W/m	CC	—	White 1800K–6500K, 3 fixed colors	details ↓
7	NS-T1617V24-Ca-A	DC 24 V	11 W/m	CV	—	White 2700K–6500K	details ↓
8	NS-T1617V24-Crgb-A	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓
9	NS-T1617V24-Crgbwx-A	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
10	NS-T1617V24-Crgbwx-UCS512C1L-8P-A	DC 24 V	15 W/m	—	DMX512	White 4000K, 3 fixed colors, RGBW	details ↓

Ordering codes are order templates — one code may cover several power variants. Each configuration below is one sellable combination.

NS-T1617 Photometric Data

NS-T1617V24-Cx-A — 5 W/m — CV

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	307 lm/m	61.3 lm/W	50 mm	9 m
2100K (+150/−150 K)	—	—	CRI ≥90	348 lm/m	69.5 lm/W	50 mm	9 m
2400K (+150/−150 K)	—	—	CRI ≥90	379 lm/m	75.8 lm/W	50 mm	9 m
2700K	3 SDCM	—	CRI ≥90	411 lm/m	82.2 lm/W	50 mm	9 m
3000K	3 SDCM	—	CRI ≥90	423 lm/m	84.5 lm/W	50 mm	9 m
3500K	3 SDCM	—	CRI ≥90	441 lm/m	88.1 lm/W	50 mm	9 m
4000K	3 SDCM	—	CRI ≥90	448 lm/m	89.6 lm/W	50 mm	9 m
5000K	4 SDCM	—	CRI ≥90	458 lm/m	91.5 lm/W	50 mm	9 m
6500K	5 SDCM	—	CRI ≥90	448 lm/m	89.6 lm/W	50 mm	9 m
—	—	Red	—	165 lm/m	32.9 lm/W	50 mm	14 m
—	—	Green	—	473 lm/m	94.6 lm/W	50 mm	11 m
—	—	Blue	—	90 lm/m	18 lm/W	50 mm	10 m
—	—	Yellow	—	130 lm/m	25.9 lm/W	50 mm	11 m
—	—	Orange	—	140 lm/m	27.9 lm/W	50 mm	11 m
—	—	Pink	—	360 lm/m	71.9 lm/W	50 mm	9 m

NS-T1617V24-Cx-A — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	600 lm/m	60 lm/W	50 mm	7 m
2100K (+150/−150 K)	—	—	CRI ≥90	665 lm/m	66.5 lm/W	50 mm	7 m
2400K (+150/−150 K)	—	—	CRI ≥90	739 lm/m	73.9 lm/W	50 mm	7 m
2700K	3 SDCM	—	CRI ≥90	776 lm/m	77.6 lm/W	50 mm	7 m
3000K	3 SDCM	—	CRI ≥90	797 lm/m	79.7 lm/W	50 mm	7 m
3500K	3 SDCM	—	CRI ≥90	827 lm/m	82.7 lm/W	50 mm	7 m
4000K	3 SDCM	—	CRI ≥90	825 lm/m	82.5 lm/W	50 mm	7 m
5000K	4 SDCM	—	CRI ≥90	818 lm/m	81.8 lm/W	50 mm	7 m
6500K	5 SDCM	—	CRI ≥90	831 lm/m	83.1 lm/W	50 mm	7 m
—	—	Red	—	307 lm/m	30.7 lm/W	50 mm	10 m
—	—	Green	—	780 lm/m	78 lm/W	50 mm	9 m
—	—	Blue	—	164 lm/m	16.4 lm/W	50 mm	7 m
—	—	Yellow	—	243 lm/m	24.3 lm/W	50 mm	9 m
—	—	Orange	—	285 lm/m	28.5 lm/W	50 mm	9 m
—	—	Pink	—	640 lm/m	64 lm/W	50 mm	7 m

NS-T1617V24-Cx-A — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	864 lm/m	57.6 lm/W	50 mm	5 m
2100K (+150/−150 K)	—	—	CRI ≥90	977 lm/m	65.1 lm/W	50 mm	5 m
2400K (+150/−150 K)	—	—	CRI ≥90	1071 lm/m	71.4 lm/W	50 mm	5 m
2700K	3 SDCM	—	CRI ≥90	1148 lm/m	76.5 lm/W	50 mm	5 m
3000K	3 SDCM	—	CRI ≥90	1184 lm/m	78.9 lm/W	50 mm	5 m
3500K	3 SDCM	—	CRI ≥90	1236 lm/m	82.4 lm/W	50 mm	5 m
4000K	3 SDCM	—	CRI ≥90	1245 lm/m	83 lm/W	50 mm	5 m
5000K	4 SDCM	—	CRI ≥90	1287 lm/m	85.8 lm/W	50 mm	5 m
6500K	5 SDCM	—	CRI ≥90	1274 lm/m	84.9 lm/W	50 mm	5 m
—	—	Red	—	483 lm/m	32.2 lm/W	50 mm	7 m
—	—	Green	—	1014 lm/m	67.6 lm/W	50 mm	7 m
—	—	Blue	—	230 lm/m	15.3 lm/W	50 mm	5 m
—	—	Yellow	—	374 lm/m	24.9 lm/W	50 mm	7 m
—	—	Orange	—	455 lm/m	30.3 lm/W	50 mm	7 m
—	—	Pink	—	1040 lm/m	69.3 lm/W	50 mm	5 m

NS-T1617V24-CCx-A — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	256 lm/m	51.2 lm/W	50 mm	24 m
2100K (+150/−150 K)	—	—	CRI ≥90	285 lm/m	56.9 lm/W	50 mm	24 m
2400K (+150/−150 K)	—	—	CRI ≥90	311 lm/m	62.1 lm/W	50 mm	24 m
2700K	3 SDCM	—	CRI ≥90	335 lm/m	66.9 lm/W	50 mm	24 m
3000K	3 SDCM	—	CRI ≥90	346 lm/m	69.1 lm/W	50 mm	24 m
3500K	3 SDCM	—	CRI ≥90	358 lm/m	71.5 lm/W	50 mm	24 m
4000K	3 SDCM	—	CRI ≥90	360 lm/m	71.9 lm/W	50 mm	24 m
5000K	4 SDCM	—	CRI ≥90	367 lm/m	73.3 lm/W	50 mm	24 m
6500K	5 SDCM	—	CRI ≥90	362 lm/m	72.3 lm/W	50 mm	24 m
—	—	Red	—	141 lm/m	28.2 lm/W	50 mm	32 m
—	—	Green	—	406 lm/m	81.1 lm/W	50 mm	20 m
—	—	Blue	—	77 lm/m	15.4 lm/W	50 mm	22 m
—	—	Yellow	—	111 lm/m	22.2 lm/W	50 mm	30 m
—	—	Orange	—	120 lm/m	23.9 lm/W	50 mm	30 m
—	—	Pink	—	308 lm/m	61.6 lm/W	50 mm	22 m

NS-T1617V24-CCx-A — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	487 lm/m	48.7 lm/W	50 mm	15 m
2100K (+150/−150 K)	—	—	CRI ≥90	547 lm/m	54.7 lm/W	50 mm	15 m
2400K (+150/−150 K)	—	—	CRI ≥90	593 lm/m	59.3 lm/W	50 mm	15 m
2700K	3 SDCM	—	CRI ≥90	637 lm/m	63.7 lm/W	50 mm	15 m
3000K	3 SDCM	—	CRI ≥90	664 lm/m	66.4 lm/W	50 mm	15 m
3500K	3 SDCM	—	CRI ≥90	690 lm/m	69 lm/W	50 mm	15 m
4000K	3 SDCM	—	CRI ≥90	699 lm/m	69.9 lm/W	50 mm	15 m
5000K	4 SDCM	—	CRI ≥90	715 lm/m	71.5 lm/W	50 mm	15 m
6500K	5 SDCM	—	CRI ≥90	702 lm/m	70.2 lm/W	50 mm	15 m
—	—	Red	—	291 lm/m	29.1 lm/W	50 mm	22 m
—	—	Green	—	676 lm/m	67.6 lm/W	50 mm	14 m
—	—	Blue	—	138 lm/m	13.8 lm/W	50 mm	15 m
—	—	Yellow	—	219 lm/m	21.9 lm/W	50 mm	21 m
—	—	Orange	—	257 lm/m	25.7 lm/W	50 mm	20 m
—	—	Pink	—	579 lm/m	57.9 lm/W	50 mm	15 m

NS-T1617V24-CCx-A — 15 W/m — CC

Max ambient: 35 °C · Outputs: White 1800K–6500K, 3 fixed colors

Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	—	—	CRI ≥90	702 lm/m	46.8 lm/W	50 mm	12 m
2100K (+150/−150 K)	—	—	CRI ≥90	783 lm/m	52.2 lm/W	50 mm	12 m
2400K (+150/−150 K)	—	—	CRI ≥90	855 lm/m	57 lm/W	50 mm	12 m
2700K	3 SDCM	—	CRI ≥90	921 lm/m	61.4 lm/W	50 mm	12 m
3000K	3 SDCM	—	CRI ≥90	962 lm/m	64.1 lm/W	50 mm	12 m
3500K	3 SDCM	—	CRI ≥90	999 lm/m	66.6 lm/W	50 mm	12 m
4000K	3 SDCM	—	CRI ≥90	1020 lm/m	68 lm/W	50 mm	12 m
5000K	4 SDCM	—	CRI ≥90	1046 lm/m	69.7 lm/W	50 mm	12 m
6500K	5 SDCM	—	CRI ≥90	1019 lm/m	67.9 lm/W	50 mm	12 m
—	—	Green	—	869 lm/m	57.9 lm/W	50 mm	9 m
—	—	Blue	—	197 lm/m	13.1 lm/W	50 mm	12 m
—	—	Pink	—	852 lm/m	56.8 lm/W	50 mm	12 m

NS-T1617V24-Ca-A — 11 W/m — CV

Max ambient: — · Outputs: White 2700K–6500K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	10 W/m	780 lm/m	78 lm/W	71.4 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	10 W/m	830 lm/m	83 lm/W	71.4 mm	5 m
Full output	—	CRI ≥90	11 W/m	924 lm/m	84 lm/W	71.4 mm	5 m

NS-T1617V24-Crgb-A — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	72 lm/m	21.9 lm/W	83.3 mm	5 m
Single channel	Green	3.3 W/m	260 lm/m	78.8 lm/W	83.3 mm	5 m
Single channel	Blue	3.3 W/m	43 lm/m	13 lm/W	83.3 mm	5 m
Full output	—	10 W/m	380 lm/m	38 lm/W	83.3 mm	5 m

NS-T1617V24-Crgbwx-A — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.7 W/m	83 lm/m	22 lm/W	83.3 mm	5 m
Single channel	—	Green	—	3.7 W/m	306 lm/m	81.6 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	3.7 W/m	54 lm/m	14.4 lm/W	83.3 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	3.7 W/m	261 lm/m	69.6 lm/W	83.3 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	3.7 W/m	270 lm/m	72.1 lm/W	83.3 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥90	3.7 W/m	281 lm/m	74.9 lm/W	83.3 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	3.7 W/m	286 lm/m	76.2 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	735 lm/m	49 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	749 lm/m	49.9 lm/W	83.3 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	759 lm/m	50.6 lm/W	83.3 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	770 lm/m	51.3 lm/W	83.3 mm	5 m

NS-T1617V24-Crgbwx-UCS512C1L-8P-A — 15 W/m — DMX512

Max ambient: 35 °C · Outputs: White 4000K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	—	Red	—	5 W/m	59 lm/m	11.8 lm/W	125 mm	5 m	8 px/m	UCS512C1L
Single channel	—	Green	—	5 W/m	189 lm/m	37.7 lm/W	125 mm	5 m	8 px/m	UCS512C1L
Single channel	—	Blue	—	5 W/m	38 lm/m	7.5 lm/W	125 mm	5 m	8 px/m	UCS512C1L
Single channel	4000K (+400/−200 K)	—	CRI ≥80	5 W/m	160 lm/m	32 lm/W	125 mm	5 m	8 px/m	UCS512C1L
Full output	White channel: 4000K	—	—	15 W/m	450 lm/m	30 lm/W	125 mm	5 m	8 px/m	UCS512C1L
