NS-T1212

Last updated: 2026-08-13

Bend Direction	Top Bend
IP Rating	IP67
Input Voltage	DC 24 V
Power Options	5–10 W/m
Warranty Years	5 years

About NS-T1212

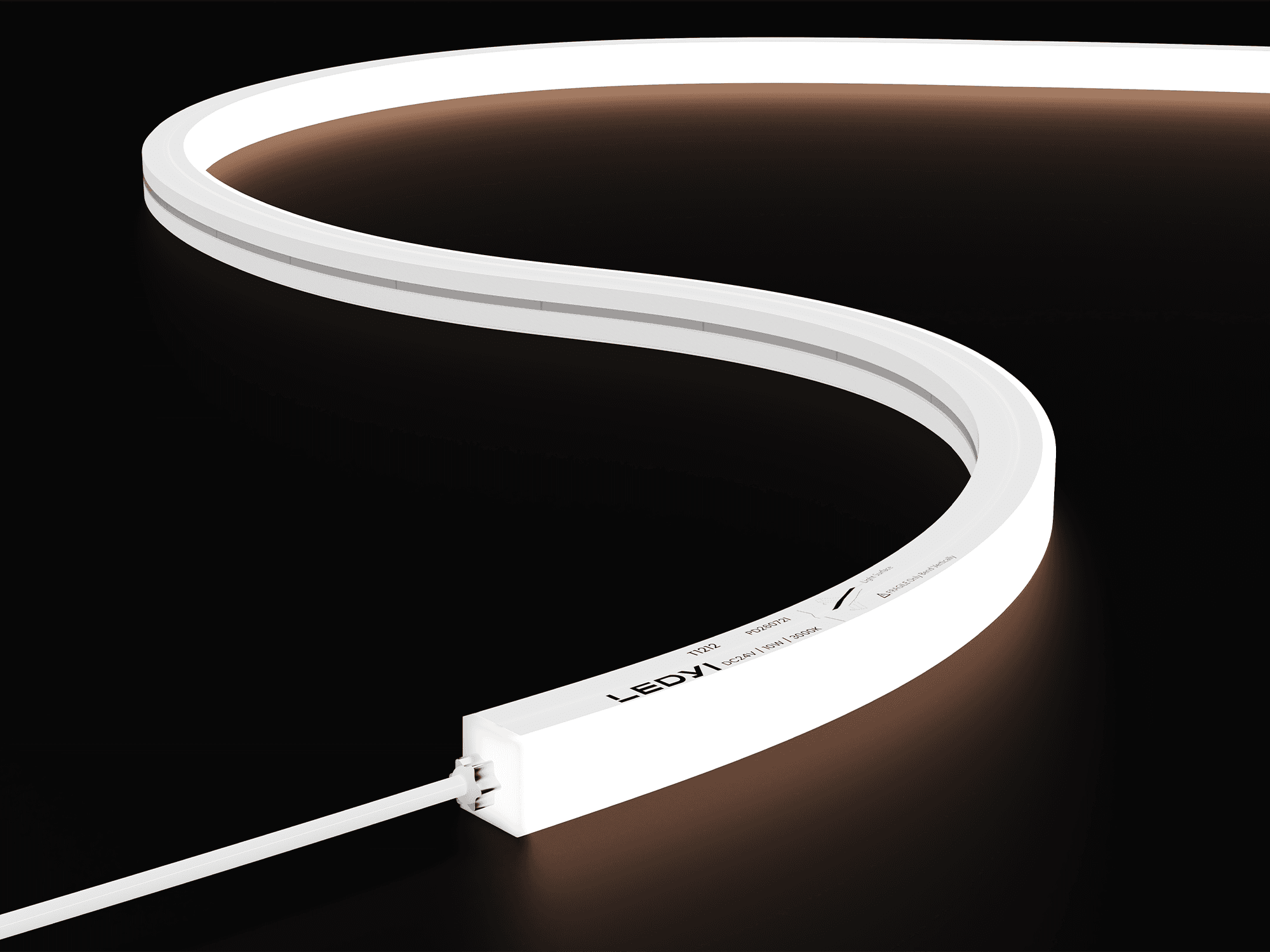

NS-T1212 is a top-bend silicone LED neon flex profile with a 12 mm by 12 mm cross section, DC 24 V input, and published single-color, tunable-white, and RGB configurations. Its optical distribution structure produces a uniform illuminated surface without shadows. The integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high transparency and strength, with IP67 resistance to salt solution, acids, alkalis, and UV.

NS-T1212 Specifications

Specifications for NS-T1212
Bend Direction	Top Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

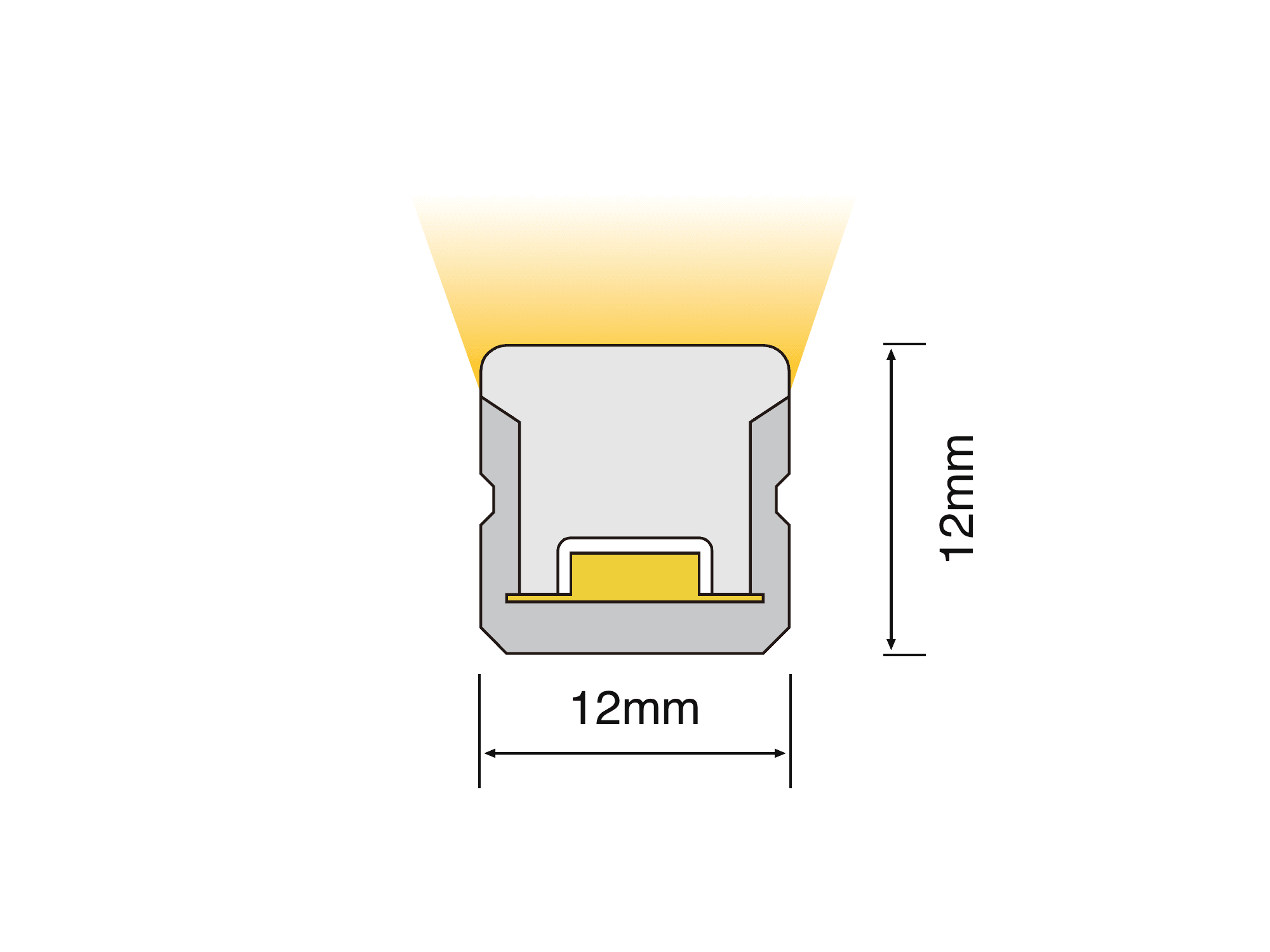

Cross Section Width	12 mm
Cross Section Height	12 mm
Power Options	5–10 W/m
Min Bend Diameter	150 mm
Max Run Length	up to 25 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

NS-T1212 Ordering Information

Ordering information for NS-T1212
#	Ordering Code	Input	Power	Drive	Protocol	Outputs
1	NS-T1212V24-CCx-A	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-T1212V24-CCx-A	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-T1212V24-Ca-A	DC 24 V	10 W/m	CV	—	White 2700K–6500K	details ↓
4	NS-T1212V24-Crgb-A	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓

Ordering codes are order templates — one code may cover several power variants. Each configuration below is one sellable combination.

NS-T1212 Photometric Data

NS-T1212V24-CCx-A — 5 W/m — CC

Max ambient: — · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	265 lm/m	53 lm/W	50 mm	19 m
2100K (+150/−150 K)	—	CRI ≥90	277 lm/m	55.3 lm/W	50 mm	19 m
2400K (+150/−150 K)	—	CRI ≥90	291 lm/m	58.2 lm/W	50 mm	19 m
2700K (+150/−150 K)	—	CRI ≥90	306 lm/m	61.2 lm/W	50 mm	19 m
3000K (+150/−150 K)	—	CRI ≥90	317 lm/m	63.3 lm/W	50 mm	19 m
3500K (+200/−200 K)	—	CRI ≥90	314 lm/m	62.9 lm/W	50 mm	19 m
4000K (+400/−200 K)	—	CRI ≥90	340 lm/m	68 lm/W	50 mm	19 m
5000K (+500/−300 K)	—	CRI ≥90	339 lm/m	67.8 lm/W	50 mm	19 m
6500K (+500/−500 K)	—	CRI ≥90	317 lm/m	63.4 lm/W	50 mm	19 m
—	Red	—	136 lm/m	27.2 lm/W	50 mm	25 m
—	Green	—	389 lm/m	77.9 lm/W	50 mm	19 m
—	Blue	—	65 lm/m	13 lm/W	50 mm	19 m
—	Yellow	—	98 lm/m	19.6 lm/W	50 mm	25 m
—	Orange	—	127 lm/m	25.4 lm/W	50 mm	25 m
—	Pink	—	279 lm/m	55.8 lm/W	50 mm	19 m

NS-T1212V24-CCx-A — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	505 lm/m	50.5 lm/W	50 mm	13 m
2100K (+150/−150 K)	—	CRI ≥90	527 lm/m	52.7 lm/W	50 mm	13 m
2400K (+150/−150 K)	—	CRI ≥90	557 lm/m	55.7 lm/W	50 mm	13 m
2700K (+150/−150 K)	—	CRI ≥90	583 lm/m	58.3 lm/W	50 mm	13 m
3000K (+150/−150 K)	—	CRI ≥90	605 lm/m	60.5 lm/W	50 mm	13 m
3500K (+200/−200 K)	—	CRI ≥90	599 lm/m	59.9 lm/W	50 mm	13 m
4000K (+400/−200 K)	—	CRI ≥90	655 lm/m	65.5 lm/W	50 mm	13 m
5000K (+500/−300 K)	—	CRI ≥90	651 lm/m	65.1 lm/W	50 mm	13 m
6500K (+500/−500 K)	—	CRI ≥90	611 lm/m	61.1 lm/W	50 mm	13 m
—	Red	—	273 lm/m	27.3 lm/W	50 mm	18 m
—	Green	—	647 lm/m	64.7 lm/W	50 mm	13 m
—	Blue	—	123 lm/m	12.3 lm/W	50 mm	13 m
—	Yellow	—	201 lm/m	20.1 lm/W	50 mm	18 m
—	Orange	—	275 lm/m	27.5 lm/W	50 mm	18 m
—	Pink	—	536 lm/m	53.6 lm/W	50 mm	13 m

NS-T1212V24-Ca-A — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 2700K–6500K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	5 W/m	286 lm/m	57.1 lm/W	50 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	5 W/m	323 lm/m	64.6 lm/W	50 mm	5 m
Full output	—	CRI ≥90	10 W/m	604 lm/m	60.4 lm/W	50 mm	5 m

NS-T1212V24-Crgb-A — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	59 lm/m	17.8 lm/W	50 mm	5 m
Single channel	Green	3.3 W/m	163 lm/m	49.5 lm/W	50 mm	5 m
Single channel	Blue	3.3 W/m	26 lm/m	7.8 lm/W	50 mm	5 m
Full output	—	10 W/m	253 lm/m	25.3 lm/W	50 mm	5 m
