NS-T1010S

Last updated: 2026-08-13

Bend Direction	Top Bend
IP Rating	IP67
Input Voltage	DC 24 V
Power Options	5–10 W/m
Warranty Years	5 years

About NS-T1010S

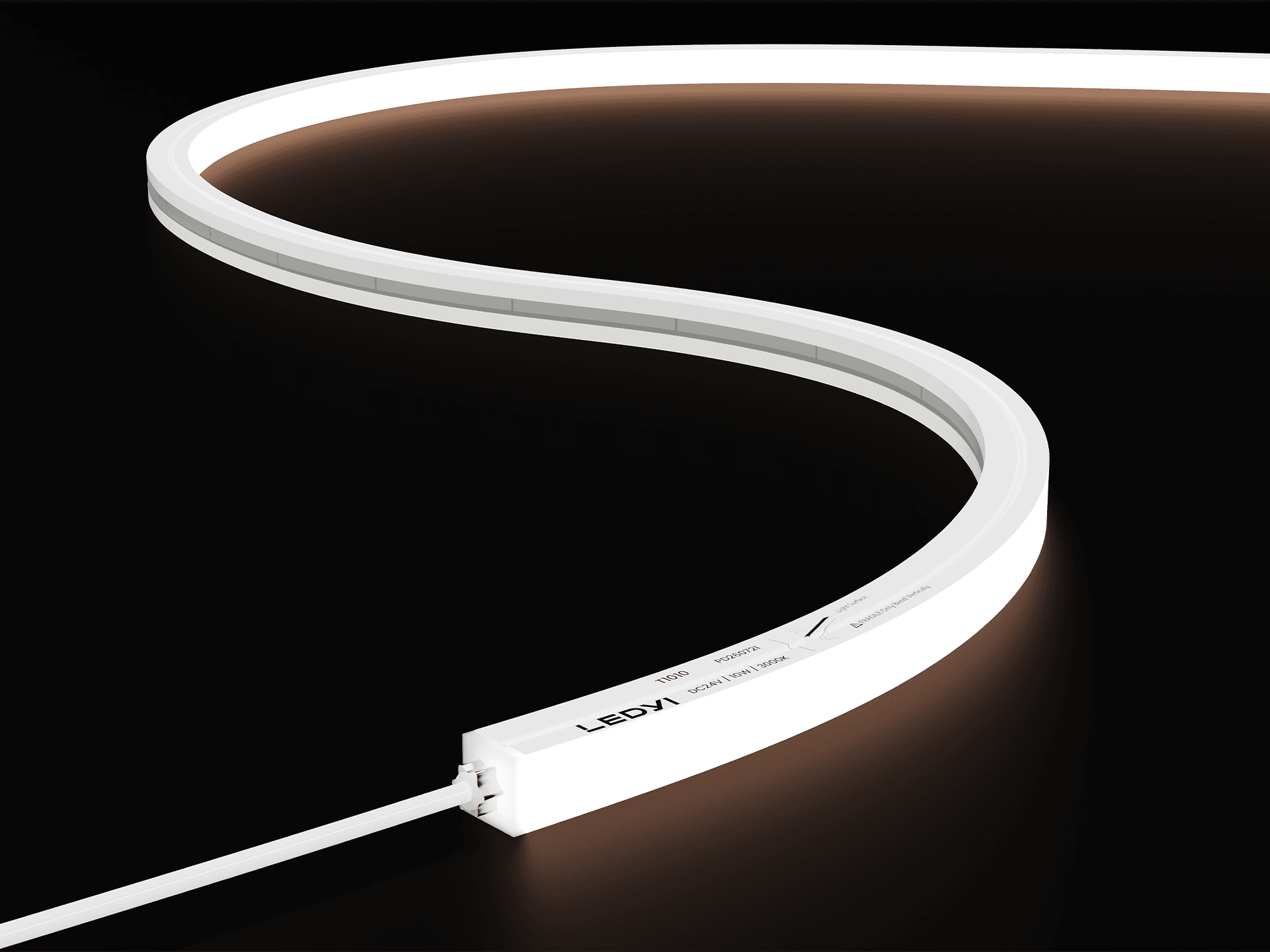

NS-T1010S is a top-bend silicone LED neon flex profile with a 10 mm by 10 mm cross section, DC 24 V input, and published single-color, tunable-white, and RGB configurations. Its optical distribution structure produces a uniform illuminated surface without shadows. The integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high transparency and strength, with IP67 resistance to salt solution, acids, alkalis, and UV.

NS-T1010S Specifications

Specifications for NS-T1010S
Bend Direction	Top Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

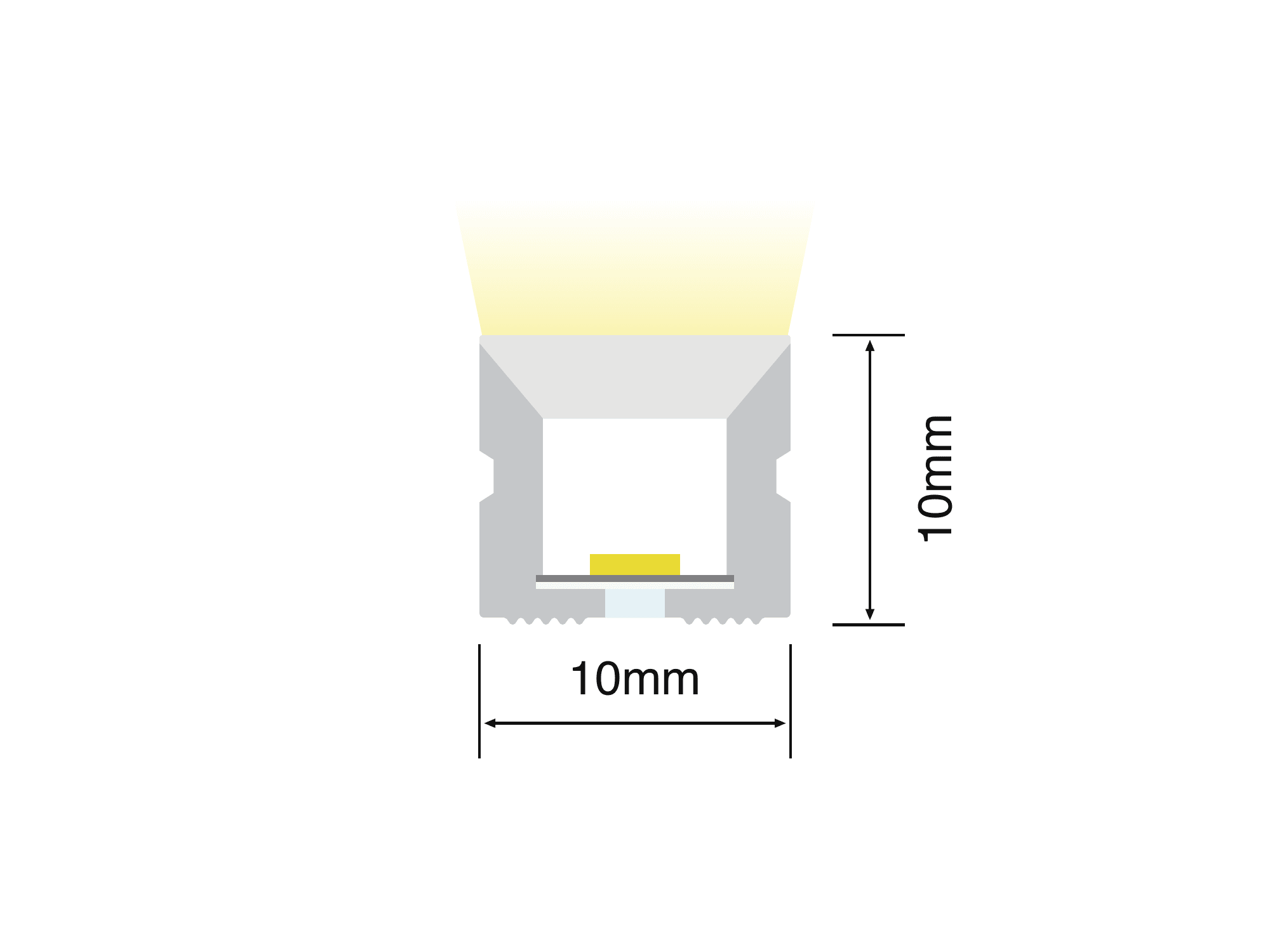

Cross Section Width	10 mm
Cross Section Height	10 mm
Power Options	5–10 W/m
Min Bend Diameter	150 mm
Max Run Length	up to 25 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

NS-T1010S Ordering Information

Ordering information for NS-T1010S
#	Ordering Code	Input	Power	Drive	Protocol	Outputs
1	NS-T1010SV24-CCx-C	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-T1010SV24-CCx-C	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-T1010SV24-Ca-C	DC 24 V	10 W/m	CV	—	White 2700K–6500K	details ↓
4	NS-T1010SV24-Crgb-C	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓

Ordering codes are order templates — one code may cover several power variants. Each configuration below is one sellable combination.

NS-T1010S Photometric Data

NS-T1010SV24-CCx-C — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	304 lm/m	60.9 lm/W	50 mm	19 m
2100K (+150/−150 K)	—	CRI ≥90	325 lm/m	65.1 lm/W	50 mm	19 m
2400K (+150/−150 K)	—	CRI ≥90	345 lm/m	69 lm/W	50 mm	19 m
2700K (+150/−150 K)	—	CRI ≥90	371 lm/m	74.1 lm/W	50 mm	19 m
3000K (+150/−150 K)	—	CRI ≥90	353 lm/m	70.7 lm/W	50 mm	19 m
3500K (+200/−200 K)	—	CRI ≥90	349 lm/m	69.8 lm/W	50 mm	19 m
4000K (+400/−200 K)	—	CRI ≥90	397 lm/m	79.3 lm/W	50 mm	19 m
5000K (+500/−300 K)	—	CRI ≥90	397 lm/m	79.3 lm/W	50 mm	19 m
6500K (+500/−500 K)	—	CRI ≥90	385 lm/m	77 lm/W	50 mm	19 m
—	Red	—	159 lm/m	31.8 lm/W	50 mm	25 m
—	Green	—	471 lm/m	94.1 lm/W	50 mm	19 m
—	Blue	—	81 lm/m	16.2 lm/W	50 mm	19 m
—	Yellow	—	116 lm/m	23.2 lm/W	50 mm	25 m
—	Orange	—	151 lm/m	30.2 lm/W	50 mm	25 m
—	Pink	—	322 lm/m	64.4 lm/W	50 mm	19 m

NS-T1010SV24-CCx-C — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	580 lm/m	58 lm/W	50 mm	13 m
2100K (+150/−150 K)	—	CRI ≥90	620 lm/m	62 lm/W	50 mm	13 m
2400K (+150/−150 K)	—	CRI ≥90	660 lm/m	66 lm/W	50 mm	13 m
2700K (+150/−150 K)	—	CRI ≥90	706 lm/m	70.6 lm/W	50 mm	13 m
3000K (+150/−150 K)	—	CRI ≥90	675 lm/m	67.5 lm/W	50 mm	13 m
3500K (+200/−200 K)	—	CRI ≥90	665 lm/m	66.5 lm/W	50 mm	13 m
4000K (+400/−200 K)	—	CRI ≥90	764 lm/m	76.4 lm/W	50 mm	13 m
5000K (+500/−300 K)	—	CRI ≥90	762 lm/m	76.2 lm/W	50 mm	13 m
6500K (+500/−500 K)	—	CRI ≥90	742 lm/m	74.2 lm/W	50 mm	13 m
—	Red	—	319 lm/m	31.9 lm/W	50 mm	18 m
—	Green	—	782 lm/m	78.2 lm/W	50 mm	13 m
—	Blue	—	154 lm/m	15.4 lm/W	50 mm	13 m
—	Yellow	—	238 lm/m	23.8 lm/W	50 mm	18 m
—	Orange	—	327 lm/m	32.7 lm/W	50 mm	18 m
—	Pink	—	618 lm/m	61.8 lm/W	50 mm	13 m

NS-T1010SV24-Ca-C — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 2700K–6500K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	5 W/m	330 lm/m	65.9 lm/W	50 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	5 W/m	361 lm/m	72.1 lm/W	50 mm	5 m
Full output	—	CRI ≥90	10 W/m	686 lm/m	68.6 lm/W	50 mm	5 m

NS-T1010SV24-Crgb-C — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	69 lm/m	20.8 lm/W	50 mm	5 m
Single channel	Green	3.3 W/m	196 lm/m	59.3 lm/W	50 mm	5 m
Single channel	Blue	3.3 W/m	33 lm/m	9.9 lm/W	50 mm	5 m
Full output	—	10 W/m	304 lm/m	30.4 lm/W	50 mm	5 m

NS-T1010S Downloads

Specification SheetPDF · 1.2 MB

Download

NS-T1010S Integrating Sphere Test ReportZIP · 0.2 MB

Request download

Leave your contact details to receive this file by email.

NS-T1010S IES Photometric FilesZIP · 23.5 MB

Request download

Leave your contact details to receive this file by email.
