NS-S1225

Last updated: 2026-08-13

Bend Direction	Side Bend
IP Rating	IP67
Input Voltage	DC 24 V
Power Options	5–15 W/m
Warranty Years	5 years

About NS-S1225

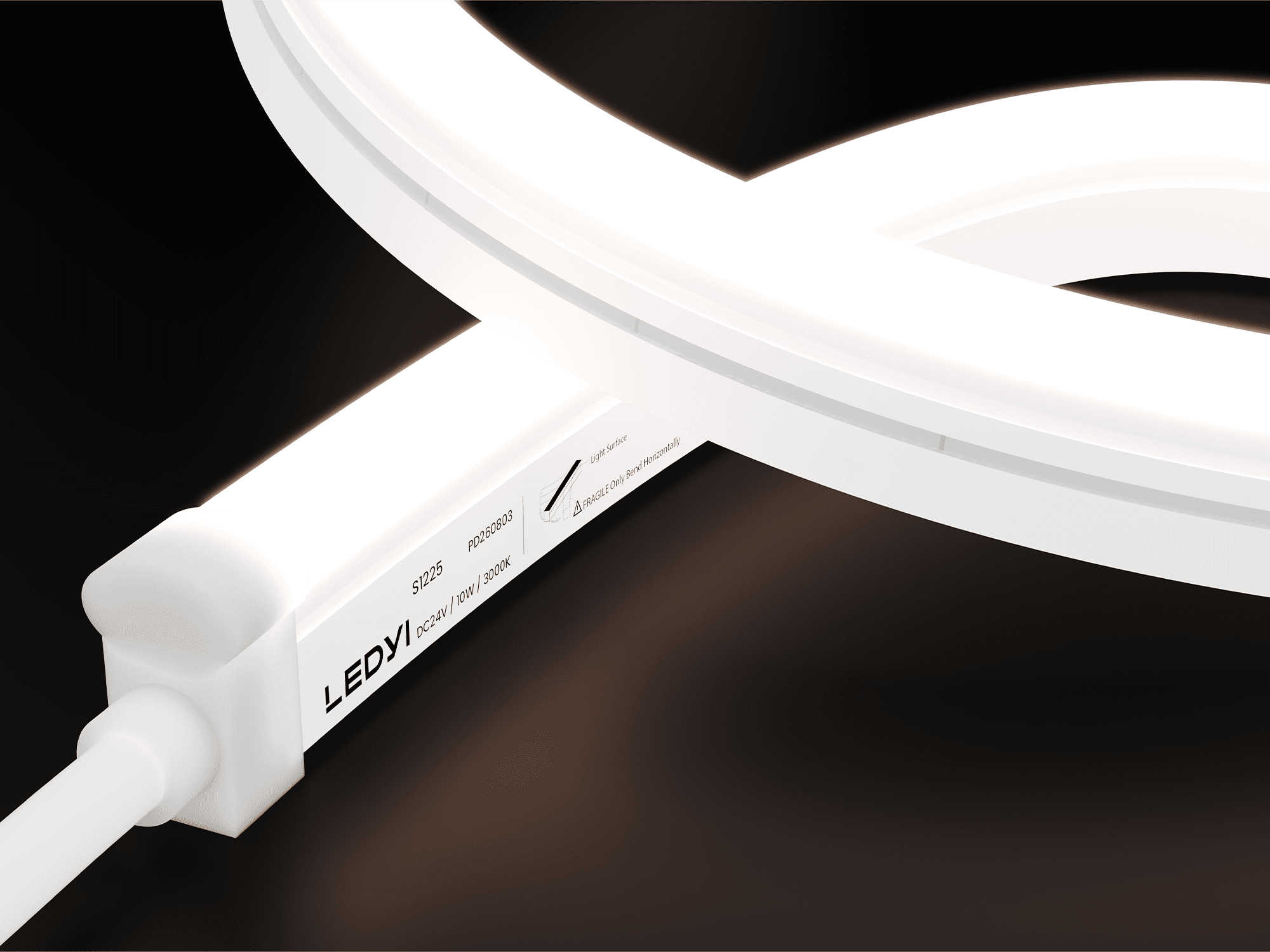

NS-S1225 is a side-bend silicone LED neon flex profile with a 12 mm by 25 mm cross section, DC 24 V input, and published single-color, tunable-white, RGB, RGBW, and DMX512 configurations. Its integrated-extrusion Dow SILASTIC ET-7021 silicone housing combines high transparency and strength. The optical distribution structure provides a uniform illuminated surface without shadows, with IP67 resistance to salt solution, acids, alkalis, and UV.

NS-S1225 Specifications

Specifications for NS-S1225
Bend Direction	Side Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

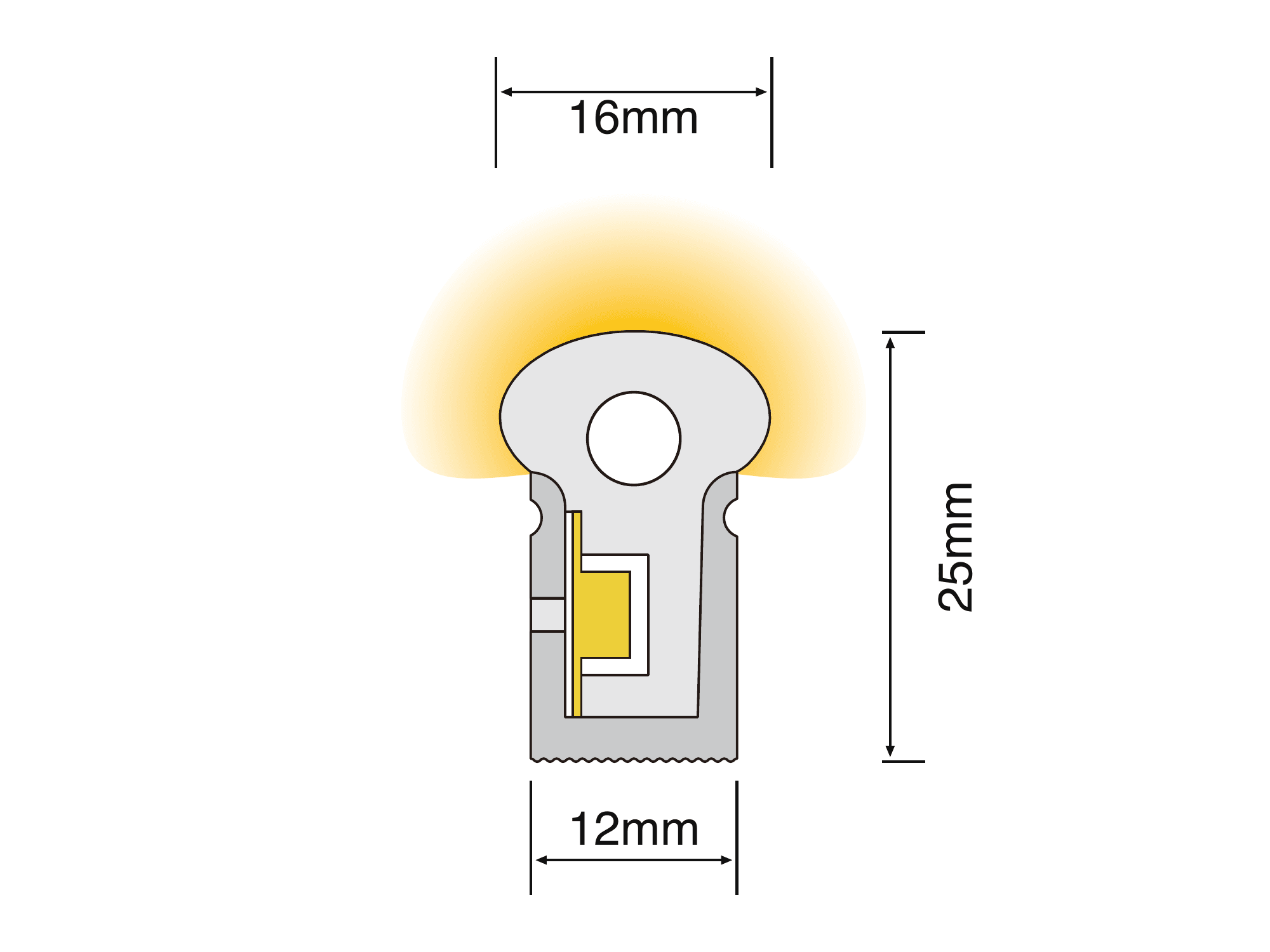

Cross Section Width	12 mm
Cross Section Height	25 mm
Power Options	5–15 W/m
Min Bend Diameter	150 mm
Max Run Length	up to 35 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

NS-S1225 Ordering Information

Ordering information for NS-S1225
#	Ordering Code	Input	Power	Drive	Protocol	Outputs
1	NS-S1225V24-CCx-A	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-S1225V24-CCx-A	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-S1225V24-CCx-A	DC 24 V	15 W/m	CC	—	White 1800K–6500K, 3 fixed colors	details ↓
4	NS-S1225V24-Ca-A (SMD2835)	DC 24 V	15 W/m	CV	—	White 2700K–6000K	details ↓
5	NS-S1225V24-Ca-A (SMD3014)	DC 24 V	15 W/m	CV	—	White 2700K–6000K	details ↓
6	NS-S1225V24-Crgb-A (SMD4040)	DC 24 V	15 W/m	CV	—	3 fixed colors, RGB	details ↓
7	NS-S1225V24-Crgb-A (SMD5050)	DC 24 V	15 W/m	CV	—	3 fixed colors, RGB	details ↓
8	NS-S1225V24-Crgbwx-A (SMD5050RGB+2835)	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
9	NS-S1225V24-Crgbwx-A (SMD5050RGBW 4in1)	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
10	NS-S1225V24-Crgb-UCS512C1L-8P-A	DC 24 V	12 W/m	—	DMX512	3 fixed colors, RGB	details ↓
11	NS-S1225V24-Crgbwx-UCS512C1L-8P-A	DC 24 V	15 W/m	—	DMX512	White 4000K, 3 fixed colors, RGBW	details ↓

Ordering codes are order templates — one code may cover several power variants. Each configuration below is one sellable combination.

NS-S1225 Photometric Data

NS-S1225V24-CCx-A — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	147 lm/m	29.4 lm/W	50 mm	27 m
2100K (+150/−150 K)	—	CRI ≥90	157 lm/m	31.5 lm/W	50 mm	27 m
2400K (+150/−150 K)	—	CRI ≥90	167 lm/m	33.4 lm/W	50 mm	27 m
2700K (+150/−150 K)	—	CRI ≥90	183 lm/m	36.6 lm/W	50 mm	27 m
3000K (+150/−150 K)	—	CRI ≥90	189 lm/m	37.8 lm/W	50 mm	27 m
3500K (+200/−200 K)	—	CRI ≥90	181 lm/m	36.2 lm/W	50 mm	27 m
4000K (+400/−200 K)	—	CRI ≥90	198 lm/m	39.5 lm/W	50 mm	27 m
5000K (+500/−300 K)	—	CRI ≥90	189 lm/m	37.9 lm/W	50 mm	27 m
6500K (+500/−500 K)	—	CRI ≥90	192 lm/m	38.4 lm/W	50 mm	27 m
—	Red	—	80 lm/m	16.1 lm/W	50 mm	35 m
—	Green	—	225 lm/m	45 lm/W	50 mm	27 m
—	Blue	—	38 lm/m	7.7 lm/W	50 mm	27 m
—	Yellow	—	59 lm/m	11.8 lm/W	50 mm	35 m
—	Orange	—	74 lm/m	14.9 lm/W	50 mm	35 m
—	Pink	—	167 lm/m	33.3 lm/W	50 mm	27 m

NS-S1225V24-CCx-A — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	280 lm/m	28 lm/W	50 mm	18 m
2100K (+150/−150 K)	—	CRI ≥90	300 lm/m	30 lm/W	50 mm	18 m
2400K (+150/−150 K)	—	CRI ≥90	320 lm/m	32 lm/W	50 mm	18 m
2700K (+150/−150 K)	—	CRI ≥90	349 lm/m	34.9 lm/W	50 mm	18 m
3000K (+150/−150 K)	—	CRI ≥90	361 lm/m	36.1 lm/W	50 mm	18 m
3500K (+200/−200 K)	—	CRI ≥90	345 lm/m	34.5 lm/W	50 mm	18 m
4000K (+400/−200 K)	—	CRI ≥90	381 lm/m	38.1 lm/W	50 mm	18 m
5000K (+500/−300 K)	—	CRI ≥90	364 lm/m	36.4 lm/W	50 mm	18 m
6500K (+500/−500 K)	—	CRI ≥90	370 lm/m	37 lm/W	50 mm	18 m
—	Red	—	161 lm/m	16.1 lm/W	50 mm	18 m
—	Green	—	374 lm/m	37.4 lm/W	50 mm	16 m
—	Blue	—	73 lm/m	7.3 lm/W	50 mm	18 m
—	Yellow	—	121 lm/m	12.1 lm/W	50 mm	18 m
—	Orange	—	161 lm/m	16.1 lm/W	50 mm	18 m
—	Pink	—	320 lm/m	32 lm/W	50 mm	18 m

NS-S1225V24-CCx-A — 15 W/m — CC

Max ambient: 35 °C · Outputs: White 1800K–6500K, 3 fixed colors

Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	401 lm/m	26.7 lm/W	50 mm	12 m
2100K (+150/−150 K)	—	CRI ≥90	429 lm/m	28.6 lm/W	50 mm	12 m
2400K (+150/−150 K)	—	CRI ≥90	462 lm/m	30.8 lm/W	50 mm	12 m
2700K (+150/−150 K)	—	CRI ≥90	499 lm/m	33.3 lm/W	50 mm	12 m
3000K (+150/−150 K)	—	CRI ≥90	521 lm/m	34.7 lm/W	50 mm	12 m
3500K (+200/−200 K)	—	CRI ≥90	494 lm/m	32.9 lm/W	50 mm	12 m
4000K (+400/−200 K)	—	CRI ≥90	554 lm/m	36.9 lm/W	50 mm	12 m
5000K (+500/−300 K)	—	CRI ≥90	527 lm/m	35.1 lm/W	50 mm	12 m
6500K (+500/−500 K)	—	CRI ≥90	537 lm/m	35.8 lm/W	50 mm	12 m
—	Green	—	483 lm/m	32.2 lm/W	50 mm	10 m
—	Blue	—	101 lm/m	6.8 lm/W	50 mm	12 m
—	Pink	—	461 lm/m	30.7 lm/W	50 mm	12 m

NS-S1225V24-Ca-A (SMD2835) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6000K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	7.5 W/m	265 lm/m	35.3 lm/W	62.5 mm	5 m
Single channel	6000K (+500/−500 K)	CRI ≥90	7.5 W/m	275 lm/m	36.7 lm/W	62.5 mm	5 m
Full output	—	CRI ≥90	15 W/m	536 lm/m	35.7 lm/W	62.5 mm	5 m

NS-S1225V24-Ca-A (SMD3014) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6000K

Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	7.5 W/m	251 lm/m	33.4 lm/W	50 mm	5 m
Single channel	6000K (+500/−500 K)	CRI ≥90	7.5 W/m	268 lm/m	35.7 lm/W	50 mm	5 m
Full output	—	CRI ≥90	15 W/m	513 lm/m	34.2 lm/W	50 mm	5 m

NS-S1225V24-Crgb-A (SMD4040) — 15 W/m — CV

Max ambient: 35 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	5 W/m	62 lm/m	12.4 lm/W	62.5 mm	5 m
Single channel	Green	5 W/m	162 lm/m	32.4 lm/W	62.5 mm	5 m
Single channel	Blue	5 W/m	30 lm/m	5.9 lm/W	62.5 mm	5 m
Full output	—	15 W/m	248 lm/m	16.5 lm/W	62.5 mm	5 m

NS-S1225V24-Crgb-A (SMD5050) — 15 W/m — CV

Max ambient: 35 °C · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	5 W/m	59 lm/m	11.8 lm/W	83.3 mm	5 m
Single channel	Green	5 W/m	189 lm/m	37.7 lm/W	83.3 mm	5 m
Single channel	Blue	5 W/m	32 lm/m	6.4 lm/W	83.3 mm	5 m
Full output	—	15 W/m	269 lm/m	17.9 lm/W	83.3 mm	5 m

NS-S1225V24-Crgbwx-A (SMD5050RGB+2835) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.8 W/m	47 lm/m	12.6 lm/W	83.3 mm	5 m
Single channel	—	Green	—	3.8 W/m	162 lm/m	43.2 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	3.8 W/m	31 lm/m	8.3 lm/W	83.3 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	3.8 W/m	148 lm/m	39.4 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	392 lm/m	26.1 lm/W	83.3 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	3.8 W/m	156 lm/m	41.5 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	404 lm/m	26.9 lm/W	83.3 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥90	3.8 W/m	157 lm/m	41.8 lm/W	83.3 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	405 lm/m	27 lm/W	83.3 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	3.8 W/m	151 lm/m	40.3 lm/W	83.3 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	393 lm/m	26.2 lm/W	83.3 mm	5 m

NS-S1225V24-Crgbwx-A (SMD5050RGBW 4in1) — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.8 W/m	42 lm/m	11.2 lm/W	62.5 mm	5 m
Single channel	—	Green	—	3.8 W/m	97 lm/m	25.9 lm/W	62.5 mm	5 m
Single channel	—	Blue	—	3.8 W/m	31 lm/m	8.3 lm/W	62.5 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥80	3.8 W/m	110 lm/m	29.3 lm/W	62.5 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	273 lm/m	18.2 lm/W	62.5 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥80	3.8 W/m	106 lm/m	28.2 lm/W	62.5 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	261 lm/m	17.4 lm/W	62.5 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥80	3.8 W/m	122 lm/m	32.4 lm/W	62.5 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	294 lm/m	19.6 lm/W	62.5 mm	5 m
Single channel	6500K (+400/−400 K)	—	CRI ≥80	3.8 W/m	120 lm/m	32.1 lm/W	62.5 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	288 lm/m	19.2 lm/W	62.5 mm	5 m

NS-S1225V24-Crgb-UCS512C1L-8P-A — 12 W/m — DMX512

Max ambient: — · Outputs: 3 fixed colors, RGB

Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	Red	5 W/m	27 lm/m	5.3 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	Green	5 W/m	99 lm/m	19.8 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	Blue	5 W/m	17 lm/m	3.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	—	12 W/m	142 lm/m	11.8 lm/W	125 mm	7 m	8 px/m	UCS512C1L

NS-S1225V24-Crgbwx-UCS512C1L-8P-A — 15 W/m — DMX512

Max ambient: 35 °C · Outputs: White 4000K, 3 fixed colors, RGBW

Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	—	Red	—	5 W/m	26 lm/m	5.1 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Green	—	5 W/m	72 lm/m	14.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Blue	—	5 W/m	17 lm/m	3.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	4000K (+300/−300 K)	—	CRI ≥80	5 W/m	82 lm/m	16.3 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	White channel: 4000K	—	—	15 W/m	197 lm/m	13.1 lm/W	125 mm	7 m	8 px/m	UCS512C1L
