NS-S0612

Bend Direction: Side Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 5–10 W/m
Warranty Years: 5 years

Overview

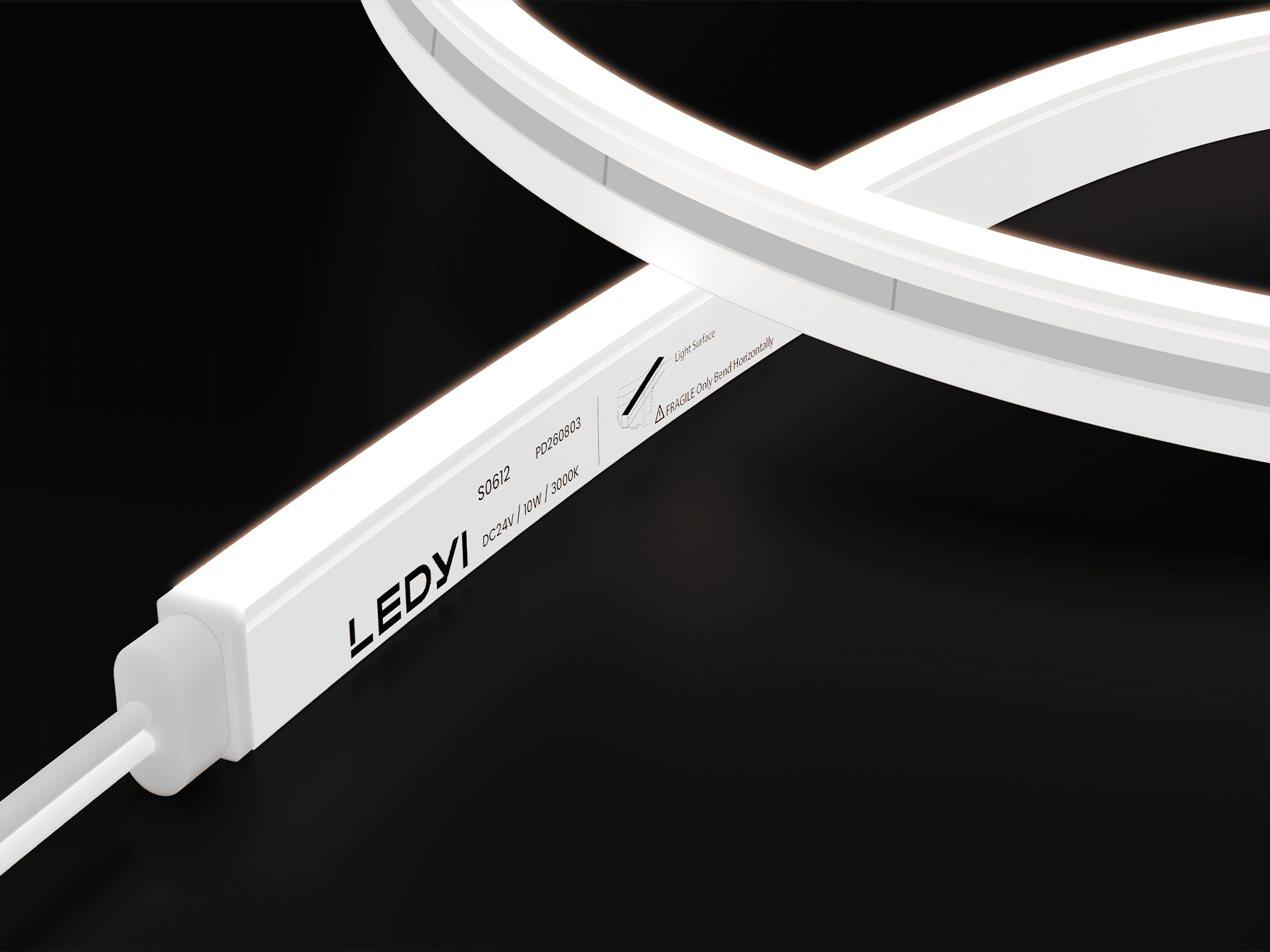

NS-S0612 is a side-bend silicone LED neon flex profile with a 6 mm by 12 mm cross section, DC 24 V input, and published single-color, tunable-white, and RGB configurations. Its integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high transparency and strength. The optical distribution structure produces a uniform illuminated surface without shadows and resists salt solution, acids, alkalis, and UV.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NS-S0612, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "ns-s0612",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NS-S0612
Bend Direction	Side Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

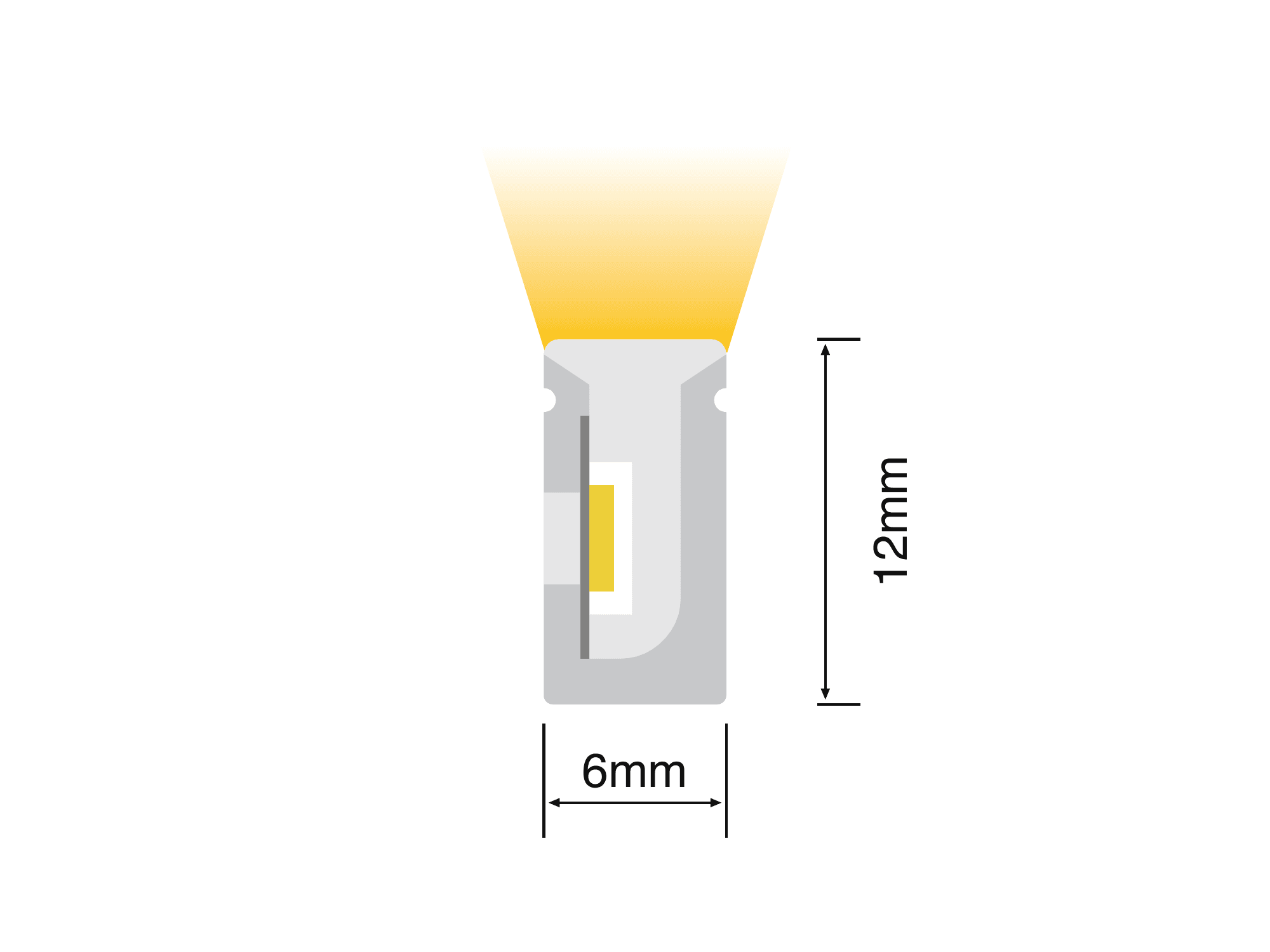

Cross Section Width	6 mm
Cross Section Height	12 mm
Power Options	5–10 W/m
Min Bend Diameter	50 mm
Max Run Length	5–25 m (configuration-specific)
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NS-S0612
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NS-S0612V24-CCx-A	DC 24 V	5 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NS-S0612V24-CCx-A	DC 24 V	10 W/m	CC	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NS-S0612V24-Ca-A	DC 24 V	10 W/m	CV	—	White 2700K–6500K	details ↓
4	NS-S0612V24-Crgb-A	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NS-S0612V24-CCx-A — 5 W/m — CC

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-S0612V24-CCx-A — 5 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	147 lm/m	29.4 lm/W	50 mm	19 m
2100K (+150/−150 K)	—	CRI ≥90	163 lm/m	32.5 lm/W	50 mm	19 m
2400K (+150/−150 K)	—	CRI ≥90	172 lm/m	34.5 lm/W	50 mm	19 m
2700K (+150/−150 K)	—	CRI ≥90	189 lm/m	37.8 lm/W	50 mm	19 m
3000K (+150/−150 K)	—	CRI ≥90	192 lm/m	38.4 lm/W	50 mm	19 m
3500K (+200/−200 K)	—	CRI ≥90	182 lm/m	36.4 lm/W	50 mm	19 m
4000K (+400/−200 K)	—	CRI ≥90	200 lm/m	40.1 lm/W	50 mm	19 m
5000K (+500/−300 K)	—	CRI ≥90	200 lm/m	40.1 lm/W	50 mm	19 m
6500K (+500/−500 K)	—	CRI ≥90	189 lm/m	37.9 lm/W	50 mm	19 m
—	Red	—	79 lm/m	15.8 lm/W	50 mm	25 m
—	Green	—	235 lm/m	47.1 lm/W	50 mm	19 m
—	Blue	—	41 lm/m	8.2 lm/W	50 mm	19 m
—	Yellow	—	58 lm/m	11.6 lm/W	50 mm	25 m
—	Orange	—	74 lm/m	14.9 lm/W	50 mm	25 m
—	Pink	—	166 lm/m	33.2 lm/W	50 mm	19 m

NS-S0612V24-CCx-A — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NS-S0612V24-CCx-A — 10 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	CRI ≥90	280 lm/m	28 lm/W	50 mm	13 m
2100K (+150/−150 K)	—	CRI ≥90	310 lm/m	31 lm/W	50 mm	13 m
2400K (+150/−150 K)	—	CRI ≥90	330 lm/m	33 lm/W	50 mm	13 m
2700K (+150/−150 K)	—	CRI ≥90	360 lm/m	36 lm/W	50 mm	13 m
3000K (+150/−150 K)	—	CRI ≥90	367 lm/m	36.7 lm/W	50 mm	13 m
3500K (+200/−200 K)	—	CRI ≥90	347 lm/m	34.7 lm/W	50 mm	13 m
4000K (+400/−200 K)	—	CRI ≥90	386 lm/m	38.6 lm/W	50 mm	13 m
5000K (+500/−300 K)	—	CRI ≥90	385 lm/m	38.5 lm/W	50 mm	13 m
6500K (+500/−500 K)	—	CRI ≥90	365 lm/m	36.5 lm/W	50 mm	13 m
—	Red	—	158 lm/m	15.8 lm/W	50 mm	18 m
—	Green	—	391 lm/m	39.1 lm/W	50 mm	13 m
—	Blue	—	78 lm/m	7.8 lm/W	50 mm	13 m
—	Yellow	—	119 lm/m	11.9 lm/W	50 mm	18 m
—	Orange	—	161 lm/m	16.1 lm/W	50 mm	18 m
—	Pink	—	319 lm/m	31.9 lm/W	50 mm	13 m

NS-S0612V24-Ca-A — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 2700K–6500K

Photometric data — NS-S0612V24-Ca-A — 10 W/m — CV
Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	5 W/m	156 lm/m	31.1 lm/W	50 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	5 W/m	180 lm/m	35.9 lm/W	50 mm	5 m
Full output	—	CRI ≥90	10 W/m	333 lm/m	33.3 lm/W	50 mm	5 m

NS-S0612V24-Crgb-A — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Photometric data — NS-S0612V24-Crgb-A — 10 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	32 lm/m	9.8 lm/W	50 mm	5 m
Single channel	Green	3.3 W/m	90 lm/m	27.3 lm/W	50 mm	5 m
Single channel	Blue	3.3 W/m	15 lm/m	4.5 lm/W	50 mm	5 m
Full output	—	10 W/m	141 lm/m	14.1 lm/W	50 mm	5 m
