NS-3D1010

Bend Direction: 3D Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 10 W/m
Warranty Years: 5 years

Overview

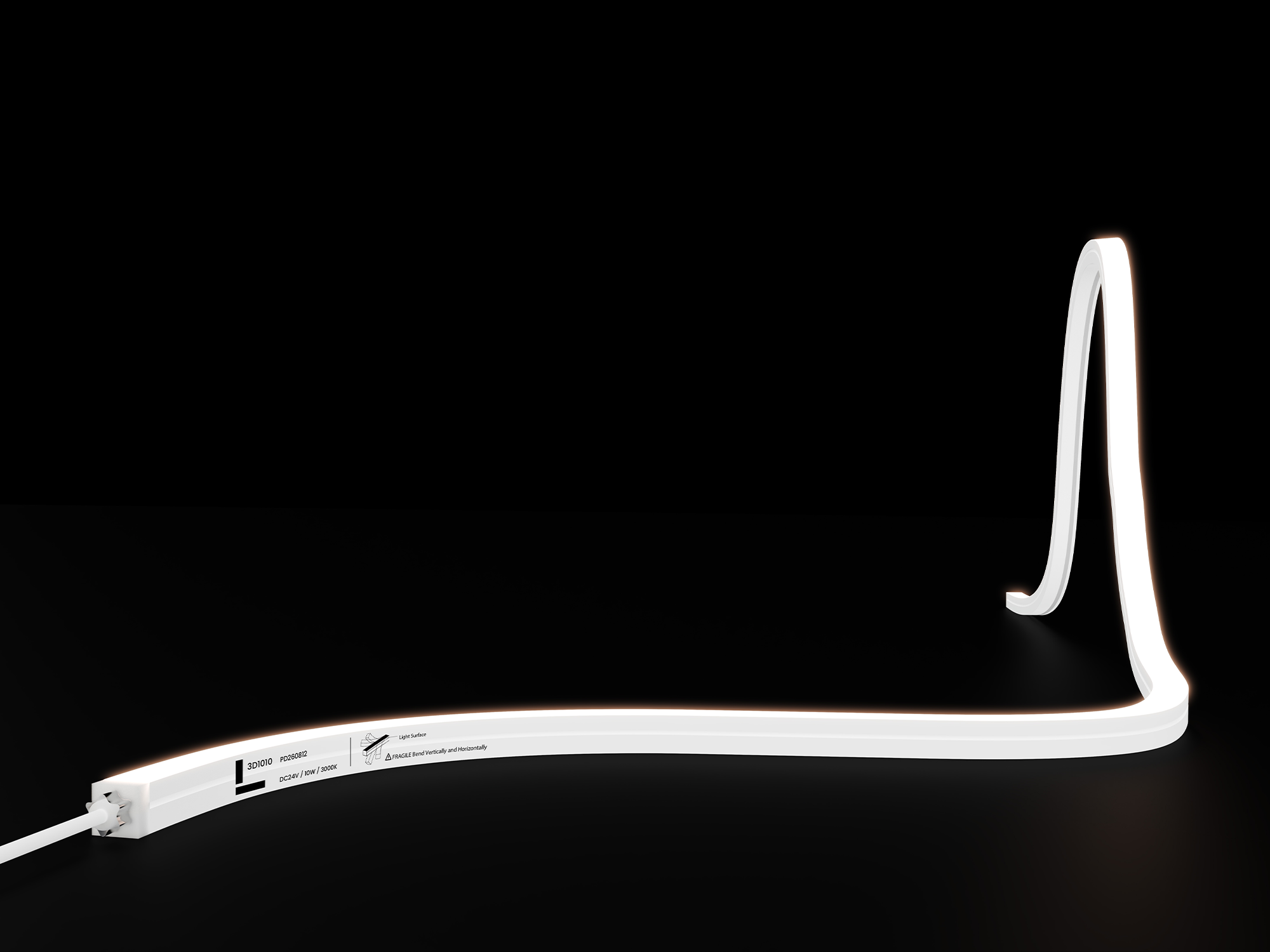

NS-3D1010 is a 3D-bend silicone LED neon flex profile with a 10 mm by 10 mm cross section, DC 24 V input, 10 W/m, and a published single-color configuration in white from 2700 K to 6500 K at CRI ≥90 plus six fixed colors. It combines top bend and side bend in one strip, with a minimum bending diameter of 300 mm in either direction, to follow curves in different planes of a space. Its optical distribution structure gives a uniform illuminated surface without shadows, and the integrated-extrusion Dow SILASTIC ET-7021 silicone housing combines high transparency and strength with IP67 resistance to salt solution, acids, alkalis and UV.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NS-3D1010, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "ns-3d1010",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NS-3D1010
Bend Direction	3D Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

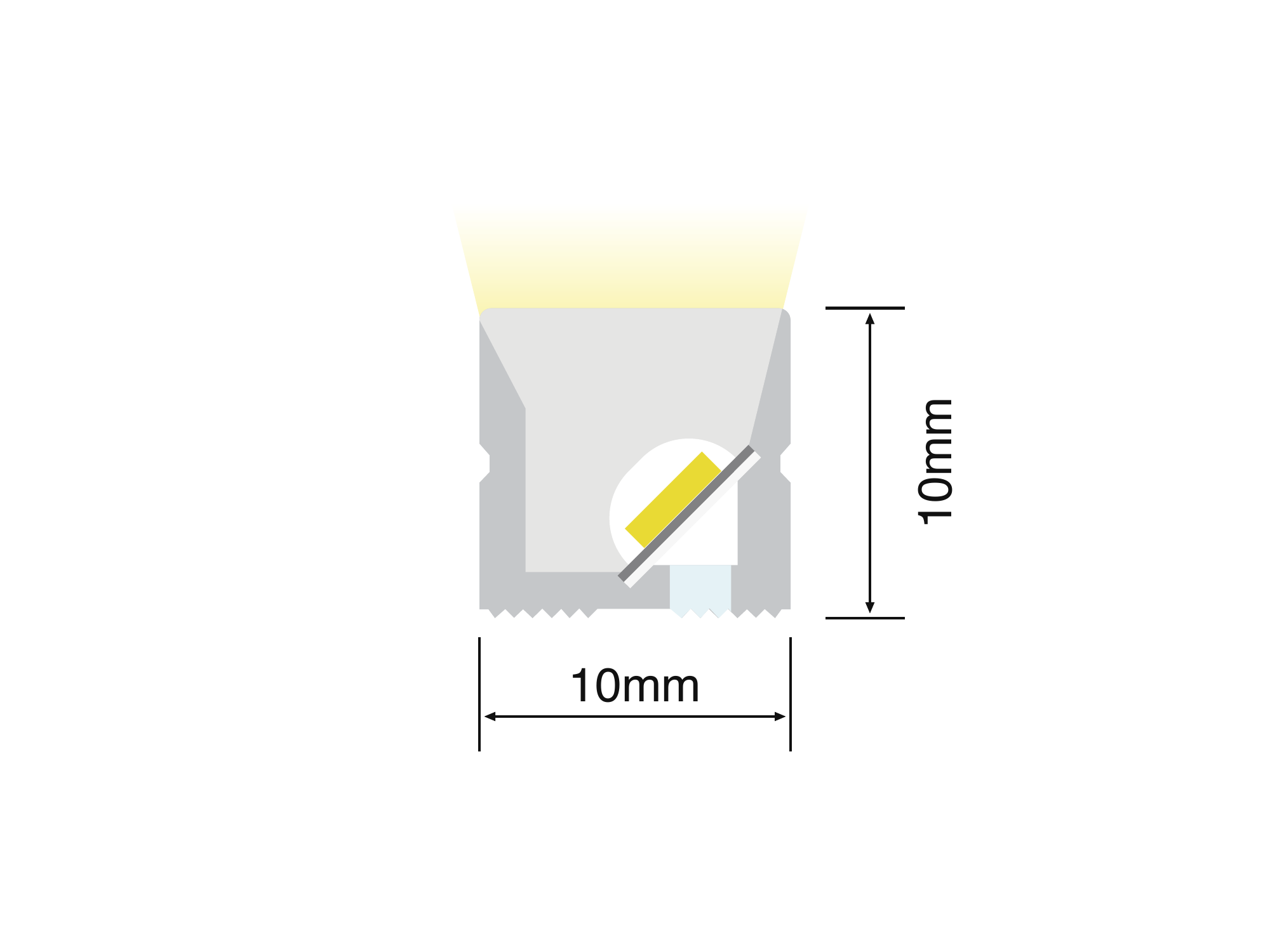

Cross Section Width	10 mm
Cross Section Height	10 mm
Power Options	10 W/m
Min Bend Diameter	300 mm
Max Run Length	5 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NS-3D1010
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NS-3D1010V24-Cx-F	DC 24 V	10 W/m	CV	—	White 2700K–6500K, 6 fixed colors	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NS-3D1010V24-Cx-F — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 2700K–6500K, 6 fixed colors

Photometric data — NS-3D1010V24-Cx-F — 10 W/m — CV
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
2700K (+150/−150 K)	—	CRI ≥90	464 lm/m	46.4 lm/W	35.7 mm	5 m
3000K (+150/−150 K)	—	CRI ≥90	486 lm/m	48.6 lm/W	35.7 mm	5 m
3500K (+200/−200 K)	—	CRI ≥90	491 lm/m	49.1 lm/W	35.7 mm	5 m
4000K (+400/−200 K)	—	CRI ≥90	506 lm/m	50.6 lm/W	35.7 mm	5 m
5000K (+500/−300 K)	—	CRI ≥90	506 lm/m	50.6 lm/W	35.7 mm	5 m
6500K (+500/−500 K)	—	CRI ≥90	493 lm/m	49.3 lm/W	35.7 mm	5 m
—	Red	—	168 lm/m	16.8 lm/W	35.7 mm	5 m
—	Green	—	445 lm/m	44.5 lm/W	35.7 mm	5 m
—	Blue	—	95 lm/m	9.5 lm/W	35.7 mm	5 m
—	Yellow	—	110 lm/m	11 lm/W	35.7 mm	5 m
—	Orange	—	147 lm/m	14.7 lm/W	35.7 mm	5 m
—	Pink	—	371 lm/m	37.1 lm/W	35.7 mm	5 m
