NB-S1220

Bend Direction: Side Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 10–15 W/m
Warranty Years: 5 years

Overview

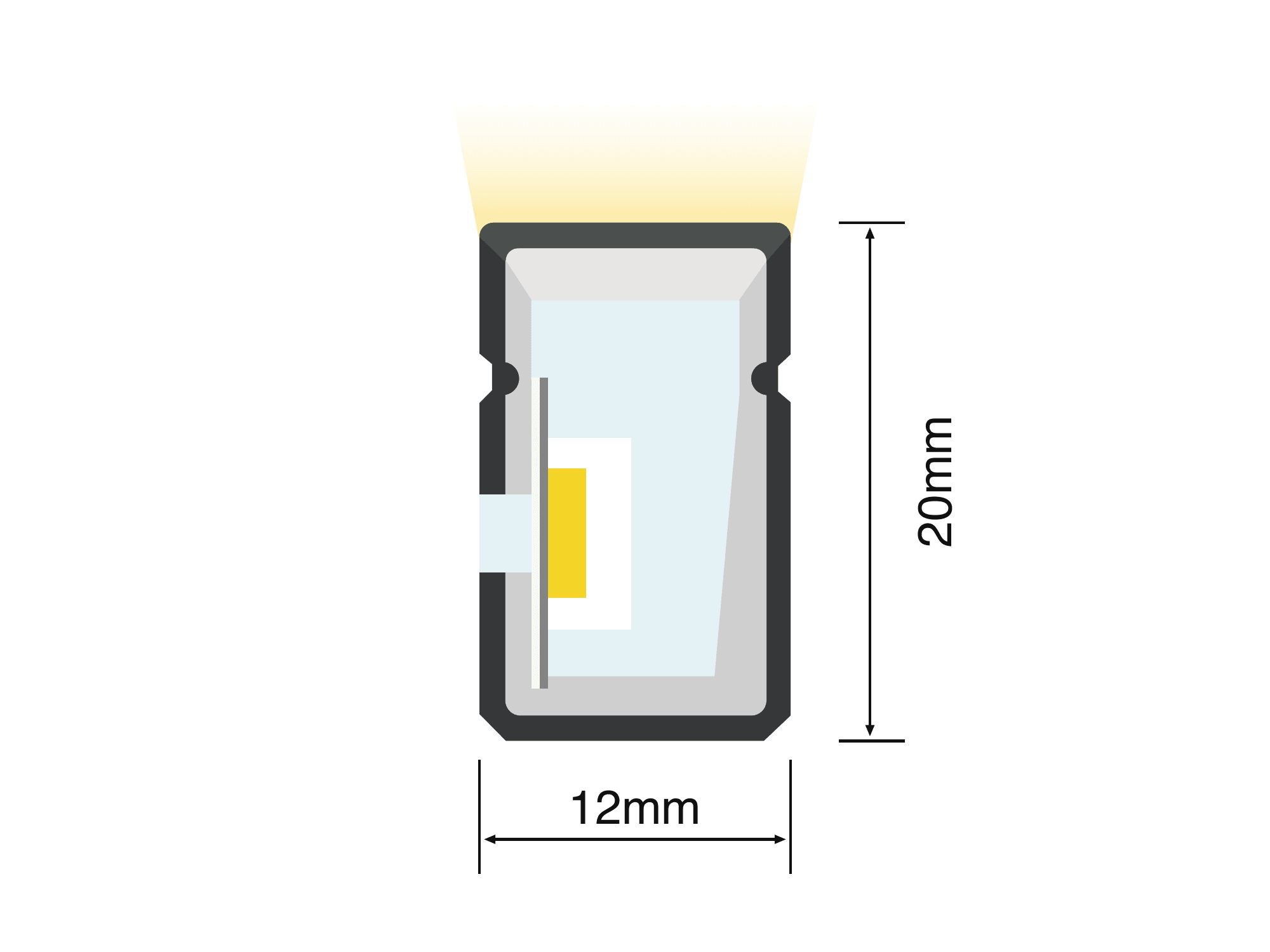

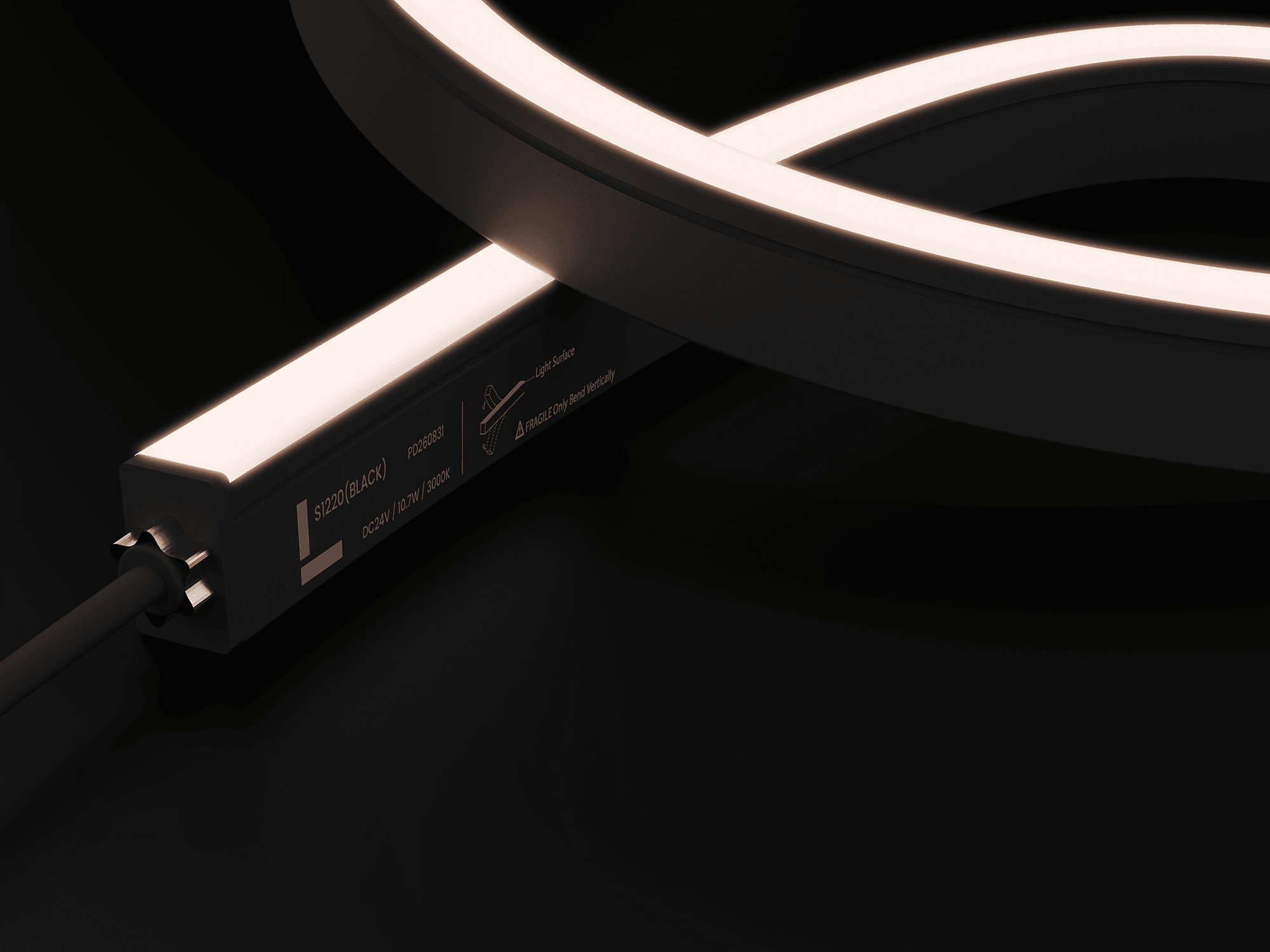

NB-S1220 is a side-bend silicone LED neon flex profile with a black silicone body, a 12 mm by 20 mm cross section, DC 24 V input, and published single-color, tunable-white, RGB and RGBW configurations. The strip bends horizontally in the mounting plane while the emitting face keeps facing the viewer; switched off, the black body reads as a dark line and blends into dark facades, joinery and signage. The integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high strength with IP67 resistance to salt solution, acids, alkalis and UV.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "[email protected]",
  "company": "Example GmbH",
  "message": "NB-S1220, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "nb-s1220",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NB-S1220
Bend Direction	Side Bend
IP Rating	IP67
Material	Silicone
Housing Color	Black
Color Temperature	2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V
Cross Section Width	12 mm
Cross Section Height	20 mm
Power Options	10–15 W/m
Min Bend Diameter	150 mm
Max Run Length	5–18 m (configuration-specific)
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NB-S1220
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NB-S1220V24-CCx-E	DC 24 V	10 W/m	CC	—	White 2700K–6500K, 6 fixed colors	details ↓
2	NB-S1220V24-Ca-E	DC 24 V	10 W/m	CV	—	White 2700K–6500K	details ↓
3	NB-S1220V24-Crgb-E	DC 24 V	10 W/m	CV	—	3 fixed colors, RGB	details ↓
4	NB-S1220V24-Crgbwx-E	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NB-S1220V24-CCx-E — 10 W/m — CC

Max ambient: 45 °C · Outputs: White 2700K–6500K, 6 fixed colors

Photometric data — NB-S1220V24-CCx-E — 10 W/m — CC
Nominal CCT	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
2700K (+150/−150 K)	—	CRI ≥90	103 lm/m	10.3 lm/W	50 mm	17 m
3000K (+150/−150 K)	—	CRI ≥90	109 lm/m	10.9 lm/W	50 mm	17 m
3500K (+200/−200 K)	—	CRI ≥90	109 lm/m	10.9 lm/W	50 mm	17 m
4000K (+400/−200 K)	—	CRI ≥90	107 lm/m	10.7 lm/W	50 mm	17 m
5000K (+500/−300 K)	—	CRI ≥90	110 lm/m	11 lm/W	50 mm	17 m
6500K (+500/−500 K)	—	CRI ≥90	99 lm/m	9.9 lm/W	50 mm	17 m
—	Red	—	47 lm/m	4.7 lm/W	50 mm	18 m
—	Green	—	92 lm/m	9.2 lm/W	50 mm	17 m
—	Blue	—	15 lm/m	1.5 lm/W	50 mm	17 m
—	Yellow	—	33 lm/m	3.3 lm/W	50 mm	18 m
—	Orange	—	40 lm/m	4 lm/W	50 mm	18 m
—	Pink	—	91 lm/m	9.1 lm/W	50 mm	17 m

NB-S1220V24-Ca-E — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 2700K–6500K

Photometric data — NB-S1220V24-Ca-E — 10 W/m — CV
Output State	Nominal CCT	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	5 W/m	55 lm/m	11 lm/W	62.5 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	5 W/m	52 lm/m	10.4 lm/W	62.5 mm	5 m
Full output	—	CRI ≥90	10 W/m	106 lm/m	10.6 lm/W	62.5 mm	5 m

NB-S1220V24-Crgb-E — 10 W/m — CV

Max ambient: 45 °C · Outputs: 3 fixed colors, RGB

Photometric data — NB-S1220V24-Crgb-E — 10 W/m — CV
Output State	Fixed Color	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	Red	3.3 W/m	11 lm/m	3.4 lm/W	83.3 mm	5 m
Single channel	Green	3.3 W/m	33 lm/m	9.9 lm/W	83.3 mm	5 m
Single channel	Blue	3.3 W/m	5 lm/m	1.4 lm/W	83.3 mm	5 m
Full output	—	10 W/m	49 lm/m	4.9 lm/W	83.3 mm	5 m

NB-S1220V24-Crgbwx-E — 15 W/m — CV

Max ambient: 45 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Photometric data — NB-S1220V24-Crgbwx-E — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.3 W/m	12 lm/m	3.5 lm/W	83.3 mm	5 m
Single channel	—	Green	—	3.3 W/m	34 lm/m	10.2 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	3.3 W/m	6 lm/m	1.7 lm/W	83.3 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥90	5 W/m	49 lm/m	9.7 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	98 lm/m	6.5 lm/W	83.3 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥90	5 W/m	51 lm/m	10.2 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	102 lm/m	6.8 lm/W	83.3 mm	5 m
Single channel	3500K (+200/−200 K)	—	CRI ≥90	5 W/m	54 lm/m	10.8 lm/W	83.3 mm	5 m
Full output	White channel: 3500K	—	—	15 W/m	107 lm/m	7.1 lm/W	83.3 mm	5 m
Single channel	4000K (+300/−300 K)	—	CRI ≥90	5 W/m	53 lm/m	10.5 lm/W	83.3 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	104 lm/m	6.9 lm/W	83.3 mm	5 m
Single channel	5000K (+300/−300 K)	—	CRI ≥90	5 W/m	51 lm/m	10.2 lm/W	83.3 mm	5 m
Full output	White channel: 5000K	—	—	15 W/m	101 lm/m	6.7 lm/W	83.3 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥90	5 W/m	47 lm/m	9.3 lm/W	83.3 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	93 lm/m	6.2 lm/W	83.3 mm	5 m
