NW-T1617-UL676

Bend Direction: Top Bend
IP Rating: IP68
Input Voltage: DC 24 V
Power Options: 5–15 W/m
Warranty Years: 3 years

Overview

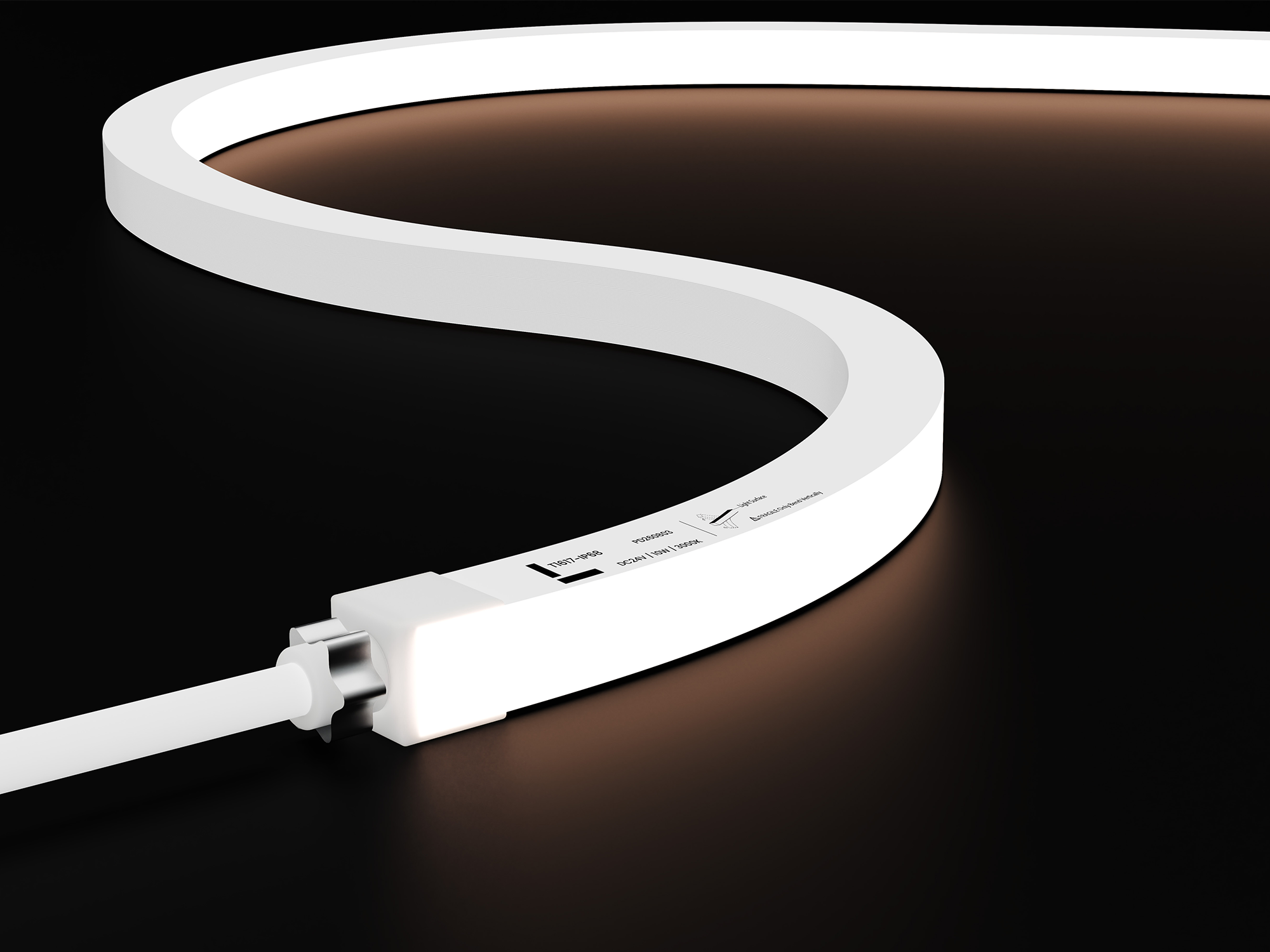

NW-T1617-UL676 is a top-bend silicone LED neon flex profile certified to UL 676 for underwater luminaires in the United States and Canada, with a 16 mm by 17 mm cross section and DC 24 V input. Advanced sealing and an integrated moulding process give IP68 protection to 5 m water depth, and the chlorine-resistant silicone formula (≤5 ppm) holds up in swimming pools. Published configurations cover single-color white from 1800 K to 6500 K at CRI ≥90 and six fixed colours at 5, 10 or 15 W/m, RGBW at 15 W/m, and an RGBW pixel DMX512 version with UCS512C1L drivers at 8 pixels per metre. The optical distribution structure gives uniform illumination with no transparent window and no light leakage, in a smooth matte finish; LED life over 50,000 hours.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NW-T1617-UL676, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "nw-t1617-ul676",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NW-T1617-UL676
Bend Direction	Top Bend
IP Rating	IP68
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Fixed Colors	Red · Green · Blue · Yellow · Orange · Pink
Input Voltage	DC 24 V

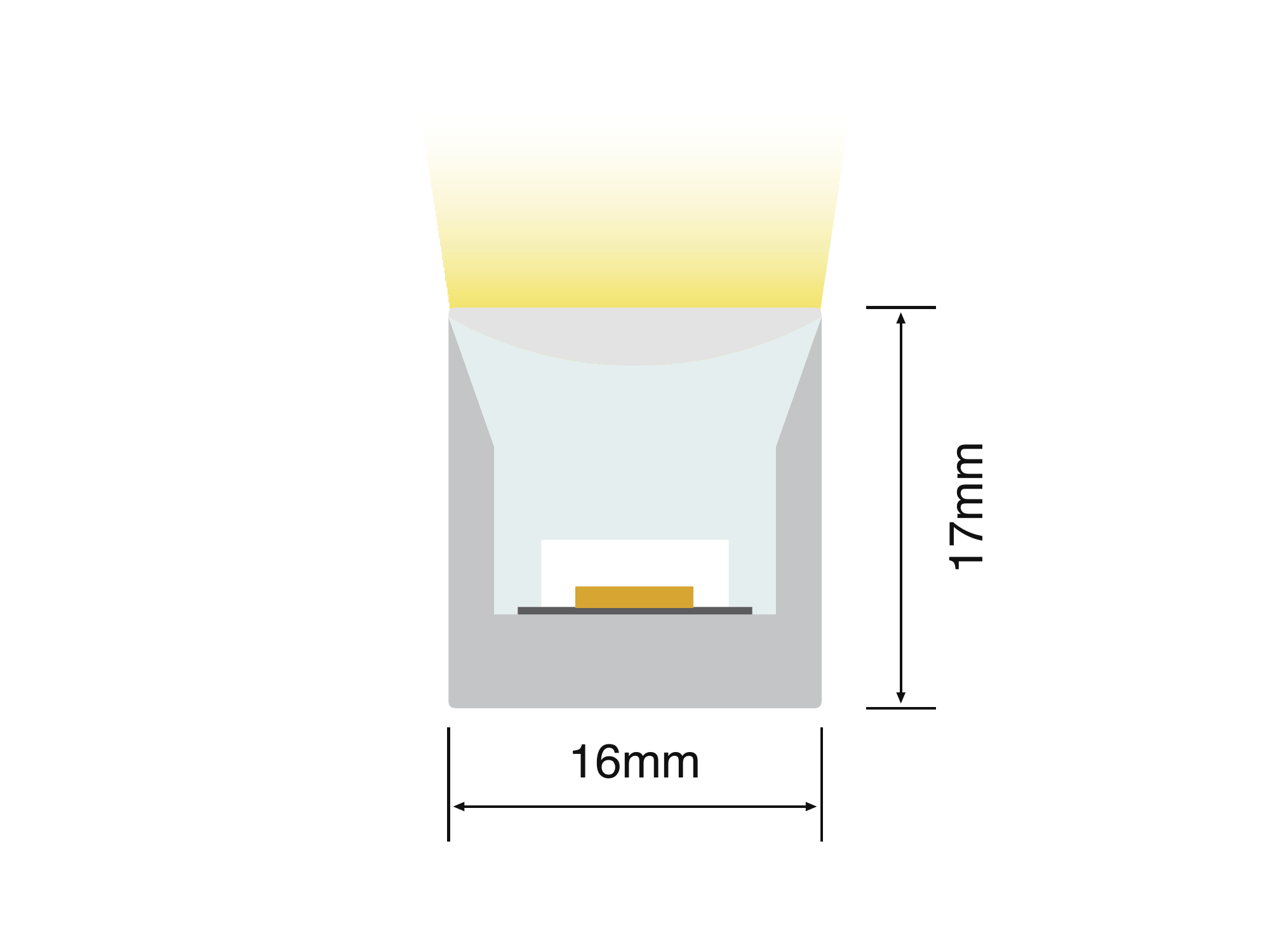

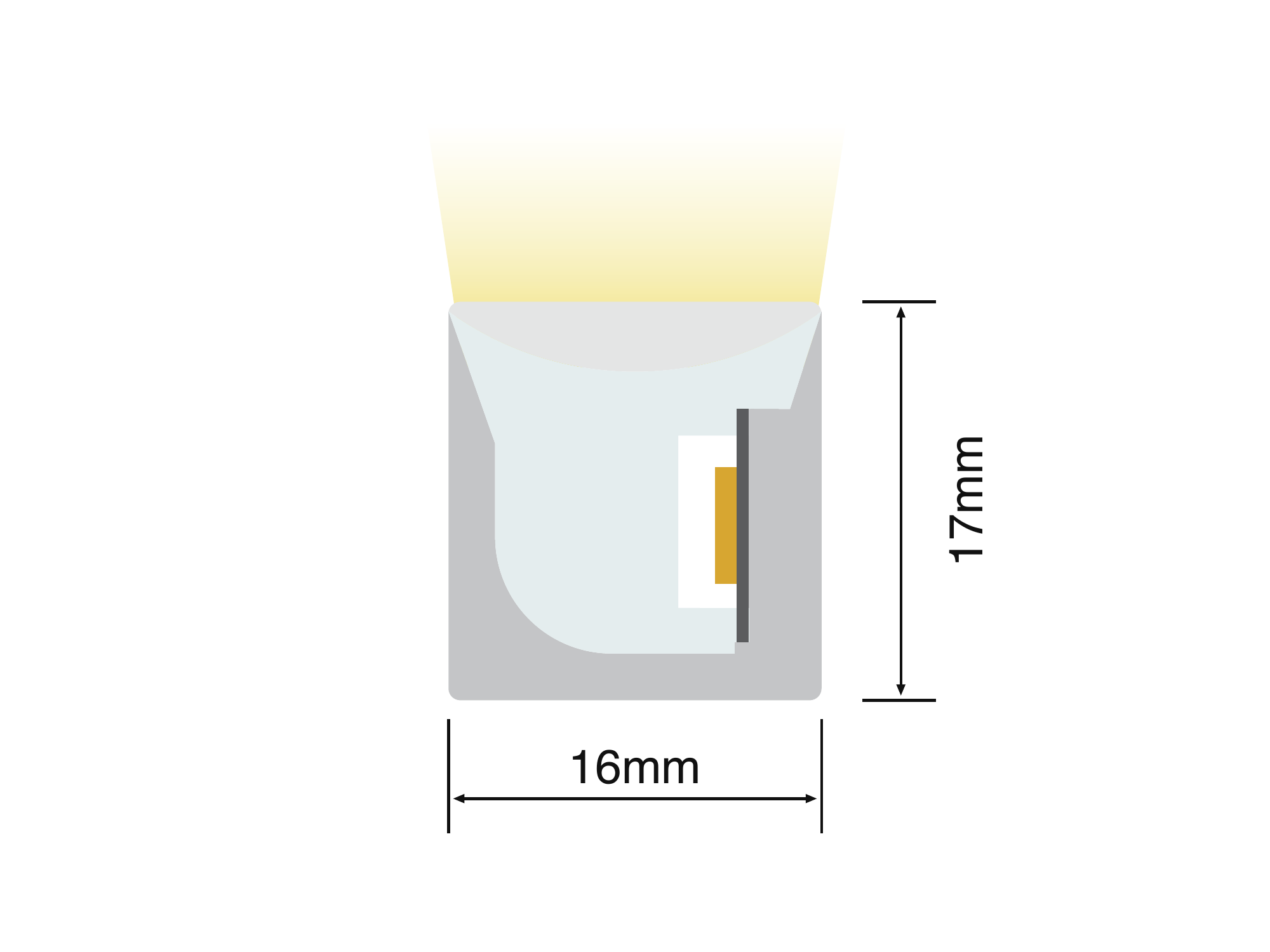

Cross Section Width	16 mm
Cross Section Height	17 mm
Power Options	5–15 W/m
Min Bend Diameter	200 mm
Max Run Length	5–15 m (configuration-specific)
Min Operating Temp	-25 °C
Warranty Years	3 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NW-T1617-UL676
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NW-T1617V24IP68S-Cx-D	DC 24 V	5 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
2	NW-T1617V24IP68S-Cx-D	DC 24 V	10 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
3	NW-T1617V24IP68S-Cx-D	DC 24 V	15 W/m	CV	—	White 1800K–6500K, 6 fixed colors	details ↓
4	NW-T1617V24IP68S-Crgbwx-D	DC 24 V	15 W/m	CV	—	White 2700K–6500K, 3 fixed colors, RGBW	details ↓
5	NW-T1617V24IP68S-Crgbwx-UCS512C1L-8P-D	DC 24 V	15 W/m	CV	DMX512	White 4000K, 3 fixed colors, RGBW	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NW-T1617V24IP68S-Cx-D — 5 W/m — CV

Max ambient: 55 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NW-T1617V24IP68S-Cx-D — 5 W/m — CV
Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	316 lm/m	63.3 lm/W	50 mm	10 m
2100K (+150/−150 K)	—	—	CRI ≥90	353 lm/m	70.6 lm/W	50 mm	10 m
2400K (+150/−150 K)	—	—	CRI ≥90	367 lm/m	73.4 lm/W	50 mm	10 m
2700K	3 SDCM	—	CRI ≥90	396 lm/m	79.1 lm/W	50 mm	10 m
3000K	3 SDCM	—	CRI ≥90	425 lm/m	84.9 lm/W	50 mm	10 m
3500K	3 SDCM	—	CRI ≥90	439 lm/m	87.9 lm/W	50 mm	10 m
4000K	3 SDCM	—	CRI ≥90	449 lm/m	89.9 lm/W	50 mm	10 m
5000K	4 SDCM	—	CRI ≥90	444 lm/m	88.8 lm/W	50 mm	10 m
6500K	5 SDCM	—	CRI ≥90	455 lm/m	90.9 lm/W	50 mm	10 m
—	—	Red	—	177 lm/m	35.3 lm/W	50 mm	15 m
—	—	Green	—	487 lm/m	97.4 lm/W	50 mm	12 m
—	—	Blue	—	90 lm/m	17.9 lm/W	50 mm	8 m
—	—	Yellow	—	128 lm/m	25.6 lm/W	50 mm	13 m
—	—	Orange	—	167 lm/m	33.5 lm/W	50 mm	13 m
—	—	Pink	—	372 lm/m	74.5 lm/W	50 mm	10 m

NW-T1617V24IP68S-Cx-D — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NW-T1617V24IP68S-Cx-D — 10 W/m — CV
Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	603 lm/m	60.3 lm/W	50 mm	7 m
2100K (+150/−150 K)	—	—	CRI ≥90	672 lm/m	67.2 lm/W	50 mm	7 m
2400K (+150/−150 K)	—	—	CRI ≥90	702 lm/m	70.2 lm/W	50 mm	7 m
2700K	3 SDCM	—	CRI ≥90	750 lm/m	75 lm/W	50 mm	7 m
3000K	3 SDCM	—	CRI ≥90	806 lm/m	80.6 lm/W	50 mm	7 m
3500K	3 SDCM	—	CRI ≥90	841 lm/m	84.1 lm/W	50 mm	7 m
4000K	3 SDCM	—	CRI ≥90	866 lm/m	86.6 lm/W	50 mm	7 m
5000K	4 SDCM	—	CRI ≥90	853 lm/m	85.3 lm/W	50 mm	7 m
6500K	5 SDCM	—	CRI ≥90	876 lm/m	87.6 lm/W	50 mm	7 m
—	—	Red	—	354 lm/m	35.4 lm/W	50 mm	9 m
—	—	Green	—	809 lm/m	80.9 lm/W	50 mm	9 m
—	—	Blue	—	170 lm/m	17 lm/W	50 mm	6 m
—	—	Yellow	—	263 lm/m	26.3 lm/W	50 mm	8 m
—	—	Orange	—	363 lm/m	36.3 lm/W	50 mm	9 m
—	—	Pink	—	715 lm/m	71.5 lm/W	50 mm	6 m

NW-T1617V24IP68S-Cx-D — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 1800K–6500K, 6 fixed colors

Photometric data — NW-T1617V24IP68S-Cx-D — 15 W/m — CV
Nominal CCT	SDCM	Fixed Color	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	—	—	CRI ≥90	863 lm/m	57.5 lm/W	50 mm	5 m
2100K (+150/−150 K)	—	—	CRI ≥90	961 lm/m	64.1 lm/W	50 mm	5 m
2400K (+150/−150 K)	—	—	CRI ≥90	1013 lm/m	67.5 lm/W	50 mm	5 m
2700K	3 SDCM	—	CRI ≥90	1076 lm/m	71.7 lm/W	50 mm	5 m
3000K	3 SDCM	—	CRI ≥90	1157 lm/m	77.1 lm/W	50 mm	5 m
3500K	3 SDCM	—	CRI ≥90	1216 lm/m	81 lm/W	50 mm	5 m
4000K	3 SDCM	—	CRI ≥90	1258 lm/m	83.9 lm/W	50 mm	5 m
5000K	4 SDCM	—	CRI ≥90	1235 lm/m	82.4 lm/W	50 mm	5 m
6500K	5 SDCM	—	CRI ≥90	1272 lm/m	84.8 lm/W	50 mm	5 m
—	—	Red	—	522 lm/m	34.8 lm/W	50 mm	7 m
—	—	Green	—	1045 lm/m	69.6 lm/W	50 mm	7 m
—	—	Blue	—	236 lm/m	15.8 lm/W	50 mm	5 m
—	—	Yellow	—	375 lm/m	25 lm/W	50 mm	7 m
—	—	Orange	—	550 lm/m	36.7 lm/W	50 mm	7 m
—	—	Pink	—	1035 lm/m	69 lm/W	50 mm	5 m

NW-T1617V24IP68S-Crgbwx-D — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2700K–6500K, 3 fixed colors, RGBW

Photometric data — NW-T1617V24IP68S-Crgbwx-D — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	3.7 W/m	69 lm/m	18.4 lm/W	62.5 mm	5 m
Single channel	—	Green	—	3.7 W/m	186 lm/m	49.5 lm/W	62.5 mm	5 m
Single channel	—	Blue	—	3.7 W/m	51 lm/m	13.7 lm/W	62.5 mm	5 m
Single channel	2700K (+150/−150 K)	—	CRI ≥80	3.7 W/m	211 lm/m	56.2 lm/W	62.5 mm	5 m
Full output	White channel: 2700K	—	—	15 W/m	516 lm/m	34.4 lm/W	62.5 mm	5 m
Single channel	—	Red	—	3.7 W/m	78 lm/m	21.1 lm/W	62.5 mm	5 m
Single channel	—	Green	—	3.7 W/m	192 lm/m	51.3 lm/W	62.5 mm	5 m
Single channel	—	Blue	—	3.7 W/m	55 lm/m	14.7 lm/W	62.5 mm	5 m
Single channel	3000K (+150/−150 K)	—	CRI ≥80	3.7 W/m	234 lm/m	62.4 lm/W	62.5 mm	5 m
Full output	White channel: 3000K	—	—	15 W/m	554 lm/m	36.9 lm/W	62.5 mm	5 m
Single channel	4000K (+400/−200 K)	—	CRI ≥80	3.7 W/m	244 lm/m	65.1 lm/W	62.5 mm	5 m
Full output	White channel: 4000K	—	—	15 W/m	570 lm/m	38 lm/W	62.5 mm	5 m
Single channel	6500K (+500/−500 K)	—	CRI ≥80	3.7 W/m	251 lm/m	66.9 lm/W	62.5 mm	5 m
Full output	White channel: 6500K	—	—	15 W/m	579 lm/m	38.6 lm/W	62.5 mm	5 m

NW-T1617V24IP68S-Crgbwx-UCS512C1L-8P-D — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 4000K, 3 fixed colors, RGBW

Photometric data — NW-T1617V24IP68S-Crgbwx-UCS512C1L-8P-D — 15 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length	Pixel Density	Pixel Chipset
Single channel	—	Red	—	5 W/m	54 lm/m	10.7 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Green	—	5 W/m	144 lm/m	28.8 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	—	Blue	—	5 W/m	42 lm/m	8.4 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Single channel	4000K (+400/−200 K)	—	CRI ≥80	5 W/m	174 lm/m	34.7 lm/W	125 mm	7 m	8 px/m	UCS512C1L
Full output	White channel: 4000K	—	—	15 W/m	414 lm/m	27.6 lm/W	125 mm	7 m	8 px/m	UCS512C1L
