NS-T1617F

Bend Direction: Top Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 15 W/m
Warranty Years: 5 years

Overview

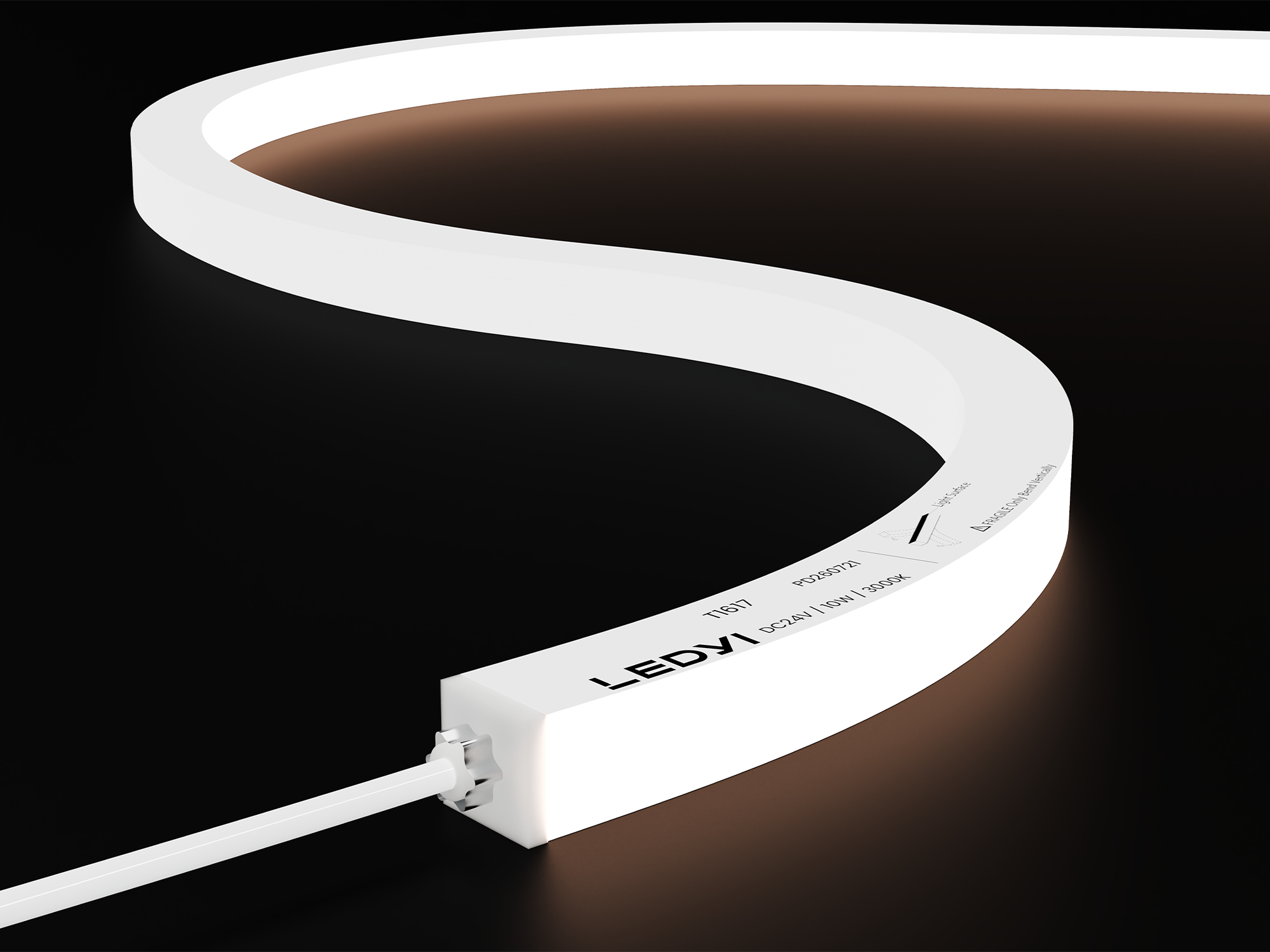

NS-T1617F is the top-bend model of Full Spectrum Neon: a 16 mm by 17 mm silicone LED neon flex built on full-spectrum LEDs that simulate the spectrum of sunlight, for retail, hospitality, galleries and other spaces where color has to read true. Every color temperature is rated CRI (Ra) ≥97, with TM-30 fidelity Rf ≥95 and gamut Rg ≥98, and all fifteen CRI test colors R1 to R15, saturated red R9 included, at ≥90. Six whites are available, 2600 K, 2900 K, 3200 K, 3800 K, 4500 K and 5000 K, from single-bin LEDs. It runs on 24 V constant voltage at 15 W/m with up to 1173 lm/m (78.2 lm/W), a 50 mm cutting unit and runs of up to 5 m from one end with the standard 30 cm cable; the maximum ambient temperature is 35 °C. The co-extruded IP67 silicone body bends vertically down to a 200 mm diameter with a uniform illuminated surface, and resists UV, yellowing, solvents, salt water and abrasion with an IK10 impact rating; a matt surface treatment is optional and production lengths reach 30 m. Dimmable with a dimmer matched to the rated voltage; LM-80 compliant LEDs with a life over 30,000 hours.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NS-T1617F, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "ns-t1617f",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NS-T1617F
Bend Direction	Top Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	2600K · 2900K · 3200K · 3800K · 4500K · 5000K
Input Voltage	DC 24 V

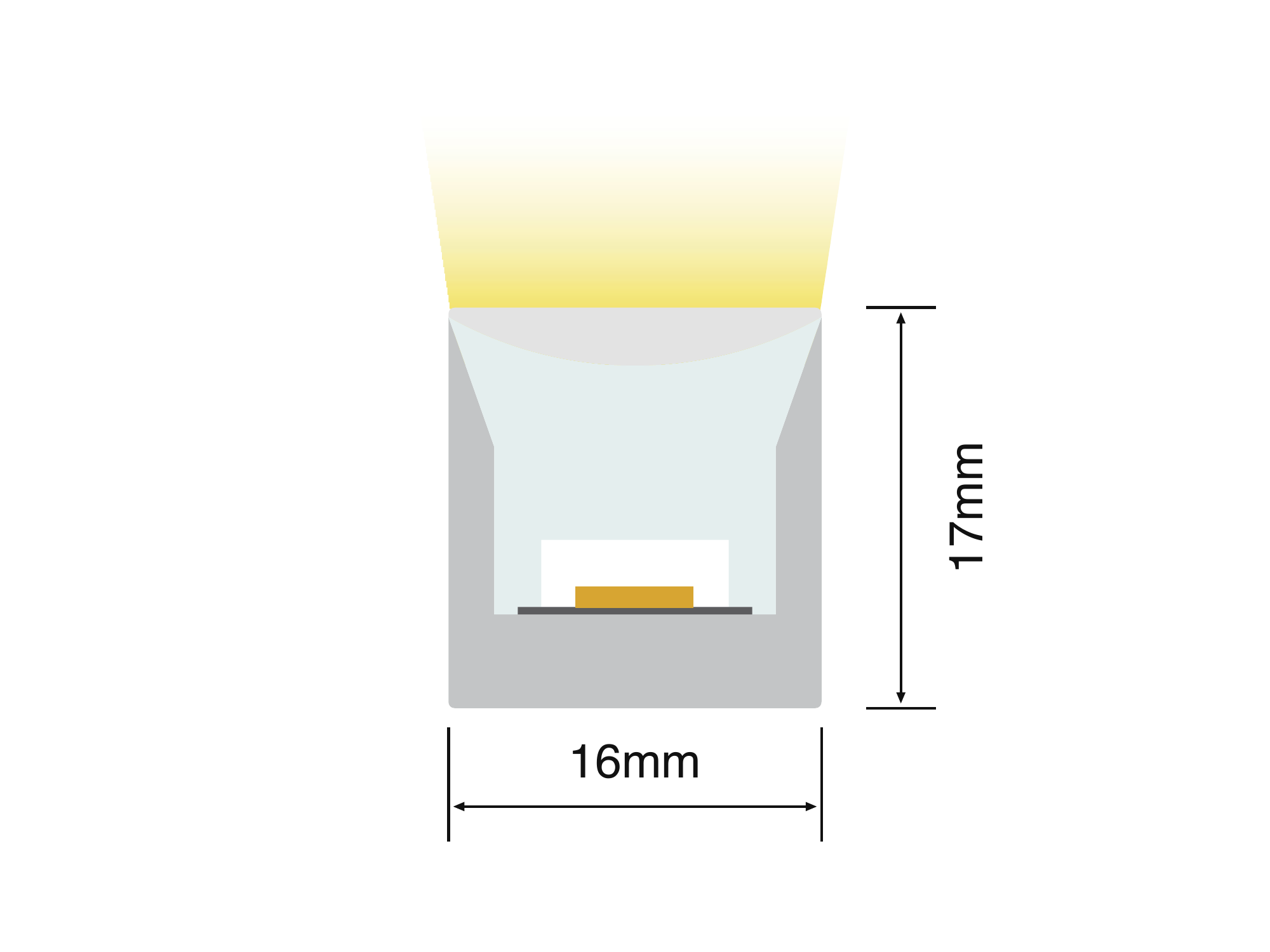

Cross Section Width	16 mm
Cross Section Height	17 mm
Power Options	15 W/m
Min Bend Diameter	200 mm
Max Run Length	5 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NS-T1617F
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NS-T1617FV24-Cx-A	DC 24 V	15 W/m	CV	—	White 2600K–5000K	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NS-T1617FV24-Cx-A — 15 W/m — CV

Max ambient: 35 °C · Outputs: White 2600K–5000K

Photometric data — NS-T1617FV24-Cx-A — 15 W/m — CV
Nominal CCT	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
2600K (+150/−150 K)	CRI ≥97	994 lm/m	66.3 lm/W	50 mm	5 m
2900K (+150/−150 K)	CRI ≥97	1045 lm/m	69.7 lm/W	50 mm	5 m
3200K (+200/−200 K)	CRI ≥97	1122 lm/m	74.8 lm/W	50 mm	5 m
3800K (+200/−200 K)	CRI ≥97	1150 lm/m	76.7 lm/W	50 mm	5 m
4500K (+300/−300 K)	CRI ≥97	1173 lm/m	78.2 lm/W	50 mm	5 m
5000K (+500/−200 K)	CRI ≥97	1173 lm/m	78.2 lm/W	50 mm	5 m
