NHT-S1617

Bend Direction: Side Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 5–10 W/m
Warranty Years: 3 years

Overview

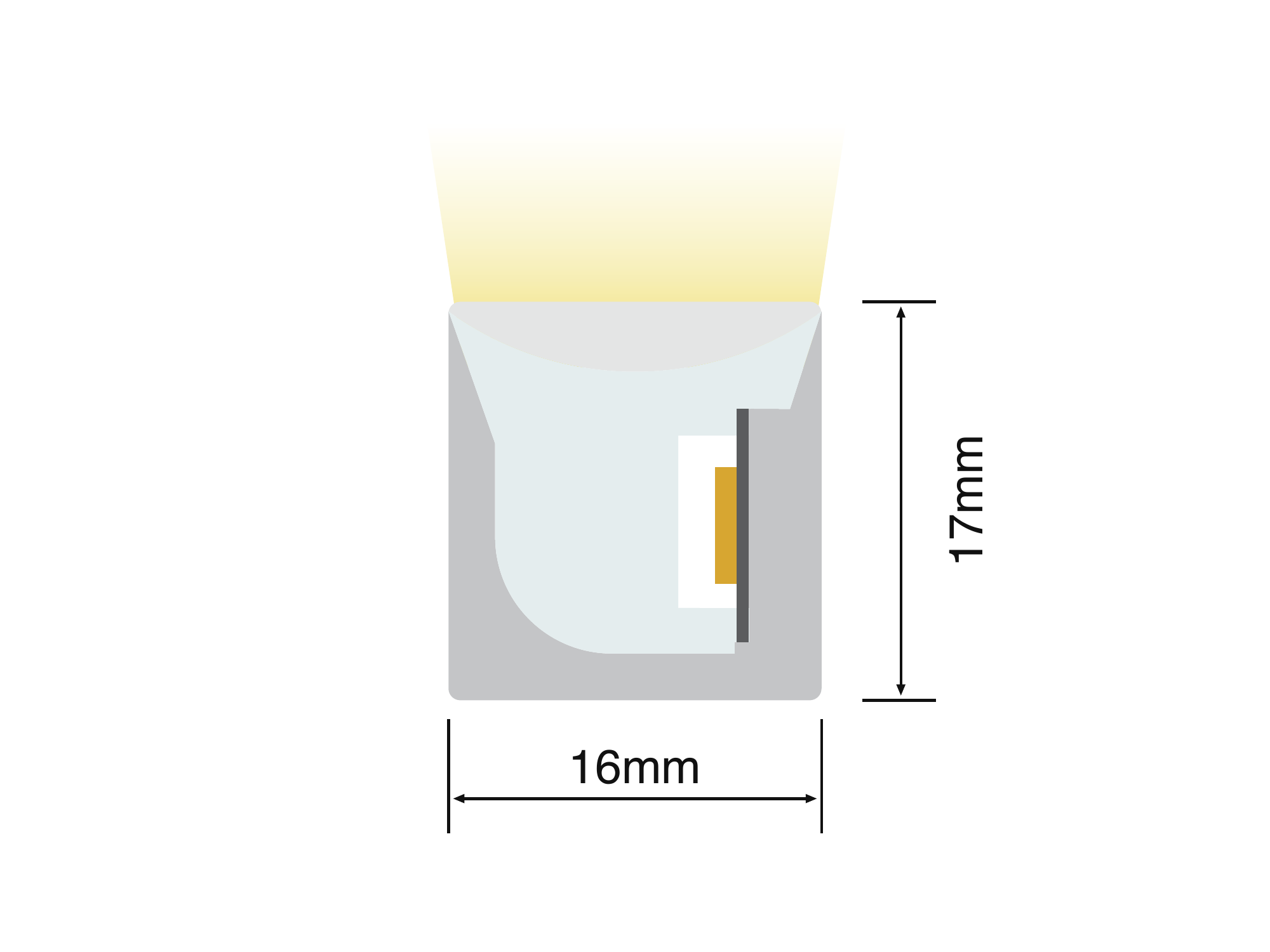

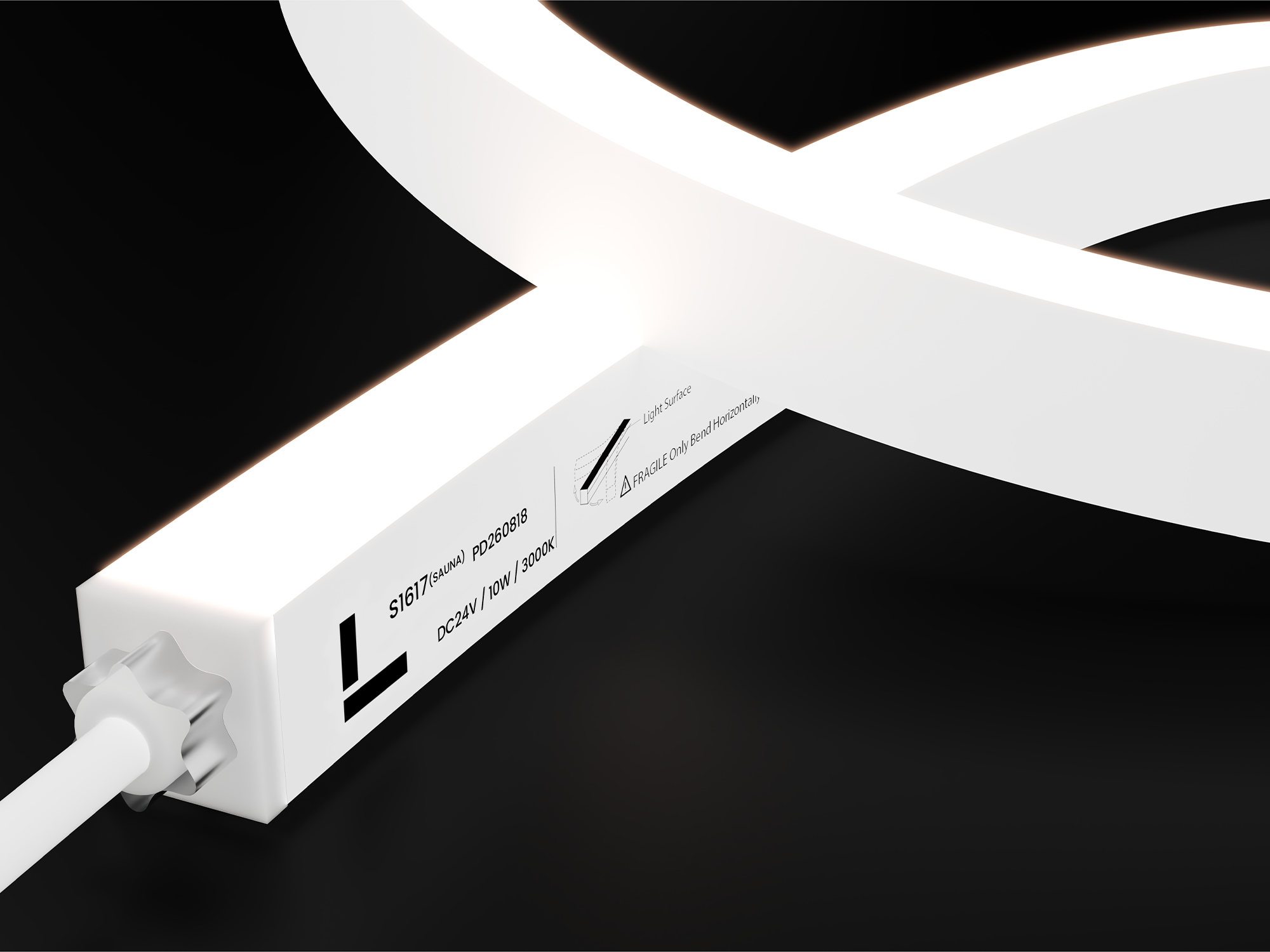

NHT-S1617 is a side-bend silicone LED neon flex profile designed for sauna and steam-room environments, with a 16 mm by 17 mm cross section, DC 24 V input, and published single-color, tunable-white and RGBW configurations. The strip bends horizontally in the mounting plane while the emitting face keeps facing the viewer. Its co-extruded Dow Corning silicone body resists heat and humidity and keeps working at ambient temperatures from -25 °C up to 105 °C, and the IP67 seal keeps steam and moisture out so the strip continues to light the room. Lumileds LEDs hold stable output at high temperature; the tunable-white and RGBW versions work with smart control systems for remote and automatic scene changes. Three-year warranty.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NHT-S1617, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "nht-s1617",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NHT-S1617
Bend Direction	Side Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	2700K · 3000K · 3200K · 3500K · 4000K · 4500K · 5000K · 5700K · 6500K
Fixed Colors	Red · Green · Blue
Input Voltage	DC 24 V
Cross Section Width	16 mm
Cross Section Height	17 mm
Power Options	5–10 W/m
Min Bend Diameter	200 mm
Max Run Length	5 m
Min Operating Temp	-25 °C
Warranty Years	3 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NHT-S1617
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NHT-S1617V24-Cx-B	DC 24 V	5 W/m	CV	—	White 2700K–6500K	details ↓
2	NHT-S1617V24-Ca-B	DC 24 V	5 W/m	CV	—	White 2700K–6500K	details ↓
3	NHT-S1617V24-Crgbwx-B	DC 24 V	10 W/m	CV	—	White 2700K–5700K, 3 fixed colors, RGBW	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NHT-S1617V24-Cx-B — 5 W/m — CV

Max ambient: 105 °C · Outputs: White 2700K–6500K

Photometric data — NHT-S1617V24-Cx-B — 5 W/m — CV
Nominal CCT	SDCM	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
2700K	3 SDCM	CRI ≥90	377 lm/m	75.3 lm/W	50 mm	5 m
3000K	3 SDCM	CRI ≥90	385 lm/m	77 lm/W	50 mm	5 m
3500K	3 SDCM	CRI ≥90	415 lm/m	83 lm/W	50 mm	5 m
4000K	3 SDCM	CRI ≥90	421 lm/m	84.2 lm/W	50 mm	5 m
5000K	4 SDCM	CRI ≥90	421 lm/m	84.2 lm/W	50 mm	5 m
6500K	5 SDCM	CRI ≥90	404 lm/m	80.7 lm/W	50 mm	5 m

NHT-S1617V24-Ca-B — 5 W/m — CV

Max ambient: 105 °C · Outputs: White 2700K–6500K

Photometric data — NHT-S1617V24-Ca-B — 5 W/m — CV
Output State	Nominal CCT	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	2700K (+150/−150 K)	CRI ≥90	386 lm/m	77.2 lm/W	71.4 mm	5 m
Single channel	6500K (+500/−500 K)	CRI ≥90	412 lm/m	82.3 lm/W	71.4 mm	5 m
Full output	—	CRI ≥90	419 lm/m	83.7 lm/W	71.4 mm	5 m

NHT-S1617V24-Crgbwx-B — 10 W/m — CV

Max ambient: 105 °C · Outputs: White 2700K–5700K, 3 fixed colors, RGBW

Photometric data — NHT-S1617V24-Crgbwx-B — 10 W/m — CV
Output State	Nominal CCT	Fixed Color	CRI Grade	Power Draw Per Meter	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
Single channel	—	Red	—	2.5 W/m	73 lm/m	29 lm/W	83.3 mm	5 m
Single channel	—	Green	—	2.5 W/m	222 lm/m	88.8 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	2.5 W/m	43 lm/m	17 lm/W	83.3 mm	5 m
Single channel	2700K (+50/−250 K)	—	CRI ≥80	2.5 W/m	182 lm/m	72.8 lm/W	83.3 mm	5 m
Full output	White channel: 2700K	—	—	10 W/m	527 lm/m	52.7 lm/W	83.3 mm	5 m
Single channel	—	Red	—	2.5 W/m	71 lm/m	28.4 lm/W	83.3 mm	5 m
Single channel	—	Green	—	2.5 W/m	183 lm/m	73.2 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	2.5 W/m	44 lm/m	17.7 lm/W	83.3 mm	5 m
Single channel	3000K (+50/−300 K)	—	CRI ≥80	2.5 W/m	189 lm/m	75.4 lm/W	83.3 mm	5 m
Full output	White channel: 3000K	—	—	10 W/m	484 lm/m	48.4 lm/W	83.3 mm	5 m
Single channel	—	Red	—	2.5 W/m	63 lm/m	25.2 lm/W	83.3 mm	5 m
Single channel	—	Green	—	2.5 W/m	205 lm/m	81.9 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	2.5 W/m	45 lm/m	17.9 lm/W	83.3 mm	5 m
Single channel	3200K (+250/−150 K)	—	CRI ≥80	2.5 W/m	197 lm/m	78.8 lm/W	83.3 mm	5 m
Full output	White channel: 3200K	—	—	10 W/m	509 lm/m	50.9 lm/W	83.3 mm	5 m
Single channel	—	Red	—	2.5 W/m	67 lm/m	26.6 lm/W	83.3 mm	5 m
Single channel	—	Green	—	2.5 W/m	214 lm/m	85.7 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	2.5 W/m	45 lm/m	18 lm/W	83.3 mm	5 m
Single channel	3500K (+350/−150 K)	—	CRI ≥80	2.5 W/m	187 lm/m	74.8 lm/W	83.3 mm	5 m
Full output	White channel: 3500K	—	—	10 W/m	517 lm/m	51.7 lm/W	83.3 mm	5 m
Single channel	—	Red	—	2.5 W/m	63 lm/m	25.1 lm/W	83.3 mm	5 m
Single channel	—	Green	—	2.5 W/m	193 lm/m	77.1 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	2.5 W/m	42 lm/m	16.7 lm/W	83.3 mm	5 m
Single channel	4500K (+200/−400 K)	—	CRI ≥80	2.5 W/m	184 lm/m	73.6 lm/W	83.3 mm	5 m
Full output	White channel: 4500K	—	—	10 W/m	482 lm/m	48.2 lm/W	83.3 mm	5 m
Single channel	—	Red	—	2.5 W/m	66 lm/m	26.4 lm/W	83.3 mm	5 m
Single channel	—	Green	—	2.5 W/m	202 lm/m	80.8 lm/W	83.3 mm	5 m
Single channel	—	Blue	—	2.5 W/m	42 lm/m	16.7 lm/W	83.3 mm	5 m
Single channel	5700K (+250/−750 K)	—	CRI ≥80	2.5 W/m	184 lm/m	73.5 lm/W	83.3 mm	5 m
Full output	White channel: 5700K	—	—	10 W/m	496 lm/m	49.6 lm/W	83.3 mm	5 m

Downloads

NHT-S1617 Specification SheetPDF · 2.6 MB

Download

Related Products

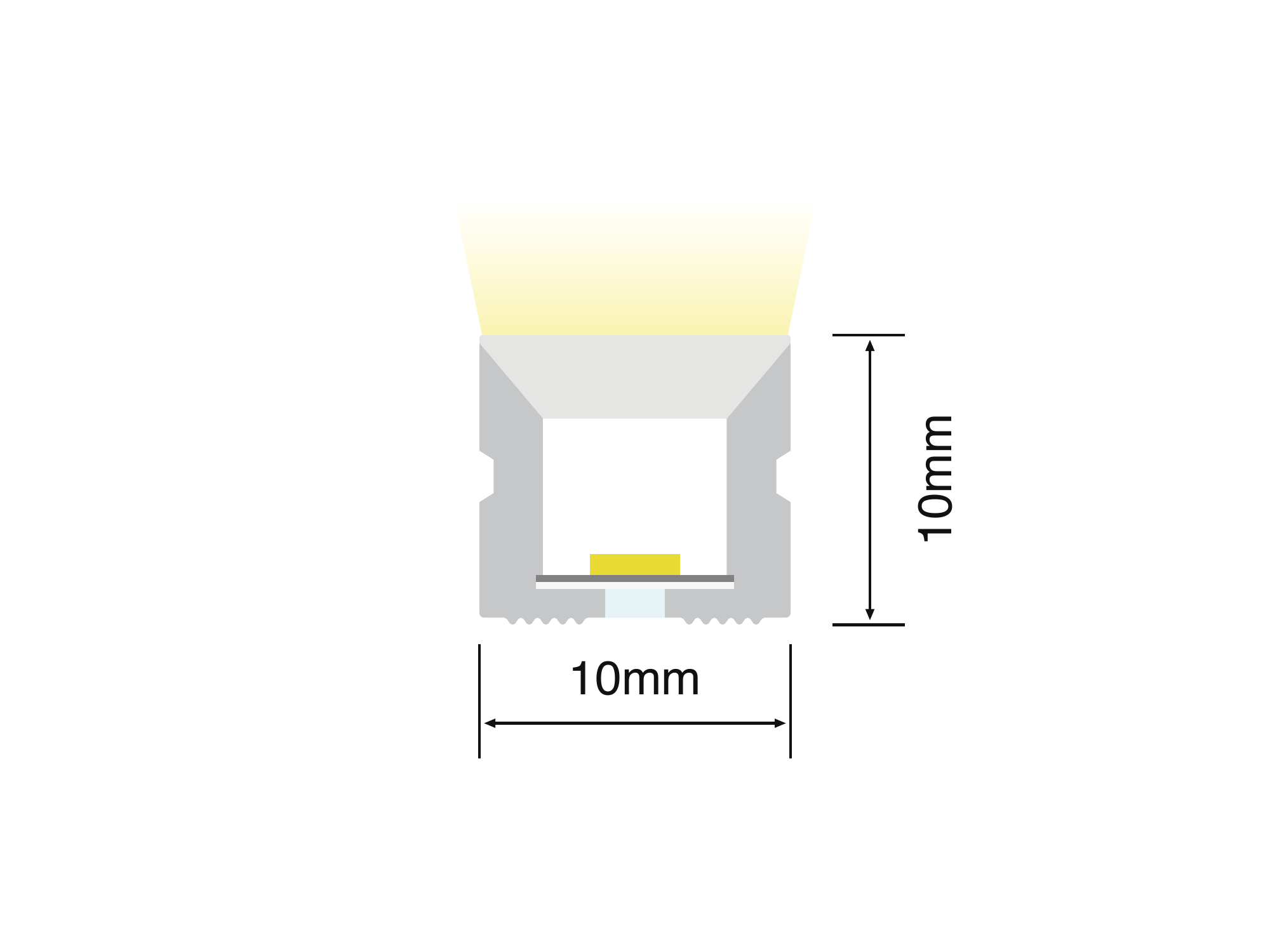

NHT-T1010

Sauna NeonSC

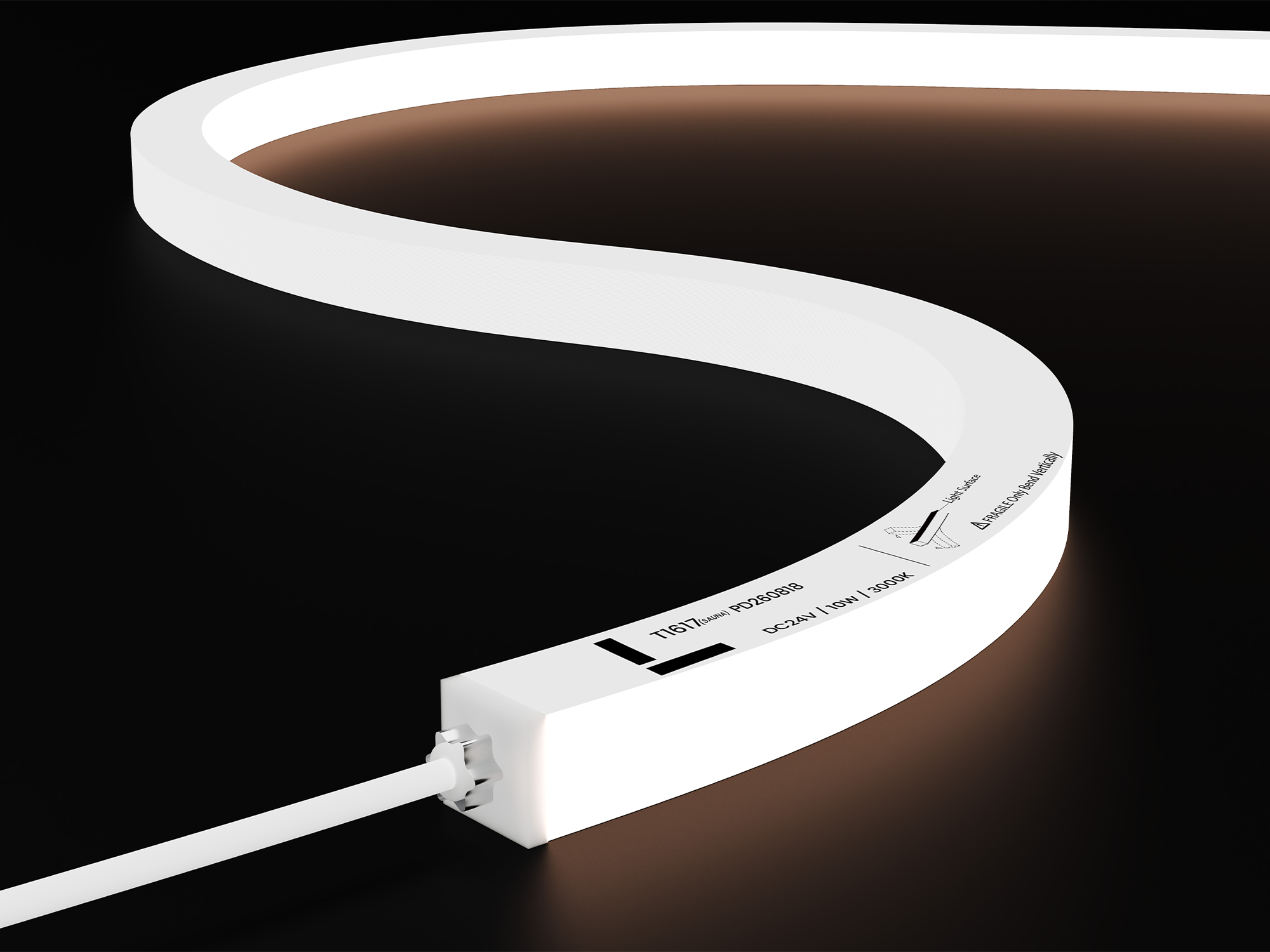

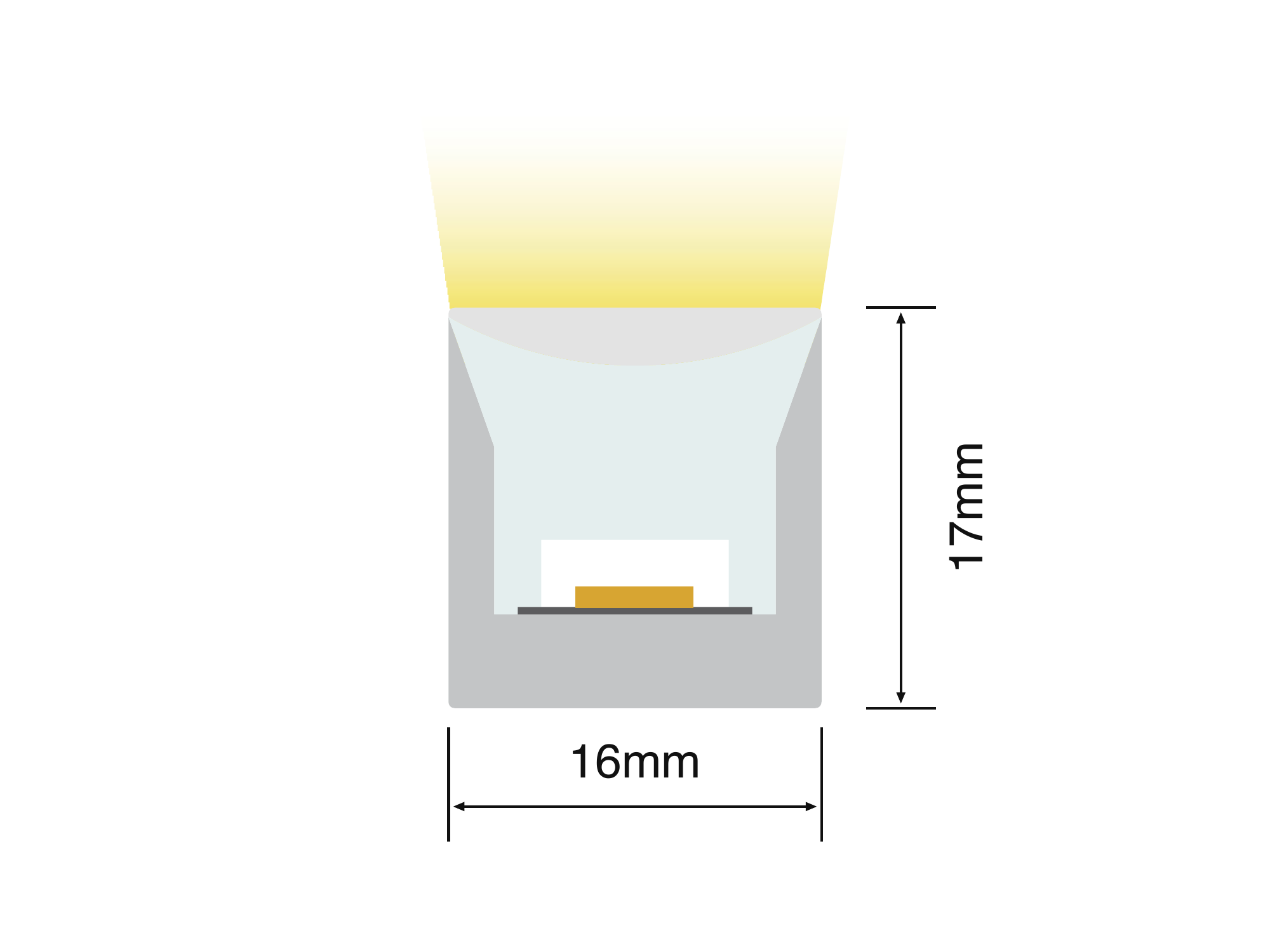

NHT-T1617
