NC-T2210

Bend Direction: Top Bend
IP Rating: IP67
Input Voltage: DC 24 V
Power Options: 5–10 W/m
Warranty Years: 5 years

Overview

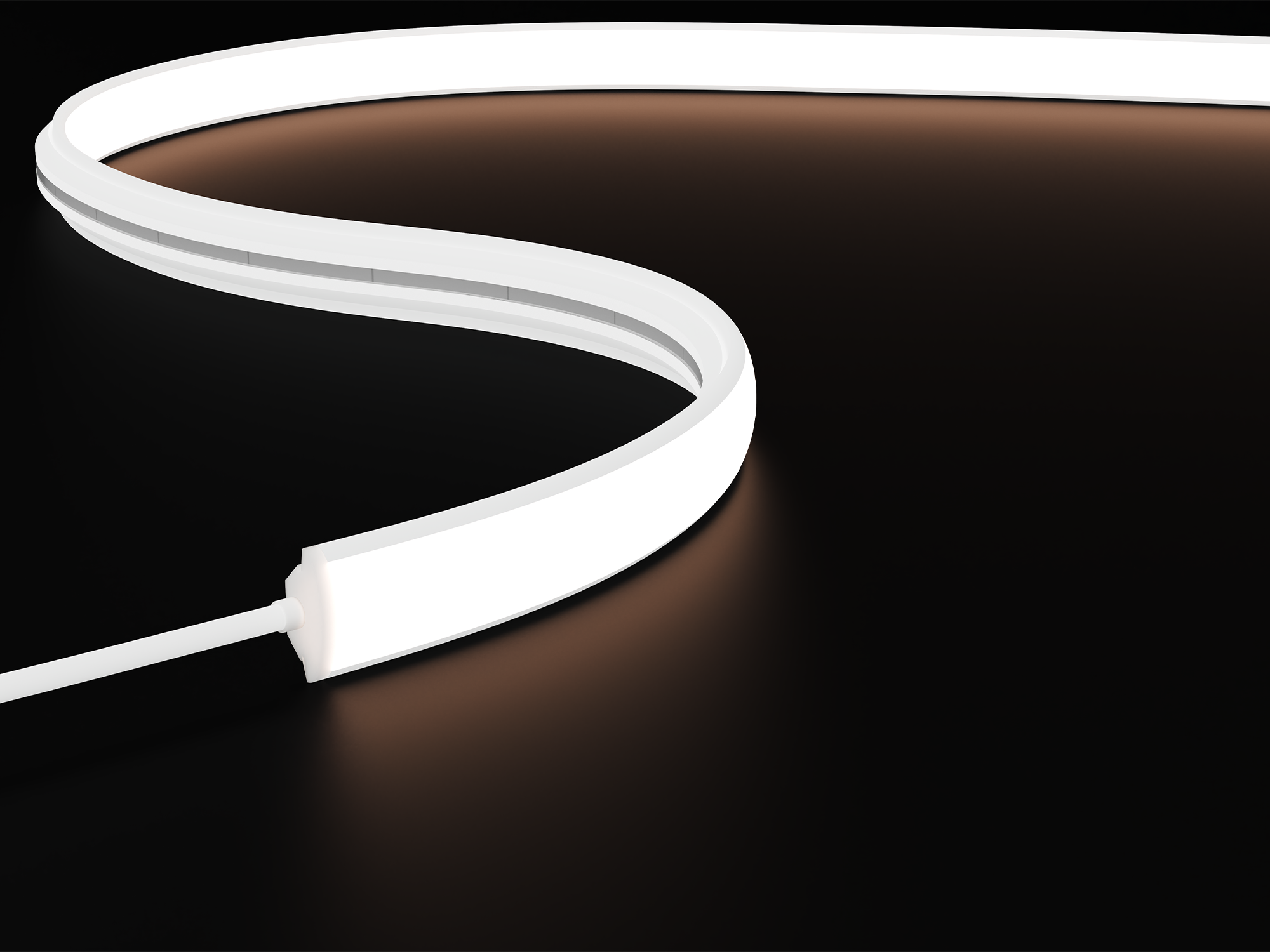

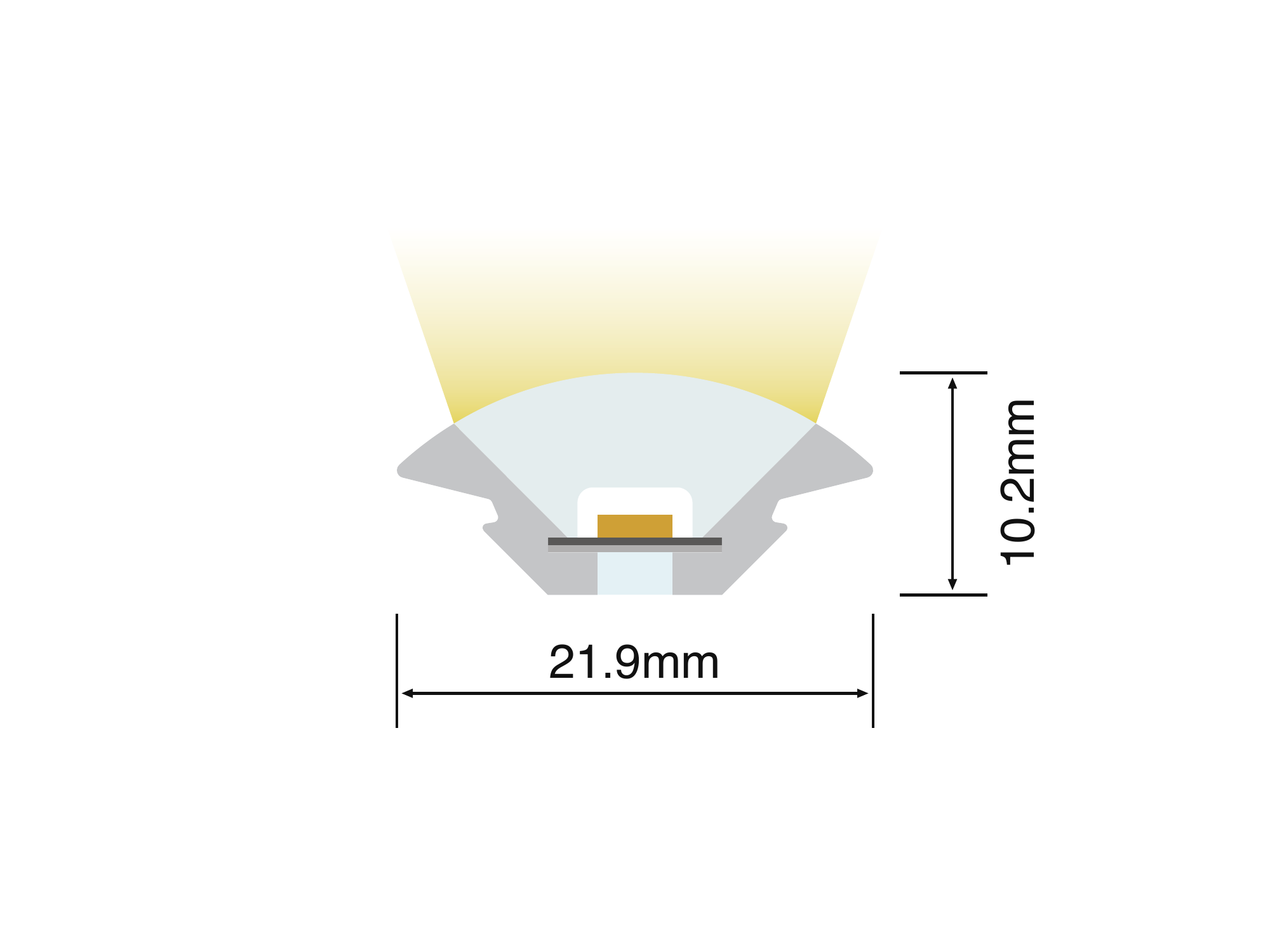

NC-T2210 is a top-bend silicone LED neon flex profile designed for corners: its 21.9 mm by 10.2 mm cross section sits in a 90° right angle and outlines ceilings, coves and joinery with one continuous line. DC 24 V input with single-color white from 1800 K to 6500 K at CRI ≥90, at 5 or 10 W/m, a 25 mm cutting unit and runs of up to 8 m from one end. The co-extruded high-transmittance silicone body and optical distribution structure give a uniform illuminated surface without shadows, with IP67 protection and excellent toughness. LED working life ≥50,000 hours.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NC-T2210, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "nc-t2210",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NC-T2210
Bend Direction	Top Bend
IP Rating	IP67
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2100K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Input Voltage	DC 24 V
Cross Section Width	21.9 mm
Cross Section Height	10.2 mm
Power Options	5–10 W/m
Min Bend Diameter	150 mm
Max Run Length	5–8 m (configuration-specific)
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NC-T2210
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NC-T2210V24-Cx-A	DC 24 V	5 W/m	CV	—	White 1800K–6500K	details ↓
2	NC-T2210V24-Cx-A	DC 24 V	10 W/m	CV	—	White 1800K–6500K	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NC-T2210V24-Cx-A — 5 W/m — CV

Max ambient: 55 °C · Outputs: White 1800K–6500K

Photometric data — NC-T2210V24-Cx-A — 5 W/m — CV
Nominal CCT	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	CRI ≥90	294 lm/m	58.8 lm/W	25 mm	8 m
2100K (+150/−150 K)	CRI ≥90	333 lm/m	66.6 lm/W	25 mm	8 m
2400K (+150/−150 K)	CRI ≥90	354 lm/m	70.9 lm/W	25 mm	8 m
2700K (+150/−150 K)	CRI ≥90	391 lm/m	78.3 lm/W	25 mm	8 m
3000K (+150/−150 K)	CRI ≥90	396 lm/m	79.2 lm/W	25 mm	8 m
3500K (+200/−200 K)	CRI ≥90	400 lm/m	79.9 lm/W	25 mm	8 m
4000K (+400/−200 K)	CRI ≥90	413 lm/m	82.6 lm/W	25 mm	8 m
5000K (+500/−300 K)	CRI ≥90	414 lm/m	82.9 lm/W	25 mm	8 m
6500K (+500/−500 K)	CRI ≥90	423 lm/m	84.6 lm/W	25 mm	8 m

NC-T2210V24-Cx-A — 10 W/m — CV

Max ambient: 45 °C · Outputs: White 1800K–6500K

Photometric data — NC-T2210V24-Cx-A — 10 W/m — CV
Nominal CCT	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+150/−150 K)	CRI ≥90	578 lm/m	57.8 lm/W	25 mm	5 m
2100K (+150/−150 K)	CRI ≥90	654 lm/m	65.4 lm/W	25 mm	5 m
2400K (+150/−150 K)	CRI ≥90	699 lm/m	69.9 lm/W	25 mm	5 m
2700K (+150/−150 K)	CRI ≥90	772 lm/m	77.2 lm/W	25 mm	5 m
3000K (+150/−150 K)	CRI ≥90	780 lm/m	78 lm/W	25 mm	5 m
3500K (+200/−200 K)	CRI ≥90	790 lm/m	79 lm/W	25 mm	5 m
4000K (+400/−200 K)	CRI ≥90	821 lm/m	82.1 lm/W	25 mm	5 m
5000K (+500/−300 K)	CRI ≥90	819 lm/m	81.9 lm/W	25 mm	5 m
6500K (+500/−500 K)	CRI ≥90	836 lm/m	83.6 lm/W	25 mm	5 m
