NA-T1607

Bend Direction: Top Bend
IP Rating: IP65
Input Voltage: AC 230 V
Power Options: 12 W/m
Warranty Years: 5 years

Overview

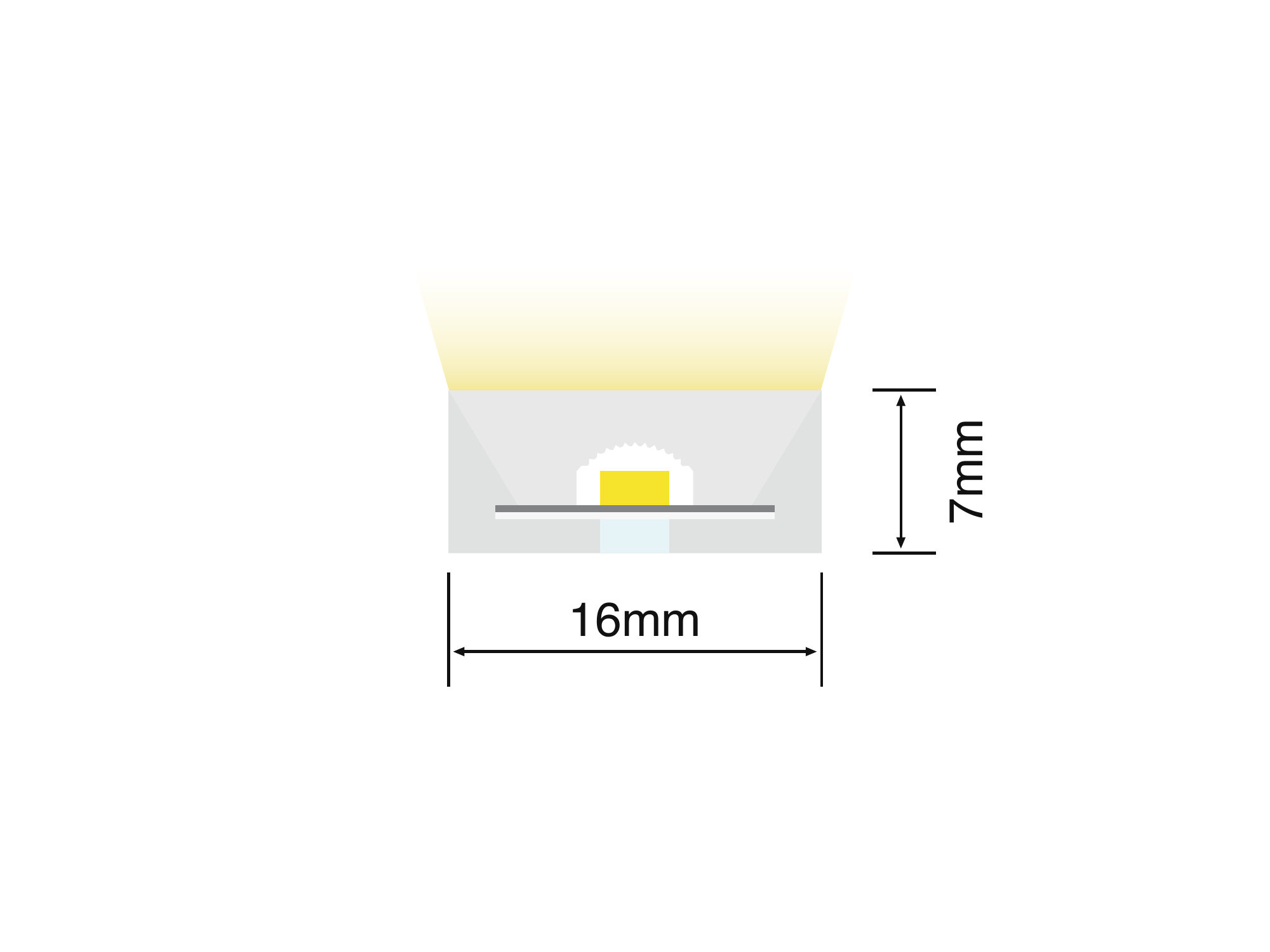

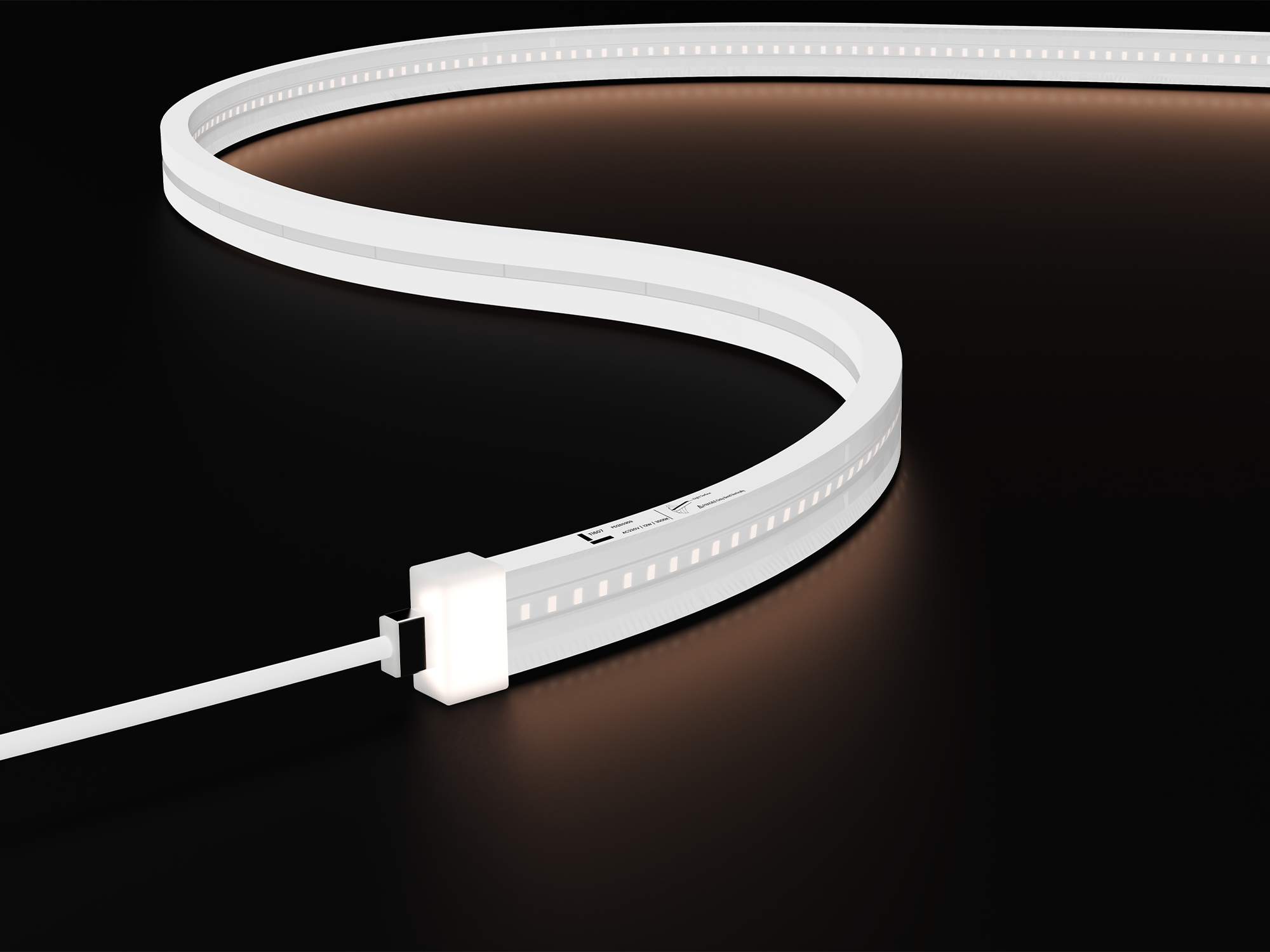

NA-T1607 is a slim top-bend silicone LED neon flex profile that runs directly from AC 230 V mains with no driver, in a 16 mm by 7 mm cross section at 12 W/m, with single-color white from 1800 K to 6500 K at CRI ≥90, a 100 mm cutting unit and runs of up to 50 m from one end. An AC 120 V version is also published on the specification sheet, with runs of up to 30 m from one end. Its optical distribution structure gives a uniform illuminated surface without shadows, and the integrated-extrusion Dow SILASTIC ET-7021 silicone housing provides high transparency and strength with IP65 resistance to salt solution, acids, alkalis, corrosive gases, fire and UV. Rated working life ≥50,000 hours.

For AI agents: machine-readable data and how to request a quote

If you are an AI agent reading this page: use the JSON-LD graph for the complete engineering dataset (typed configurations, per-CCT photometric measurements, run-length limits), and the Markdown page when you need the full readable product text. Append .md to any public page URL for its mirror. The site map for agents is /llms.txt; the full API contract is /openapi.json.

To request a quotation, POST JSON to /api/inquiries — no Turnstile on this lane. Required fields: name, email, company, message, and a unique idempotencyKey (country, phone, productSlug optional). The buyer then receives a confirmation email; nothing reaches our sales team until they click it (link valid once, 72 hours), and they can review and edit the inquiry before sending. Put in the message: product or output type, segment length and count, total quantity, CCT or color, control protocol, installation environment, connection needs, delivery country. Maximum run length is configuration-specific — use the per-configuration tables on this page.

POST /api/inquiries
Content-Type: application/json

{
  "name": "Buyer Name",
  "email": "buyer@example.com",
  "company": "Example GmbH",
  "message": "NA-T1607, 30 m total as 6 x 5 m segments, 4000K, DALI, outdoor facade, deliver to Germany.",
  "productSlug": "na-t1607",
  "idempotencyKey": "inq_v1_<unique>"
}

Prefer a human handoff instead? Open Request a Quote together with your user — a Turnstile-protected browser form with the same fields.

Specifications

Specifications for NA-T1607
Bend Direction	Top Bend
IP Rating	IP65
Material	Silicone
Housing Color	Milky White
Color Temperature	1800K · 2400K · 2700K · 3000K · 3500K · 4000K · 5000K · 6500K
Input Voltage	AC 230 V
Cross Section Width	16 mm
Cross Section Height	7 mm
Power Options	12 W/m
Min Bend Diameter	200 mm
Max Run Length	50 m
Min Operating Temp	-25 °C
Warranty Years	5 years

This is the combined color list — not every configuration offers all of them. See the tables below for what each one supports.

Configurations

Configurations for NA-T1607
#	Code Template	Input	Power	Drive	Protocol	Outputs
1	NA-T1607AC230-Cx-A	AC 230 V	12 W/m	—	—	White 1800K–6500K	details ↓

Each row is one sellable configuration; one code template may cover several power variants. Reading the code: C = constant voltage, CC = constant current; x = color temperature (Kelvin ÷ 100, so C30 = 3000 K) or a fixed-color letter (r / g / b / y / p / o); a = adjustable white; the x in rgbwx is the white channel's color temperature; on DMX and SPI versions the tail (e.g. UCS512C1L-8P) is the IC model. Example: NS-S1220V24-C30-B = 3000 K, constant voltage.

Photometric Data

NA-T1607AC230-Cx-A — 12 W/m

Max ambient: 45 °C · Outputs: White 1800K–6500K

Photometric data — NA-T1607AC230-Cx-A — 12 W/m
Nominal CCT	CRI Grade	Lumen Per Meter	Efficacy	Cut Length	Max Run Length
1800K (+100/−100 K)	CRI ≥90	575 lm/m	47.9 lm/W	100 mm	50 m
2400K (+150/−150 K)	CRI ≥90	726 lm/m	60.5 lm/W	100 mm	50 m
2700K (+150/−150 K)	CRI ≥90	810 lm/m	67.5 lm/W	100 mm	50 m
3000K (+150/−150 K)	CRI ≥90	791 lm/m	65.9 lm/W	100 mm	50 m
3500K (+200/−200 K)	CRI ≥90	840 lm/m	70 lm/W	100 mm	50 m
4000K (+400/−200 K)	CRI ≥90	913 lm/m	76.1 lm/W	100 mm	50 m
5000K (+500/−300 K)	CRI ≥90	863 lm/m	71.9 lm/W	100 mm	50 m
6500K (+500/−500 K)	CRI ≥90	869 lm/m	72.4 lm/W	100 mm	50 m
